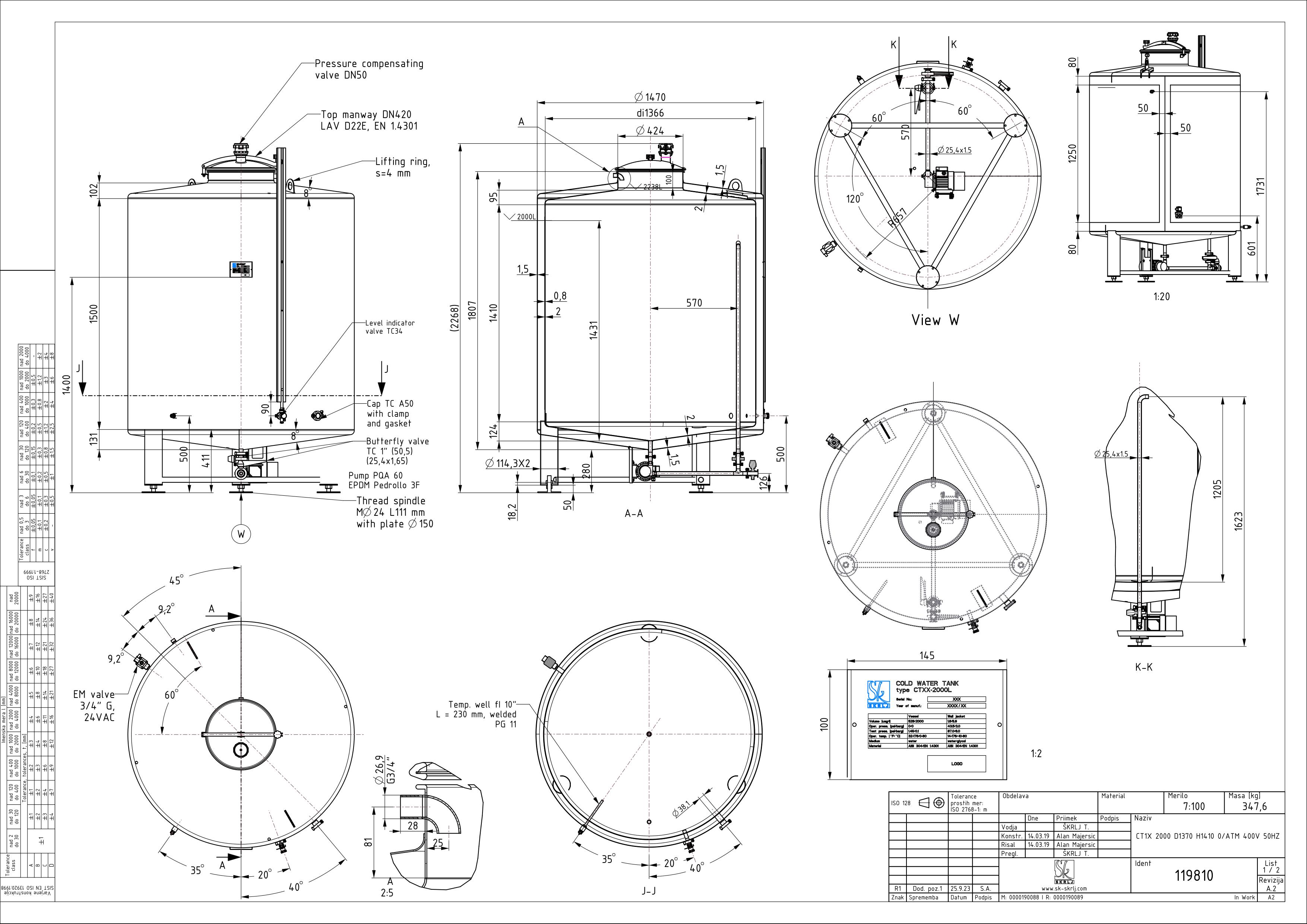

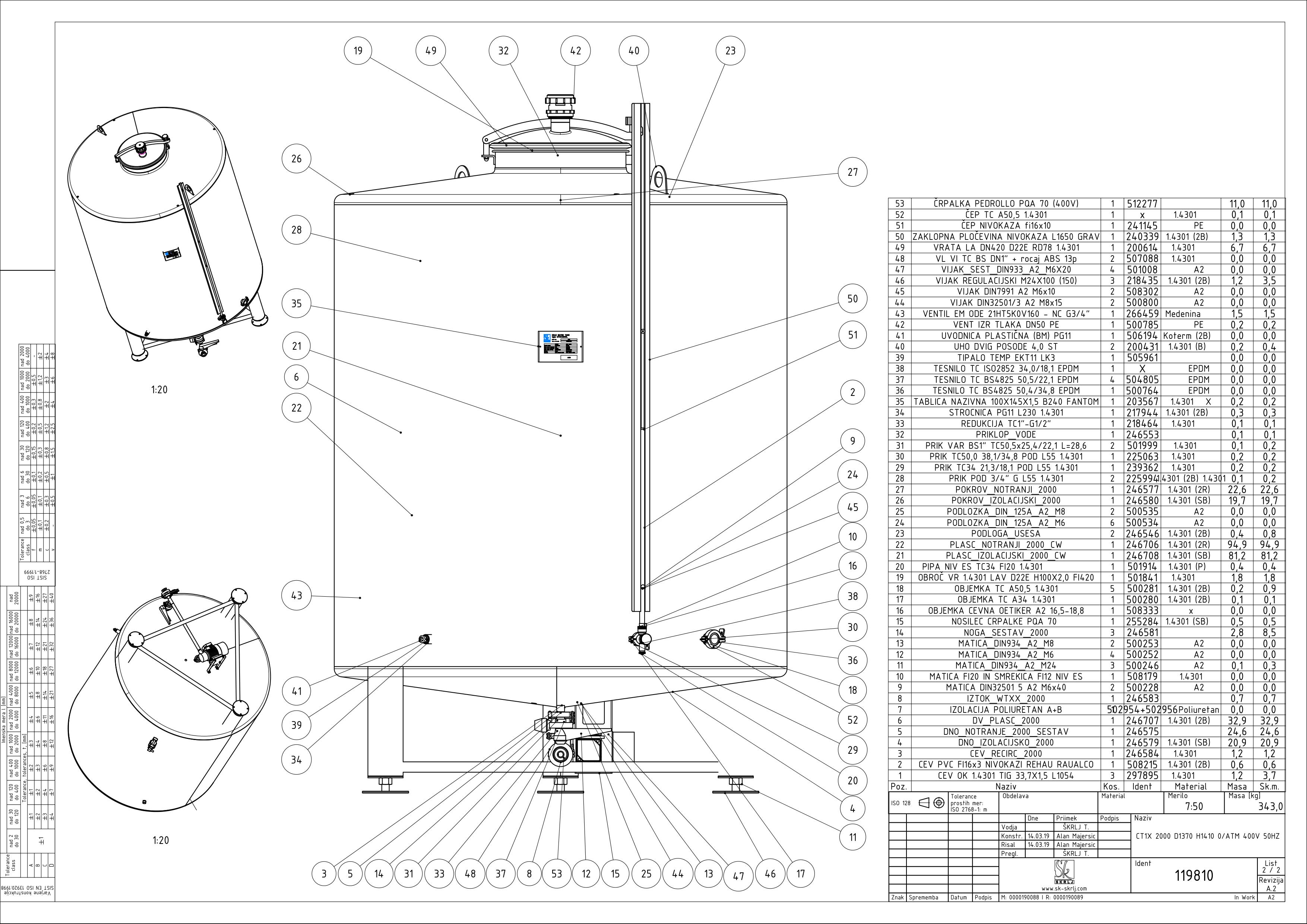

Cold water tank with double jacket
CT1X 2000 D1370 H1410 0/ATM
Material: 119810
Nominal volume in L: 2000
Internal diameter in mm: 1370
External diameter [mm]: 1470
Height H in mm: 1410
Height Z in mm: 2270
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
Supply voltage: 400V 50Hz
Input power: 0,55 KW
