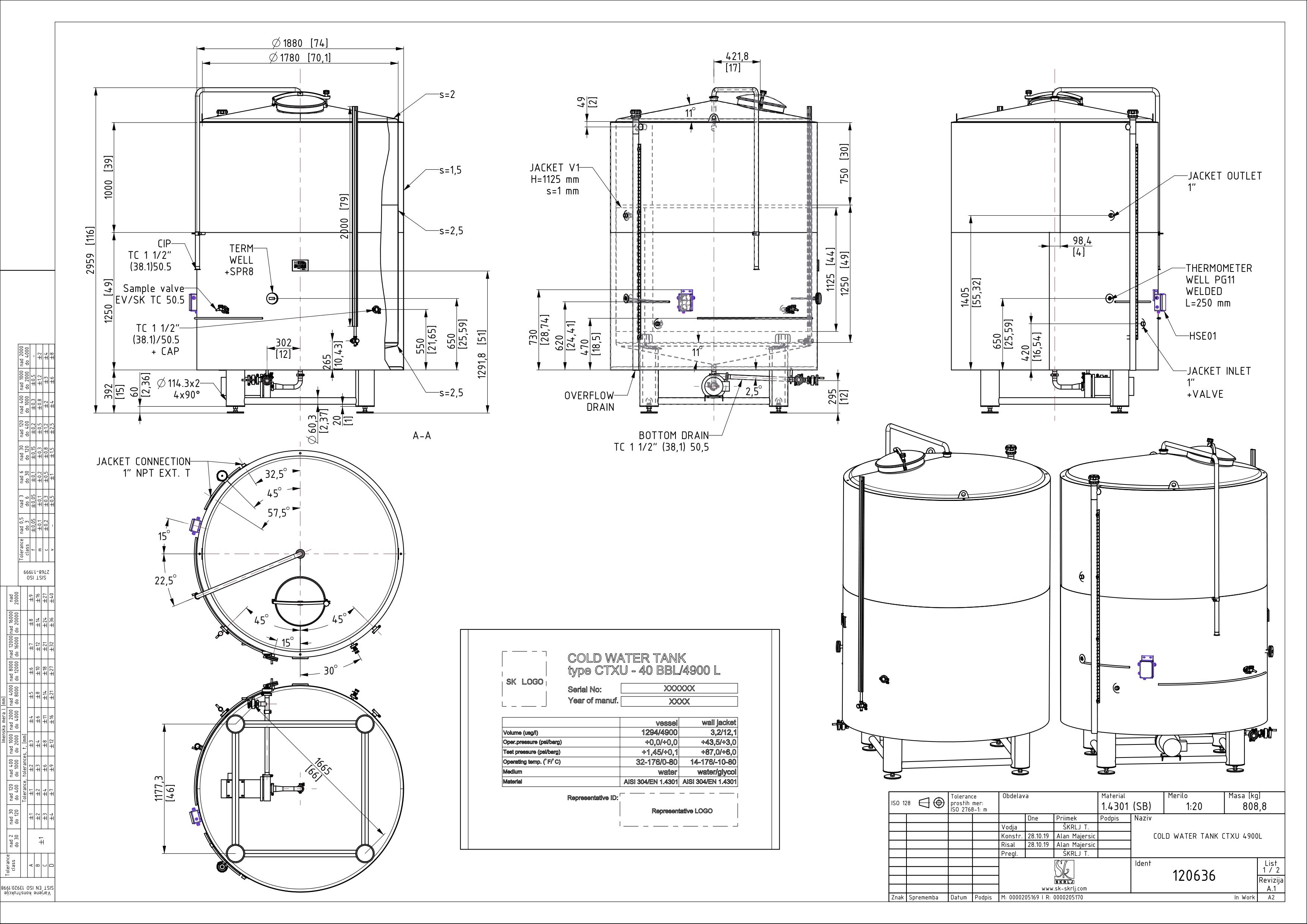

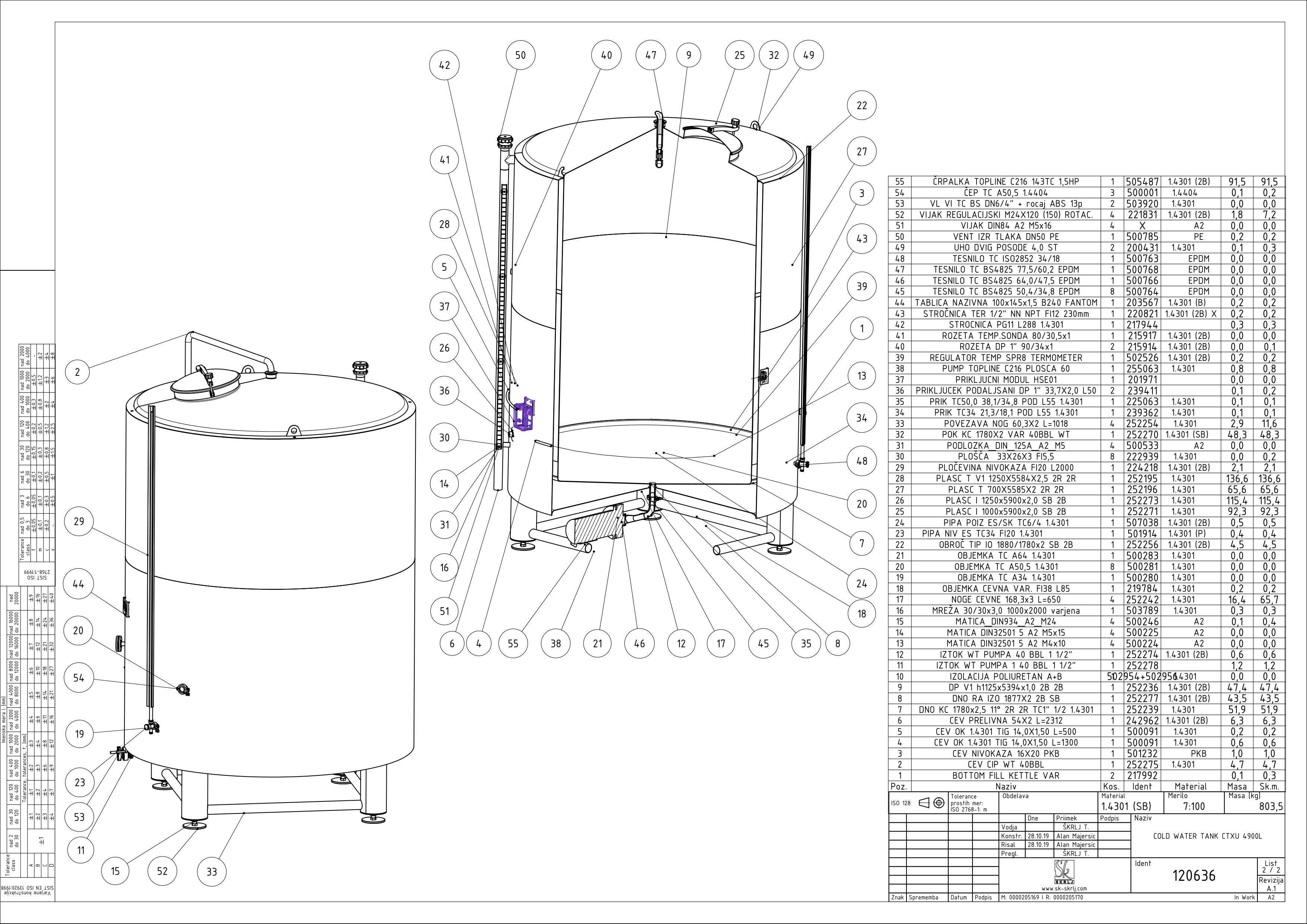

Cold water tank
CTXX 4900/40 D1780 H2000 0/ATM
Material: 120636
Nominal volume in L: 4900
Geometrical volume [l]: 5340
Nominal volume [bbl]: 40
Internal diameter in mm: 1780
External diameter [mm]: 1880
Height H in mm: 2000
Height Z in mm: 2900
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
