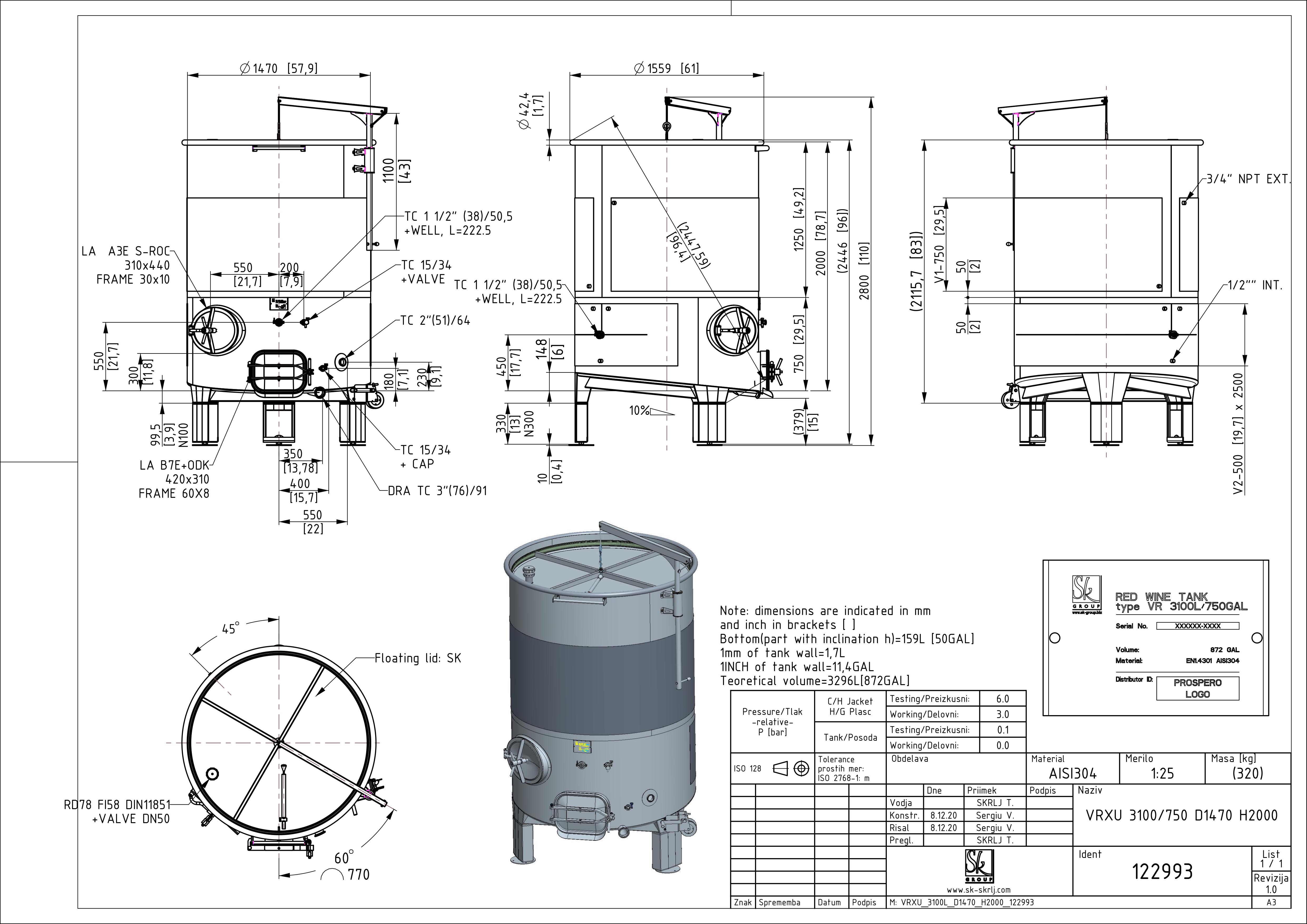

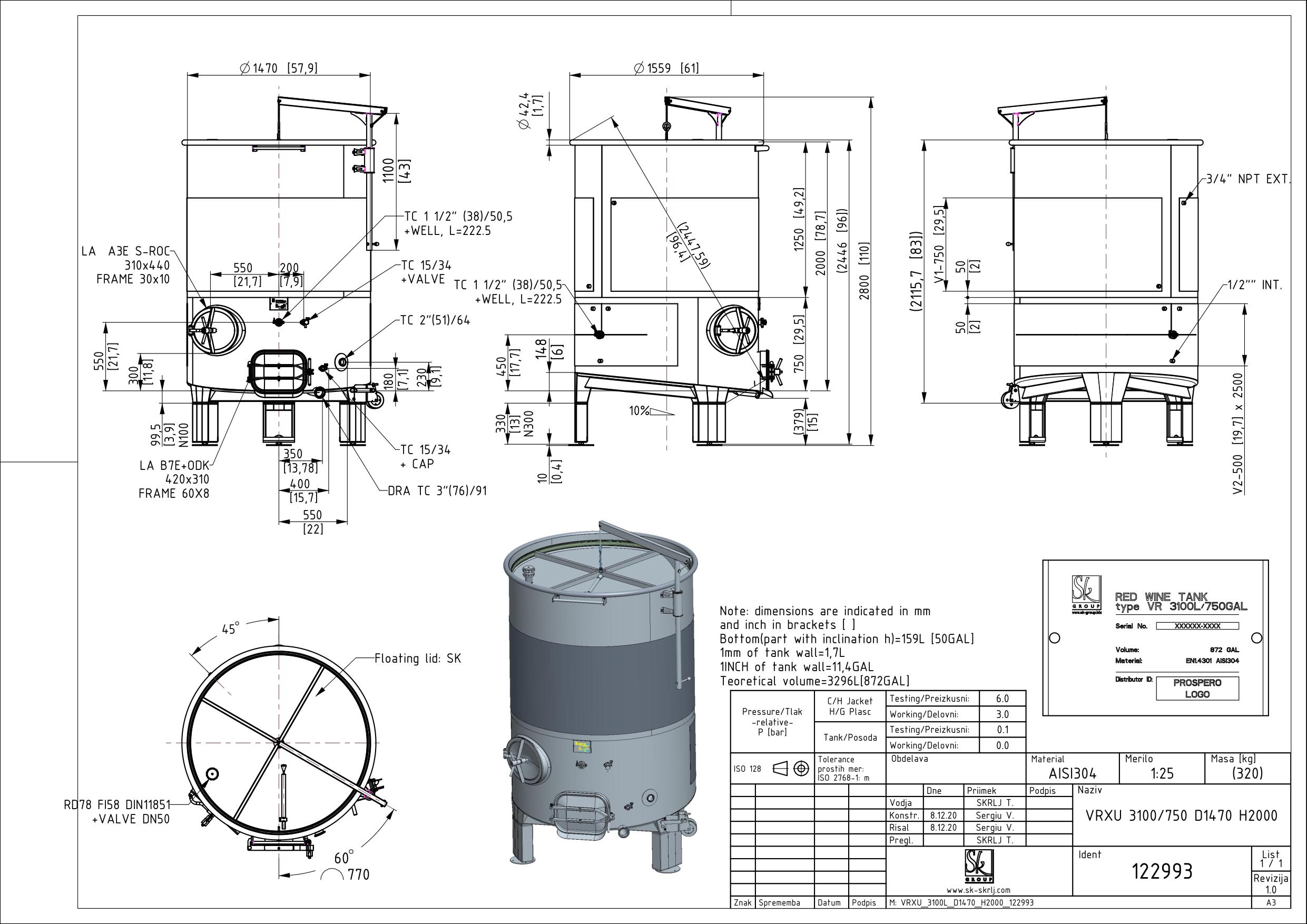

Variable capacity red wine tank
VRXU 3100/750 D1470 H2000 0/ATM PR V2
Material: 122993
Customer project label: V2
Standard: PR
Nominal volume in L: 3100
Geometrical volume [l]: 3296
Nominal volume [US gal]: 750
Geometrical volume [US gal]: 872
Internal diameter in mm: 1470
Height H in mm: 2000
Height Z in mm: 2796
Internal diameter [in]: 57,9
Height H [in]: 78,7
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
