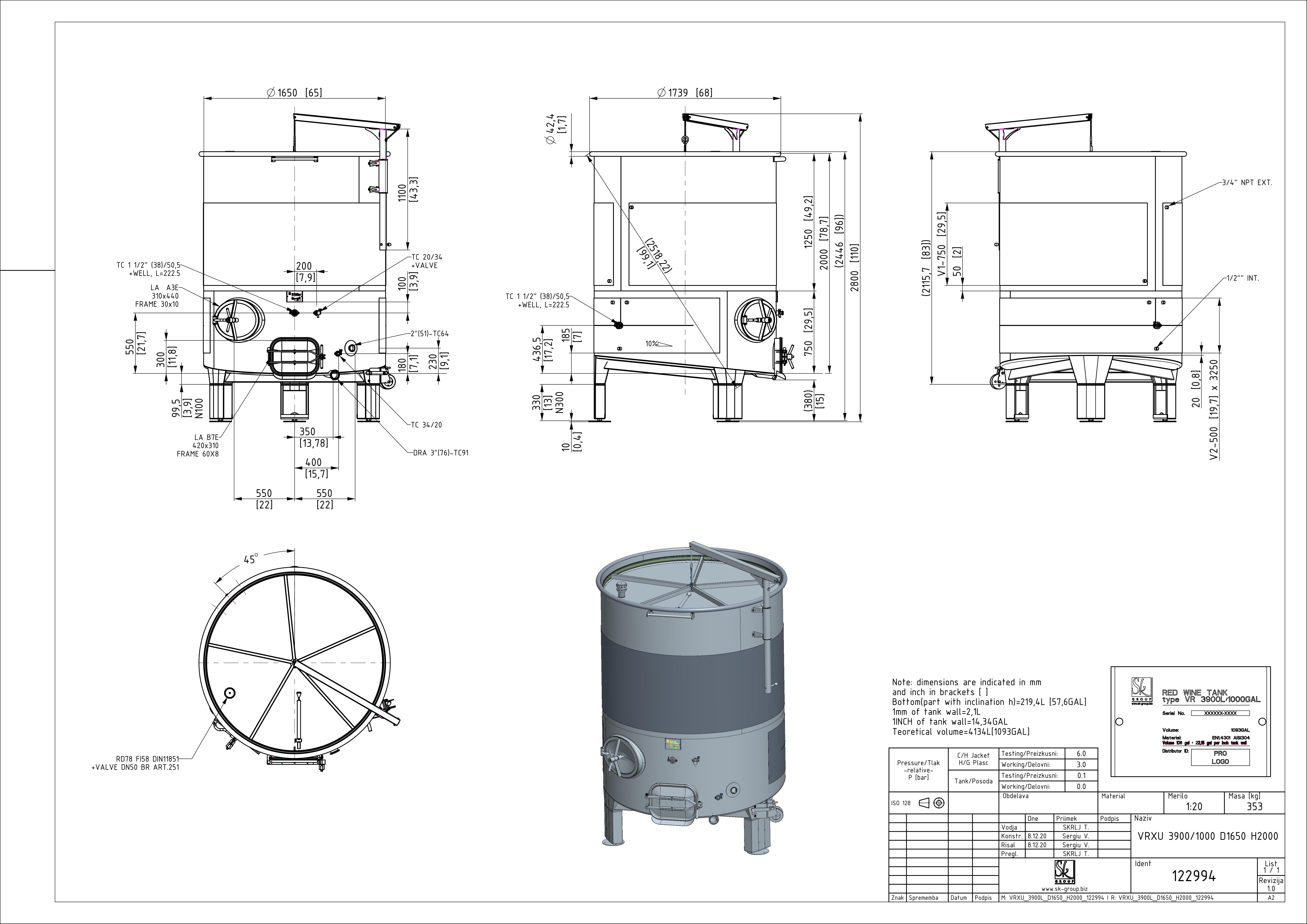

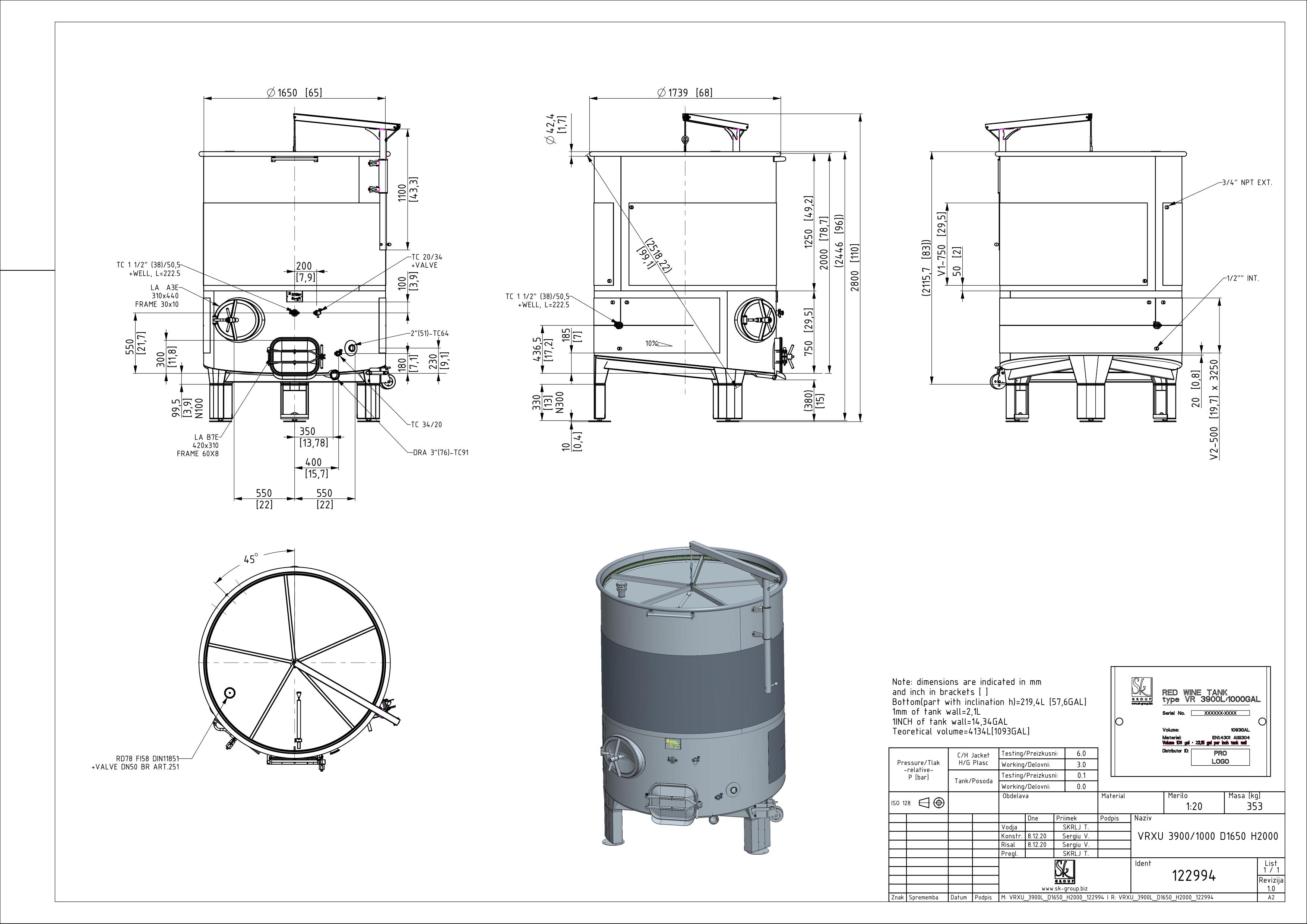

Variable capacity red wine tank
VRXU 3900/1000 D1650 H2000 0/ATM PR V2
Material: 122994
Customer project label: V2
Standard: PR
Nominal volume in L: 3900
Geometrical volume [l]: 4134
Nominal volume [US gal]: 1000
Geometrical volume [US gal]: 1093
Internal diameter in mm: 1650
Height H in mm: 2000
Height Z in mm: 2803
Internal diameter [in]: 65
Height H [in]: 78,7
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
