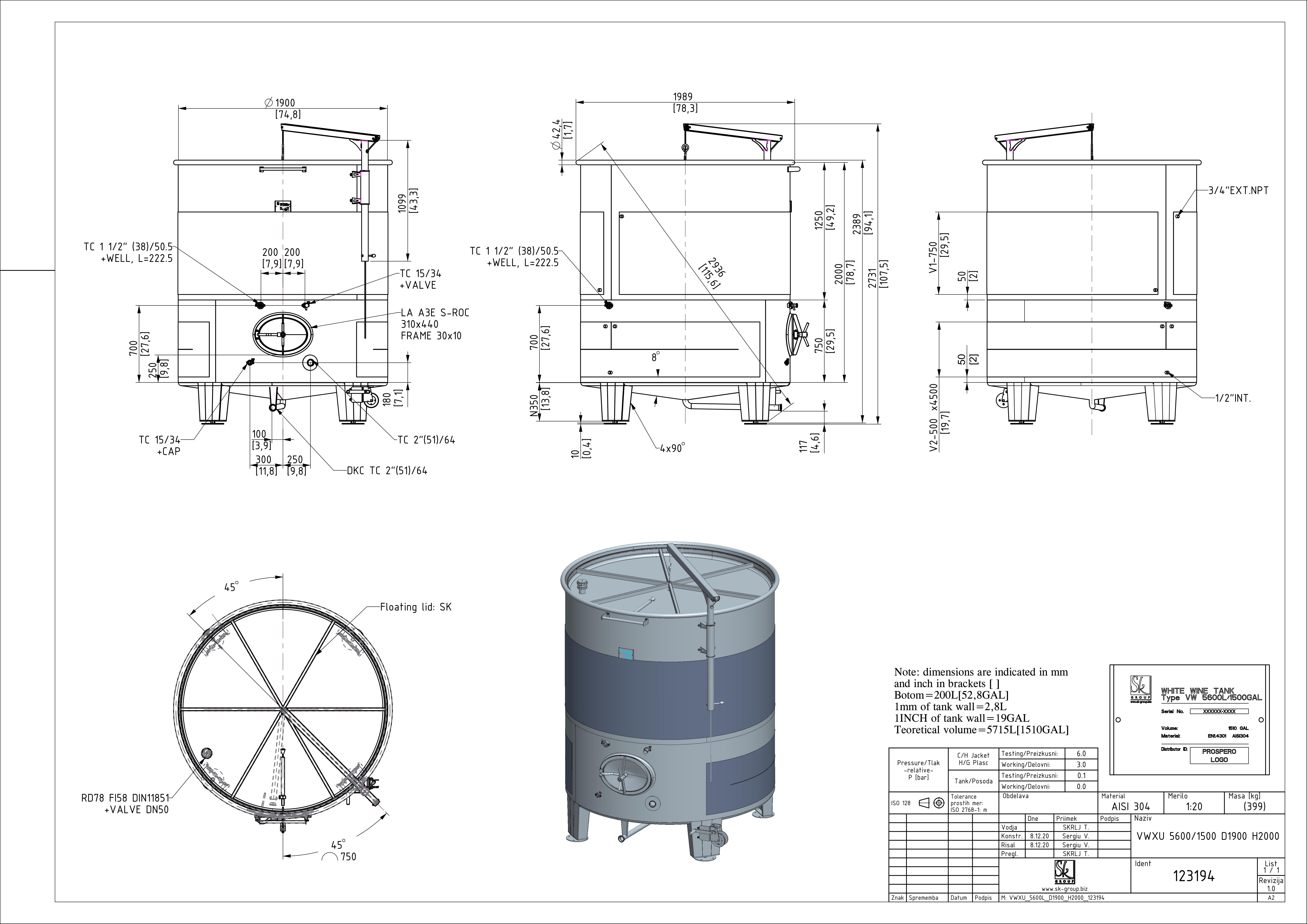

Variable capacity white wine tank
VWXU 5600/1500 D1900 H2000 0/ATM PR V2
Material: 123194
Customer project label: V2
Standard: PR
Nominal volume in L: 5600
Geometrical volume [l]: 5715
Nominal volume [US gal]: 1500
Geometrical volume [US gal]: 1510
Internal diameter in mm: 1900
Height H in mm: 2000
Height Z in mm: 2767
Internal diameter [in]: 74,8
Height H [in]: 78,7
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
