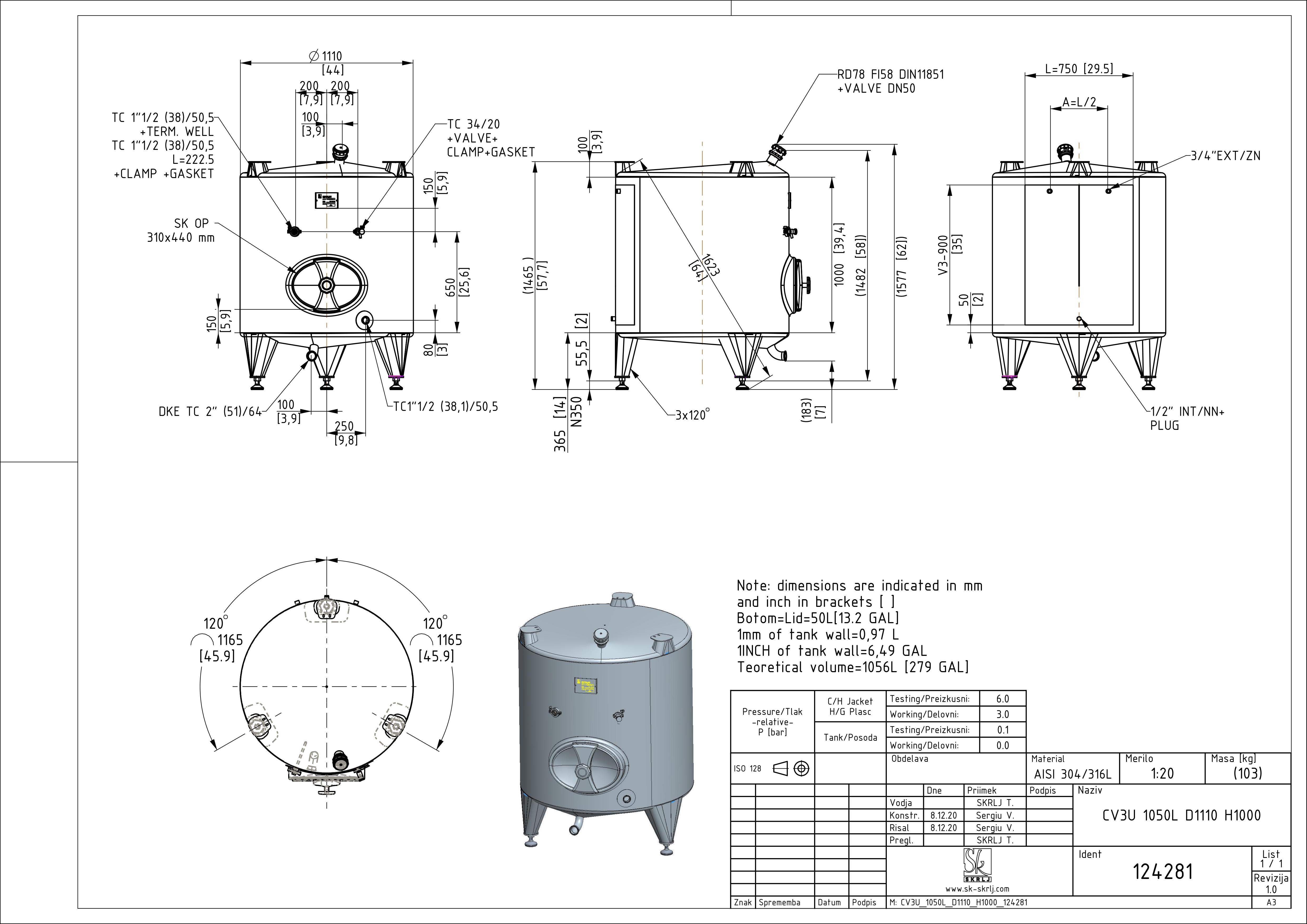

Stackable tank with double jacket
CV3U 1050/277 D1110 H1000/ATM PR
Material: 124281
Standard: PR
Nominal volume in L: 1050
Geometrical volume [l]: 1056
Nominal volume [US gal]: 277
Geometrical volume [US gal]: 279
Internal diameter in mm: 1110
Height H in mm: 1000
Height Z in mm: 1592
Internal diameter [in]: 43,7
Height H [in]: 39,4
Load: 1280
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
