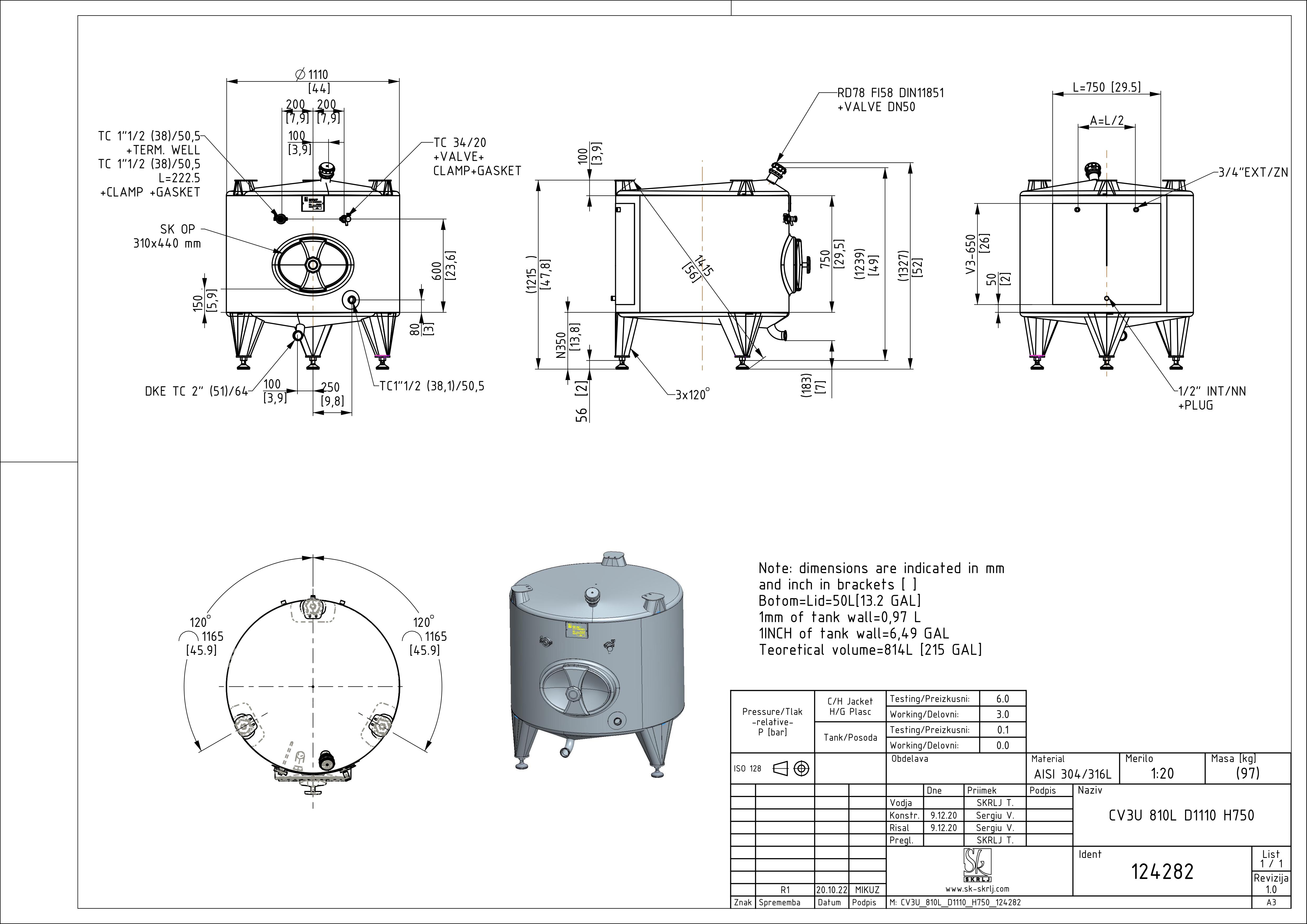

Stackable tank with double jacket
CV3U 810/214 D1110 H750/ATM PR
Material: 124282
Standard: PR
Nominal volume in L: 810
Geometrical volume [l]: 814
Nominal volume [US gal]: 214
Geometrical volume [US gal]: 215
Internal diameter in mm: 1110
Height H in mm: 750
Height Z in mm: 1342
Internal diameter [in]: 43,7
Height H [in]: 29,5
Load: 1280
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
