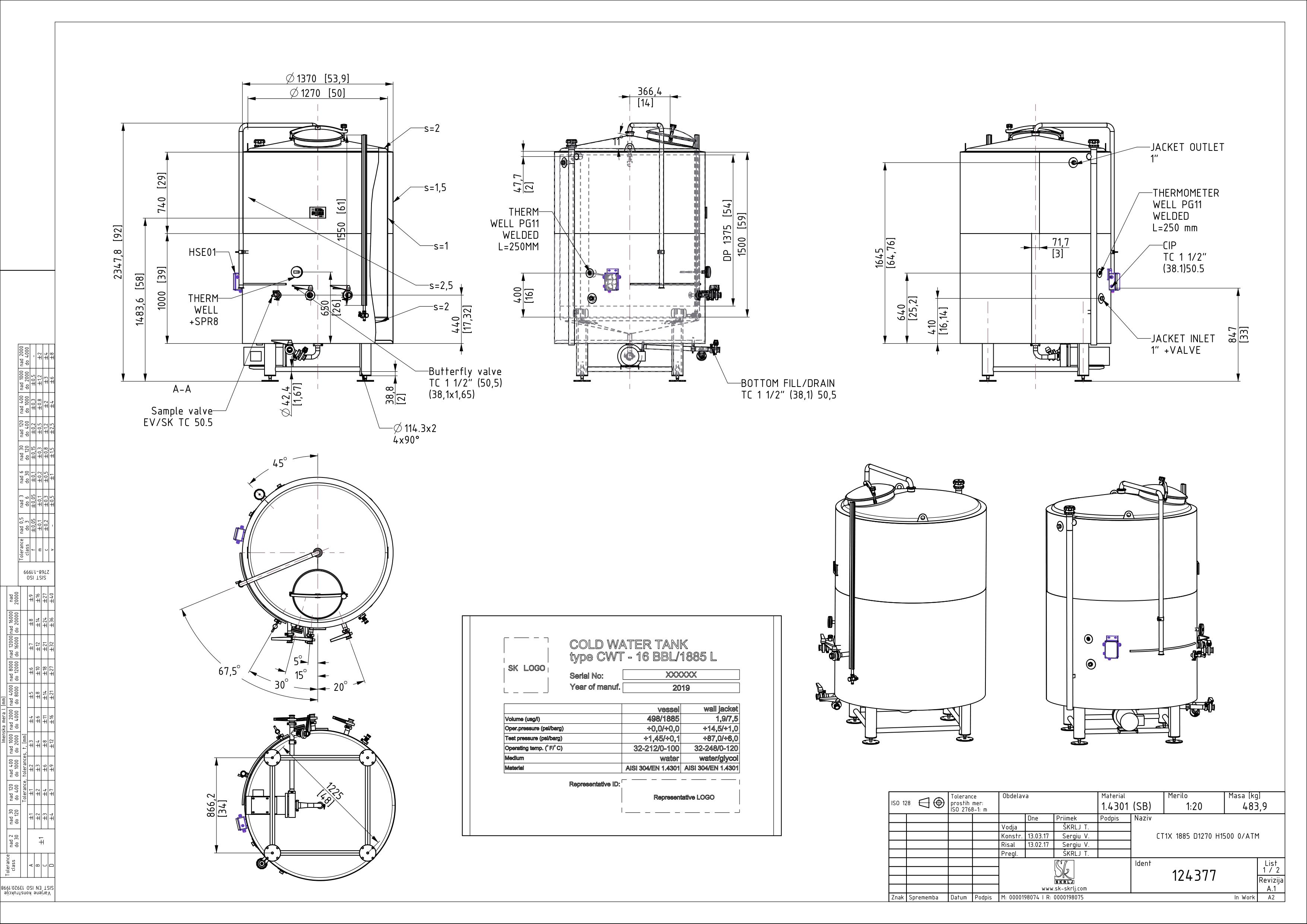

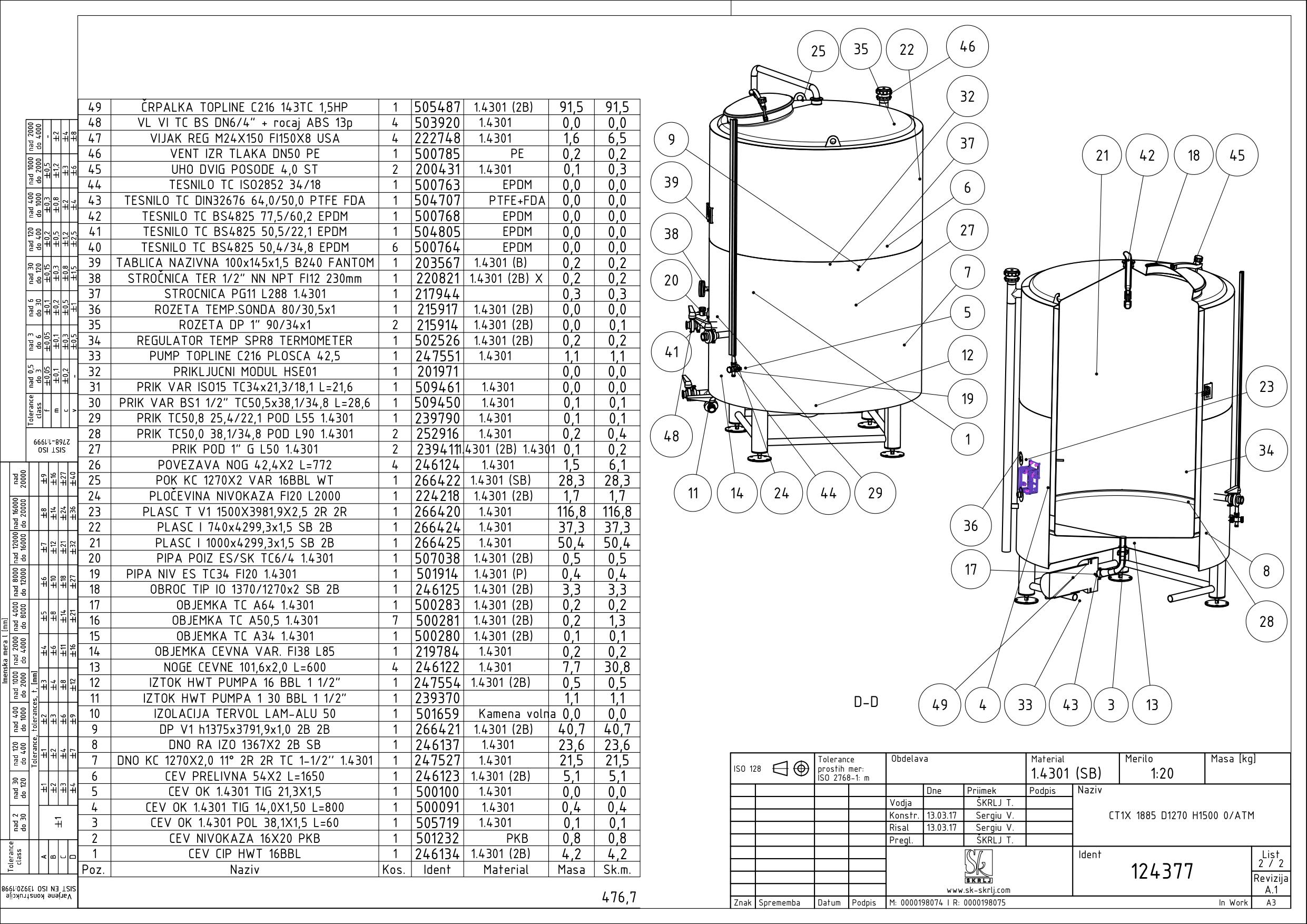

Cold water tank with double jacket
CT1X 1885 D1270 H1500 0/ATM
Material: 124377
Nominal volume in L: 1885
Internal diameter in mm: 1270
External diameter [mm]: 1370
Height H in mm: 1500
Height Z in mm: 2348
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
