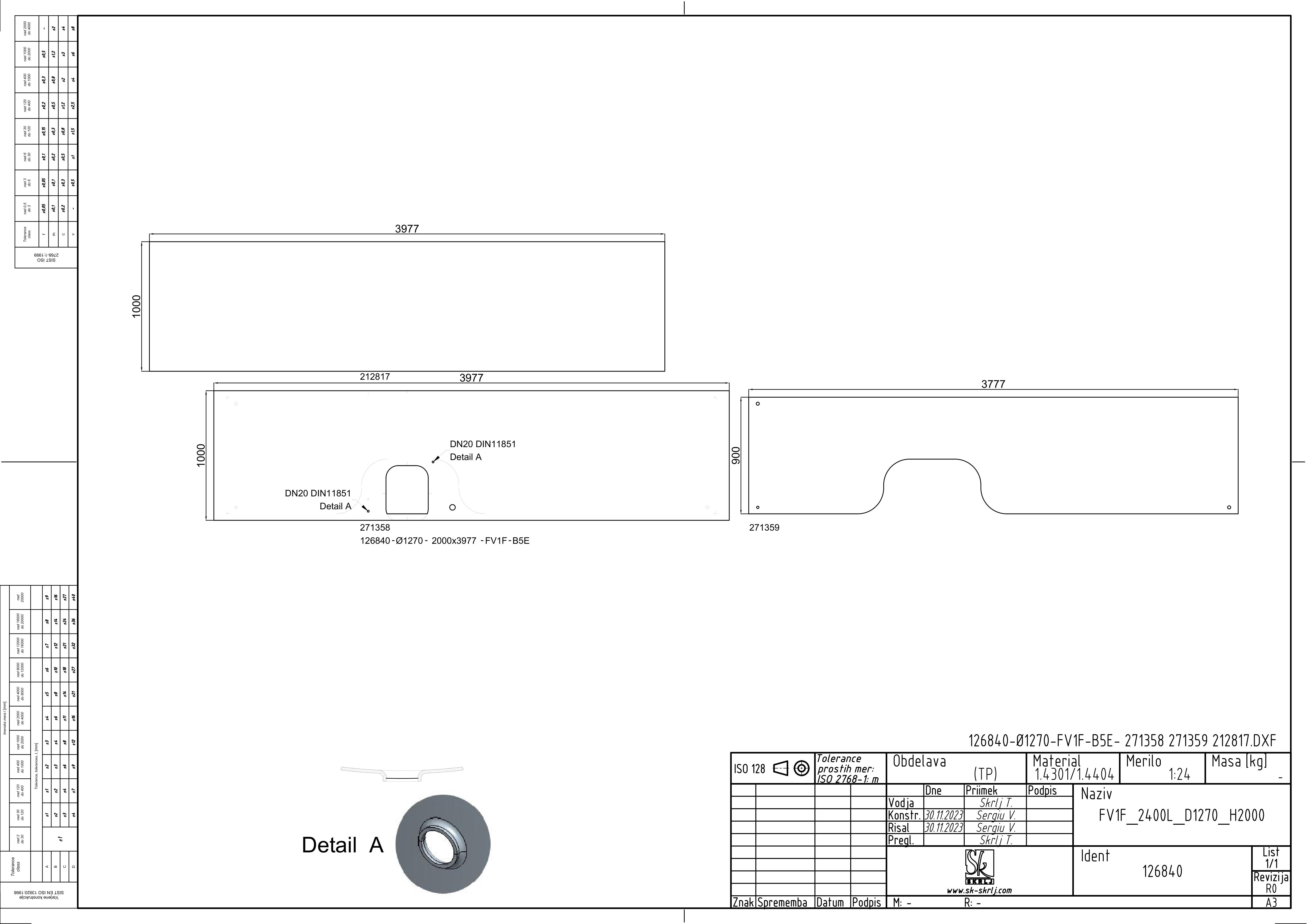

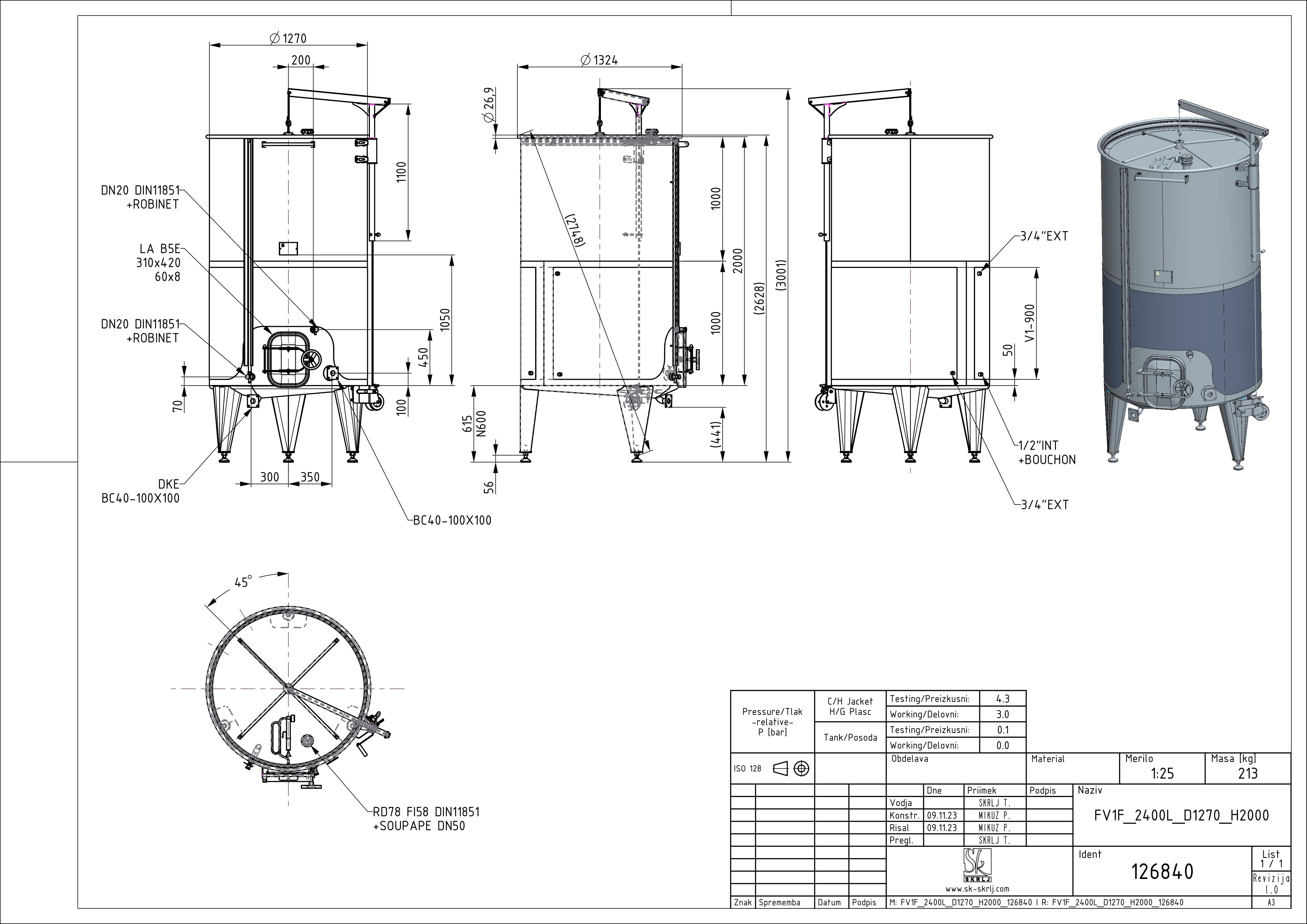

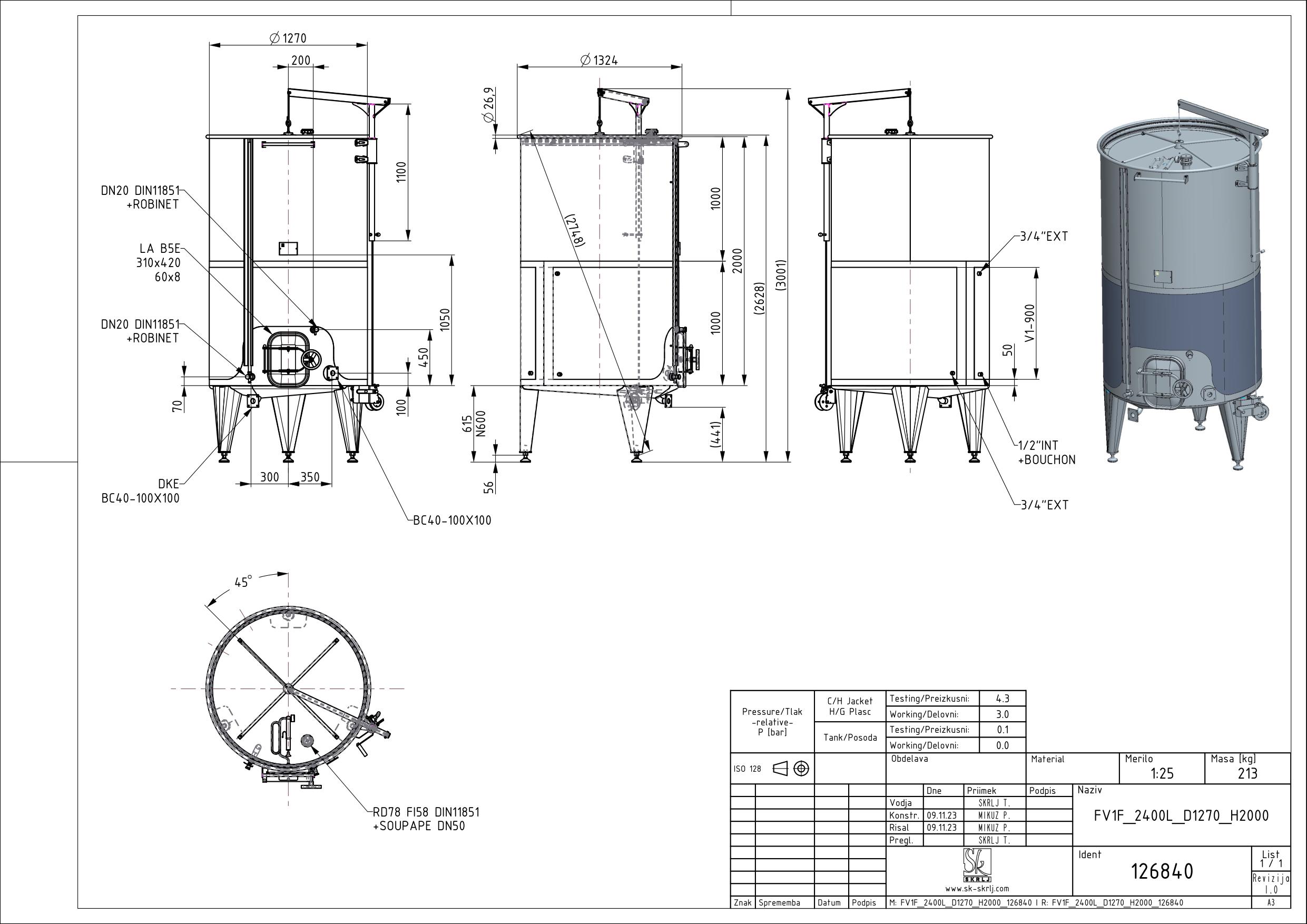

Storage tank with floating lid and double jacket
FV1F 2400 D1270 H2000 0/ATM STOCK
Material: 126840
Customer project label: STOCK
Nominal volume in L: 2400
Internal diameter in mm: 1270
Height H in mm: 2000
Height Z in mm: 3000
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
