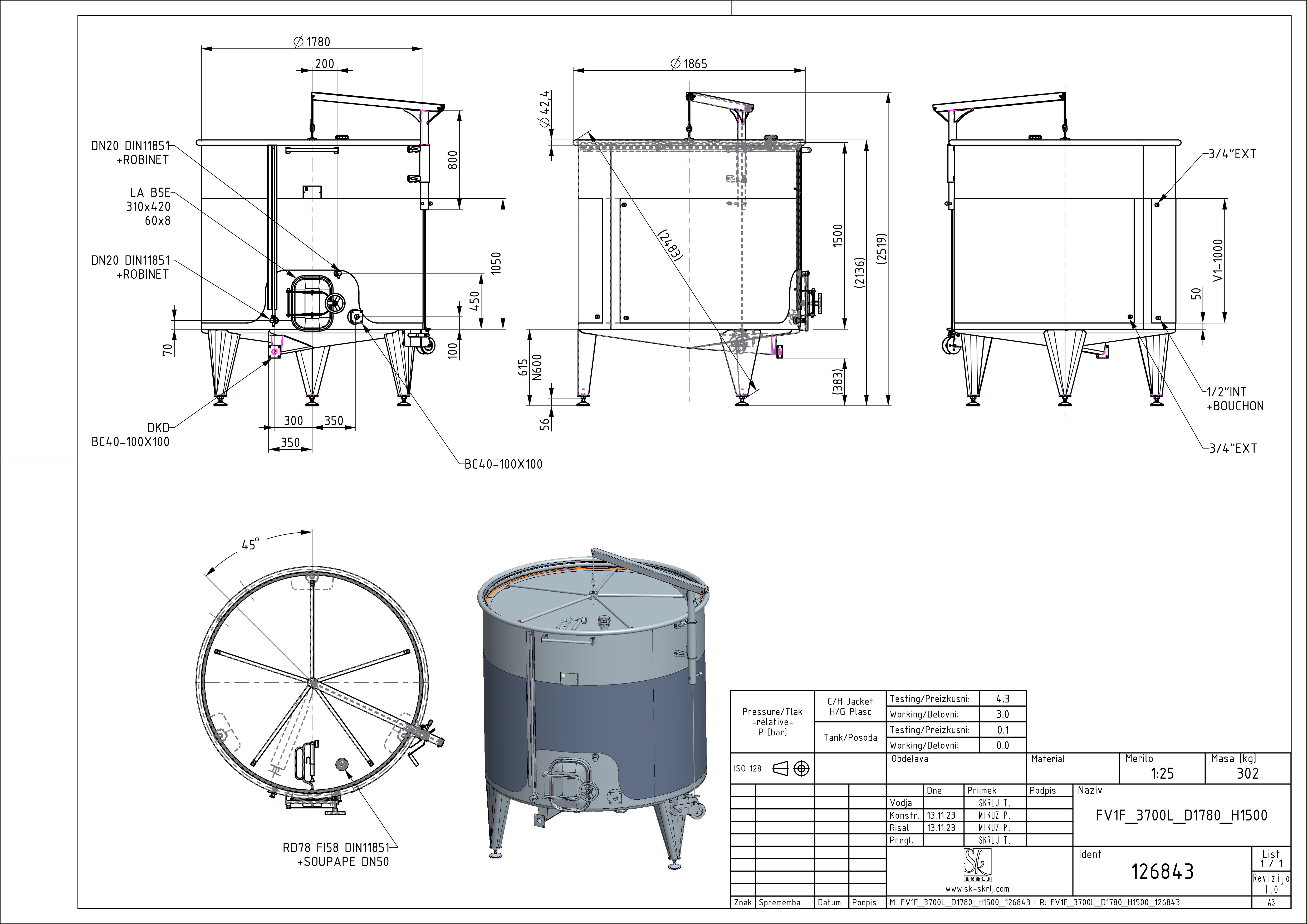

Storage tank with floating lid and double jacket
FV1F 3700 D1780 H1500 0/ATM STOCK
Material: 126843
Customer project label: STOCK
Nominal volume in L: 3700
Internal diameter in mm: 1780
Height H in mm: 1500
Height Z in mm: 2500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
