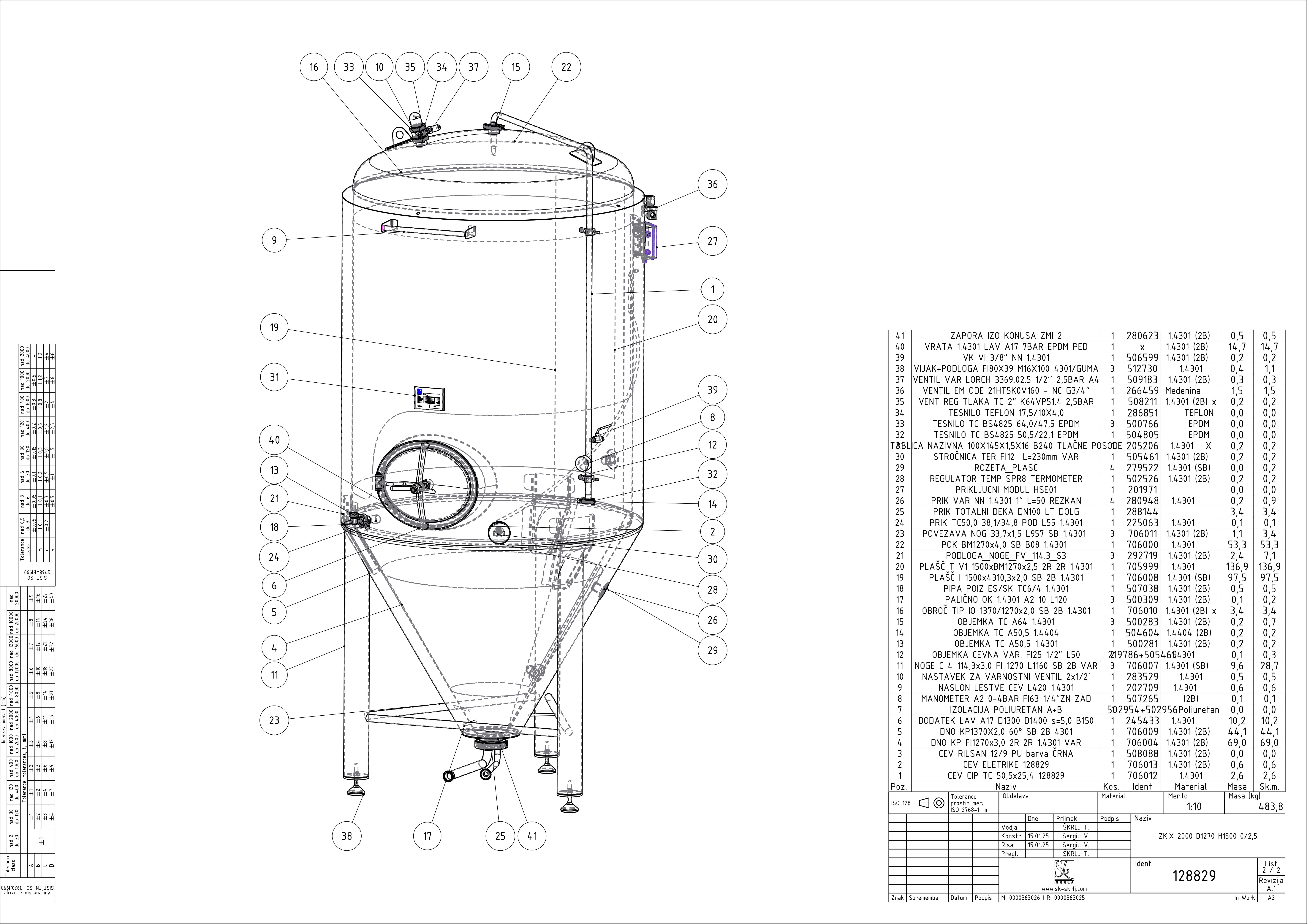

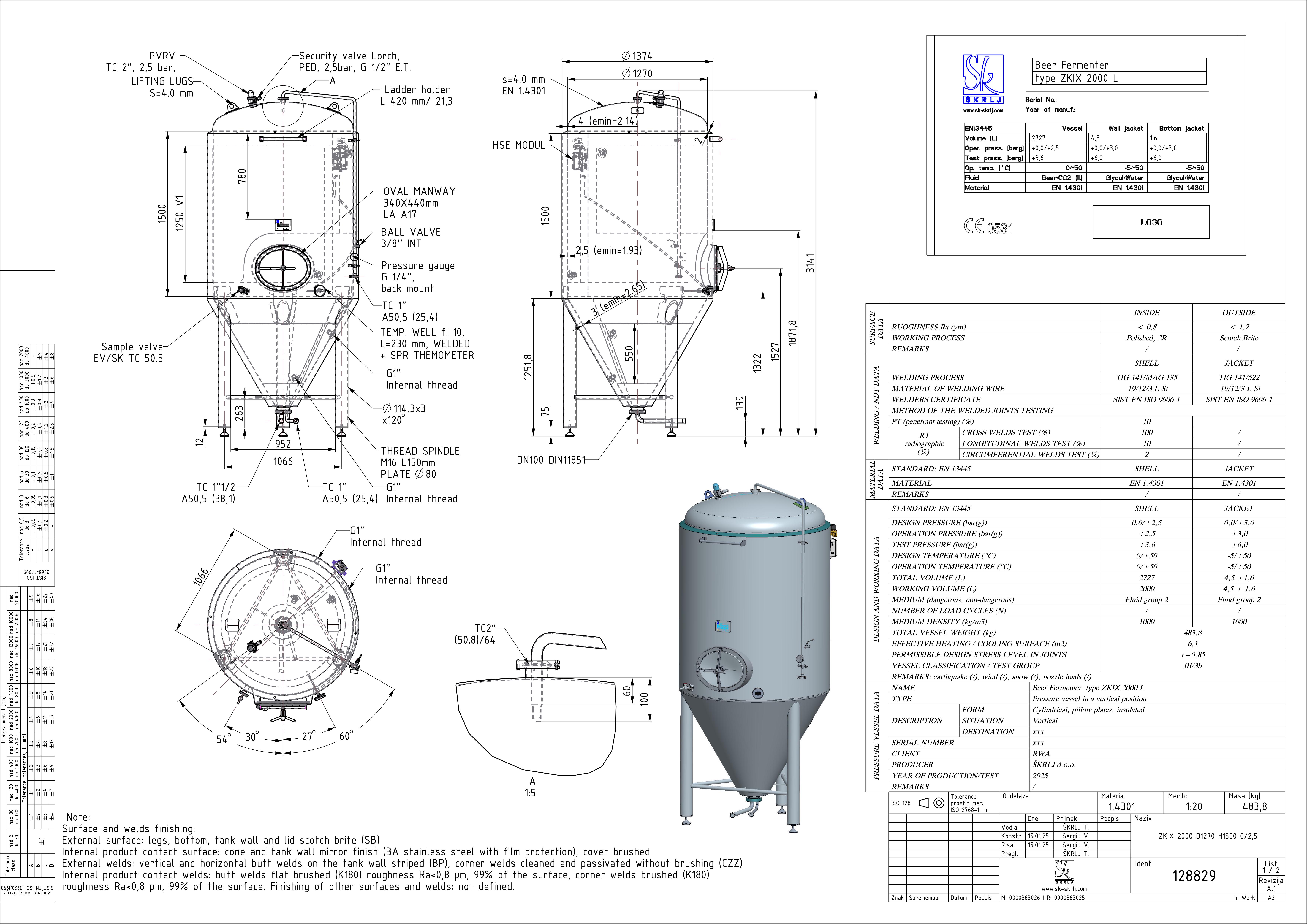

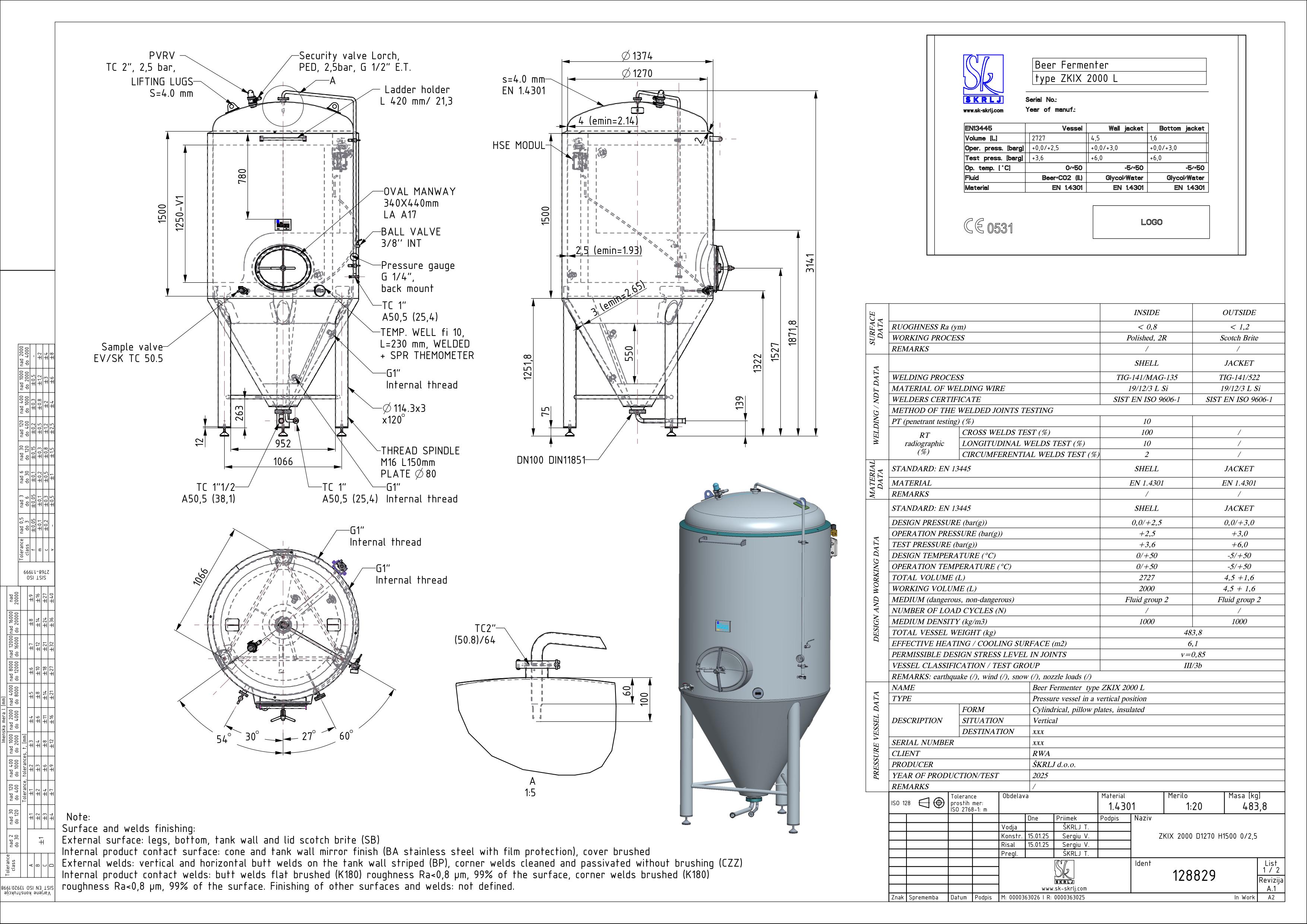

Cylindroconical fermentation and storage tank, insulated
ZKIX 2000 D1270 H1500 0/2,5
Material: 128829
Nominal volume in L: 2000
Geometrical volume [l]: 2630
Internal diameter in mm: 1270
External diameter [mm]: 1370
Jacket height H in mm: 1500
Type: Vertical tank - bottom KC60 - jacket E - lid BM
Min. operating press. [barg]: 0
Max. operating press. [barg]: 2,5
Test pressure [barg]: 3,58
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
