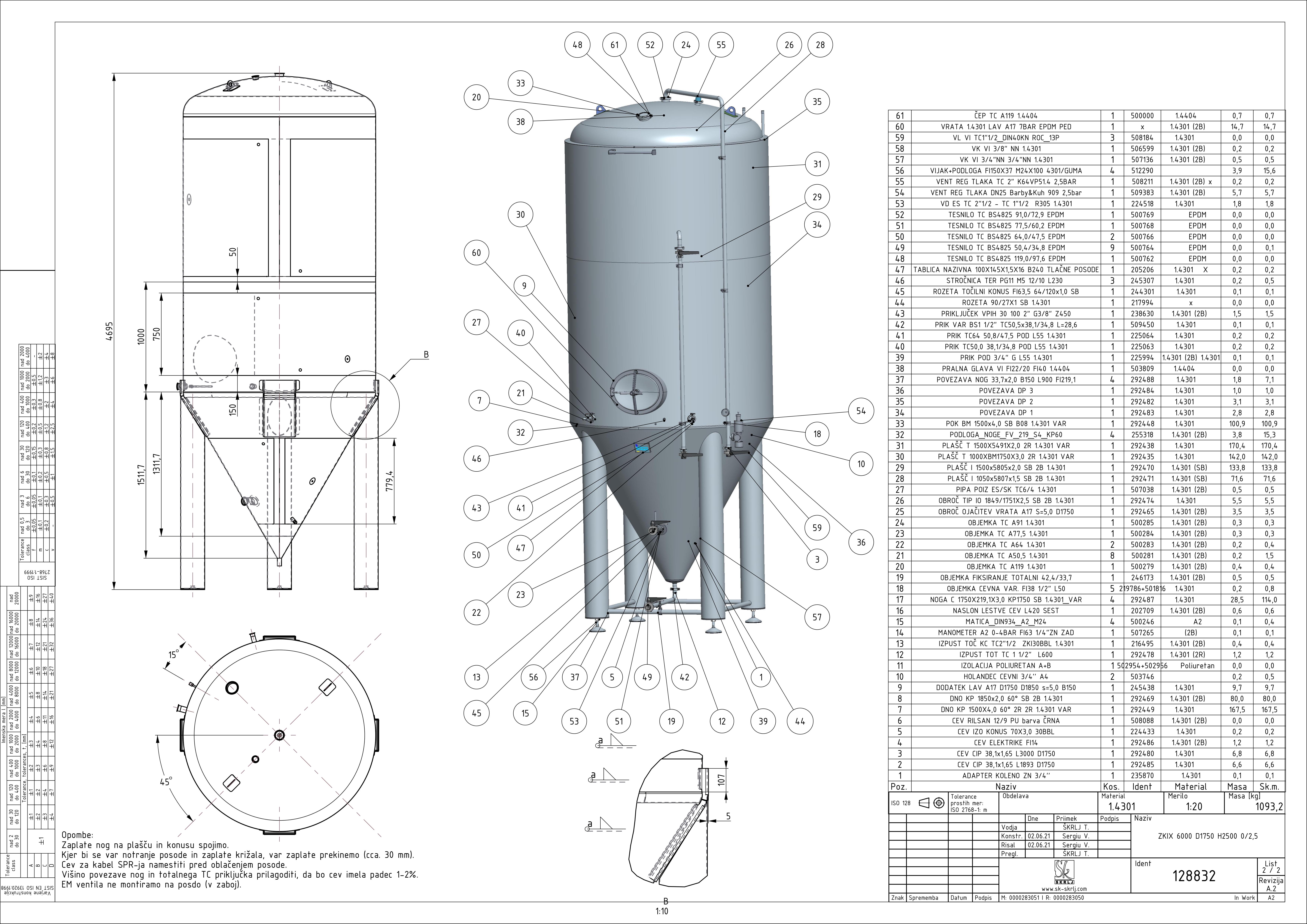

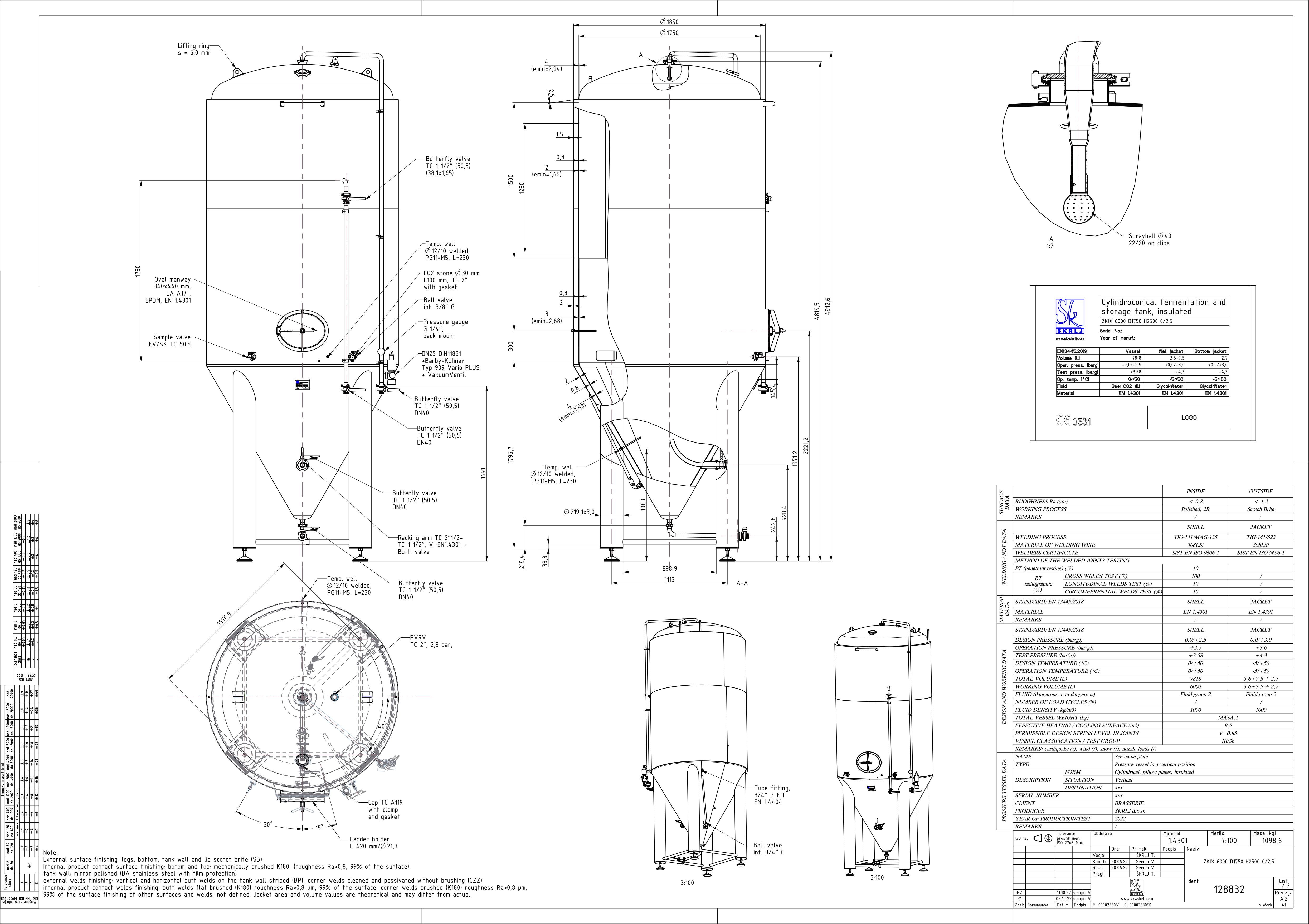

Cylindroconical fermentation and storage tank, insulated
ZKIX 6000 D1750 H2500 0/2,5
Material: 128832
Nominal volume in L: 6000
Geometrical volume [l]: 7800
Internal diameter in mm: 1750
External diameter [mm]: 1850
Height H in mm: 2500
Height Z in mm: 4890
Min. operating press. [barg]: 0
Max. operating press. [barg]: 2,5
Test pressure [barg]: 3,58
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
