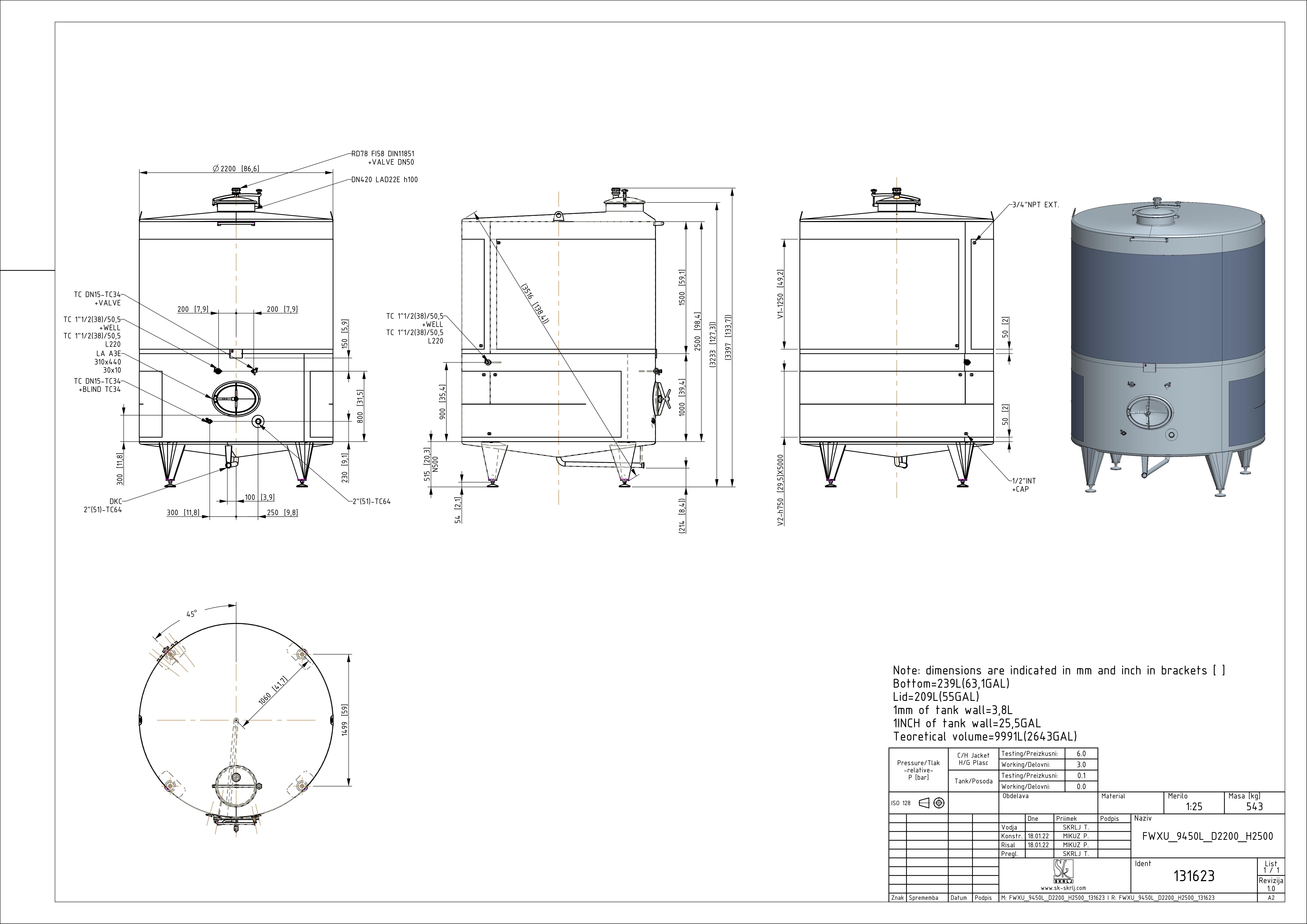

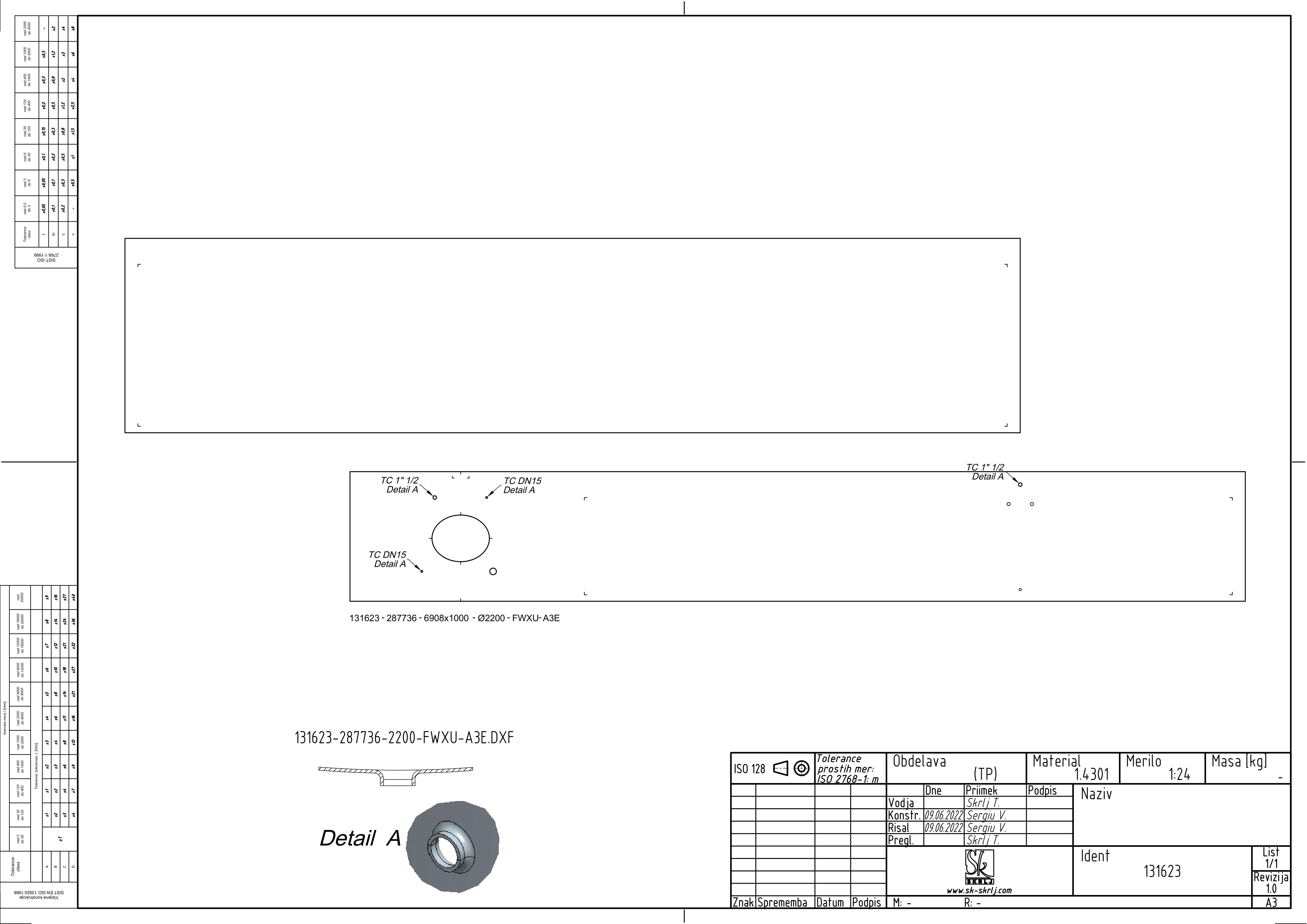

Fixed capacity white wine tank
FWXU 9450/2500 D2200 H2500 0/ATM
Material: 131623
Nominal volume in L: 9450
Geometrical volume [l]: 9991
Nominal volume [US gal]: 2500
Geometrical volume [US gal]: 2643
Internal diameter in mm: 2200
Height H in mm: 2500
Height Z in mm: 3500
Internal diameter [in]: 86,6
Height H [in]: 98,4
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
