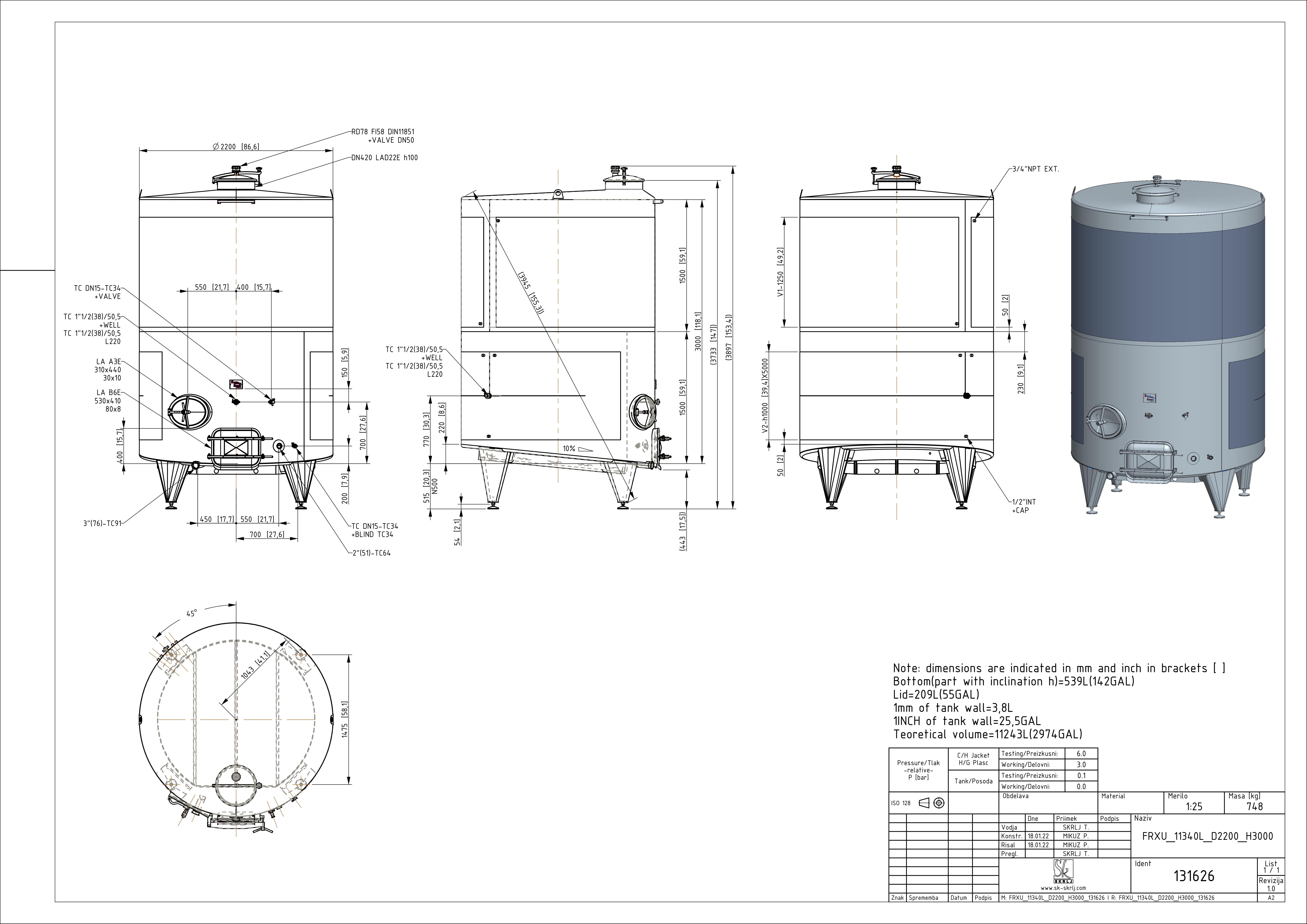

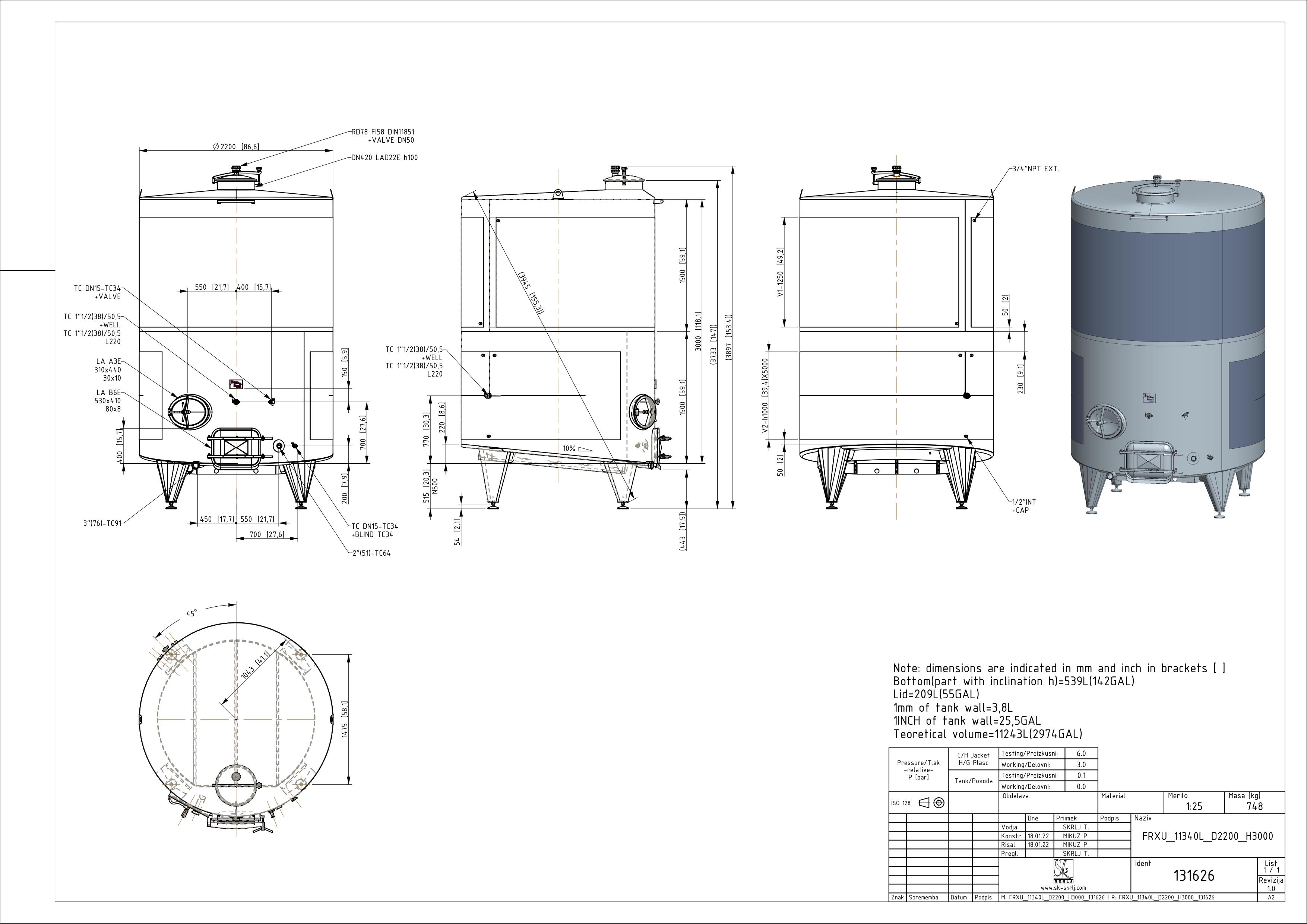

Fixed capacity red wine tank
FRXU 11340/3000 D2200 H3000 0/ATM
Material: 131626
Nominal volume in L: 11340
Geometrical volume [l]: 11243
Nominal volume [US gal]: 3000
Geometrical volume [US gal]: 2974
Internal diameter in mm: 2200
Height H in mm: 3000
Height Z in mm: 3900
Internal diameter [in]: 86
Height H [in]: 118
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
