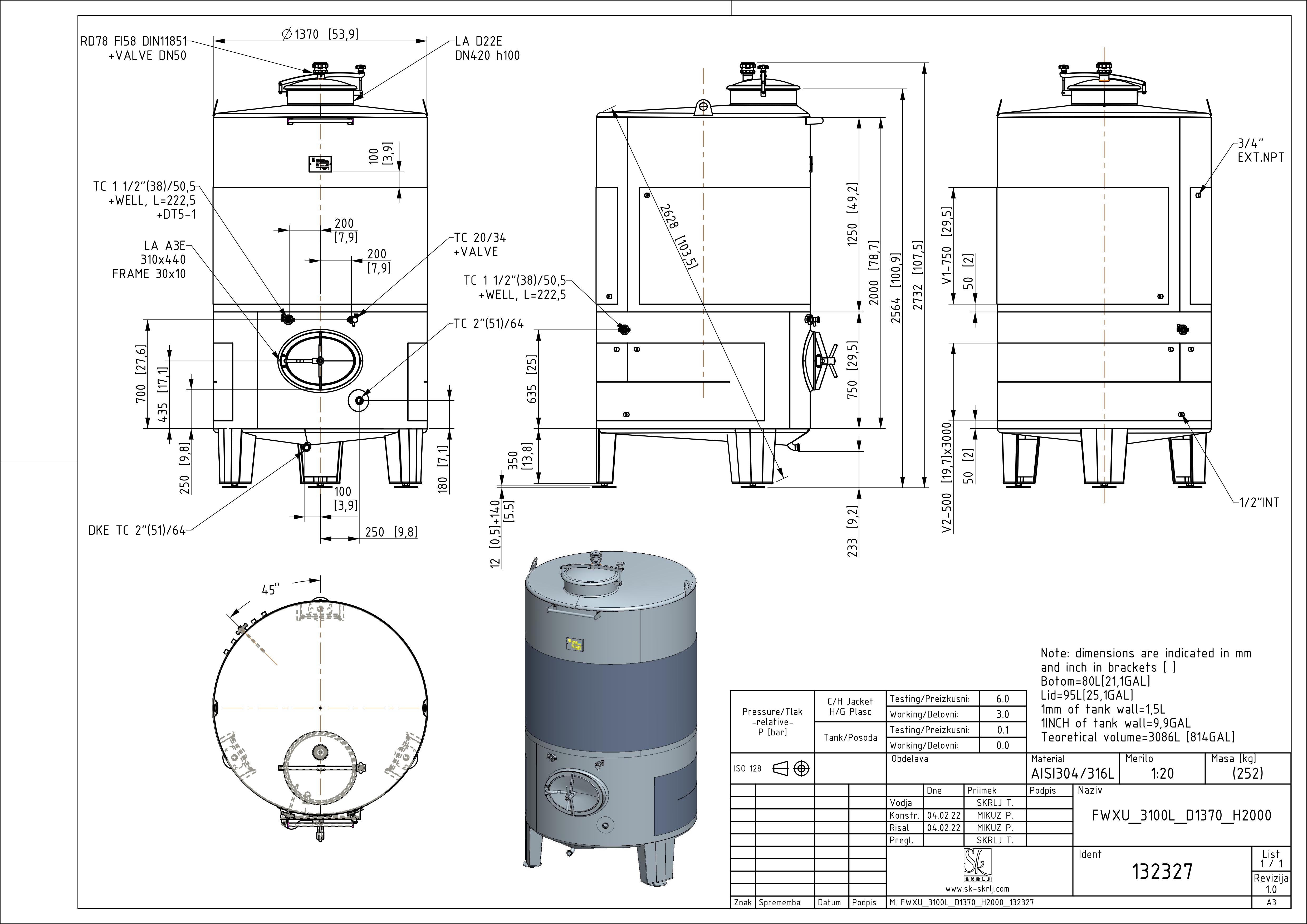

Fixed capacity white wine tank
FWXU 3100/750 D1370 H2000 0/ATM V2
Material: 132327
Customer project label: V2
Nominal volume in L: 3100
Geometrical volume [l]: 3085
Nominal volume [US gal]: 750
Geometrical volume [US gal]: 815
Internal diameter in mm: 1370
Jacket height H in mm: 2000
Total height Z in mm: 2675
Internal diameter [in]: 53,9
Height H [in]: 78,7
Type: Vertical tank - bottom RA - jacket E - lid VP
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
