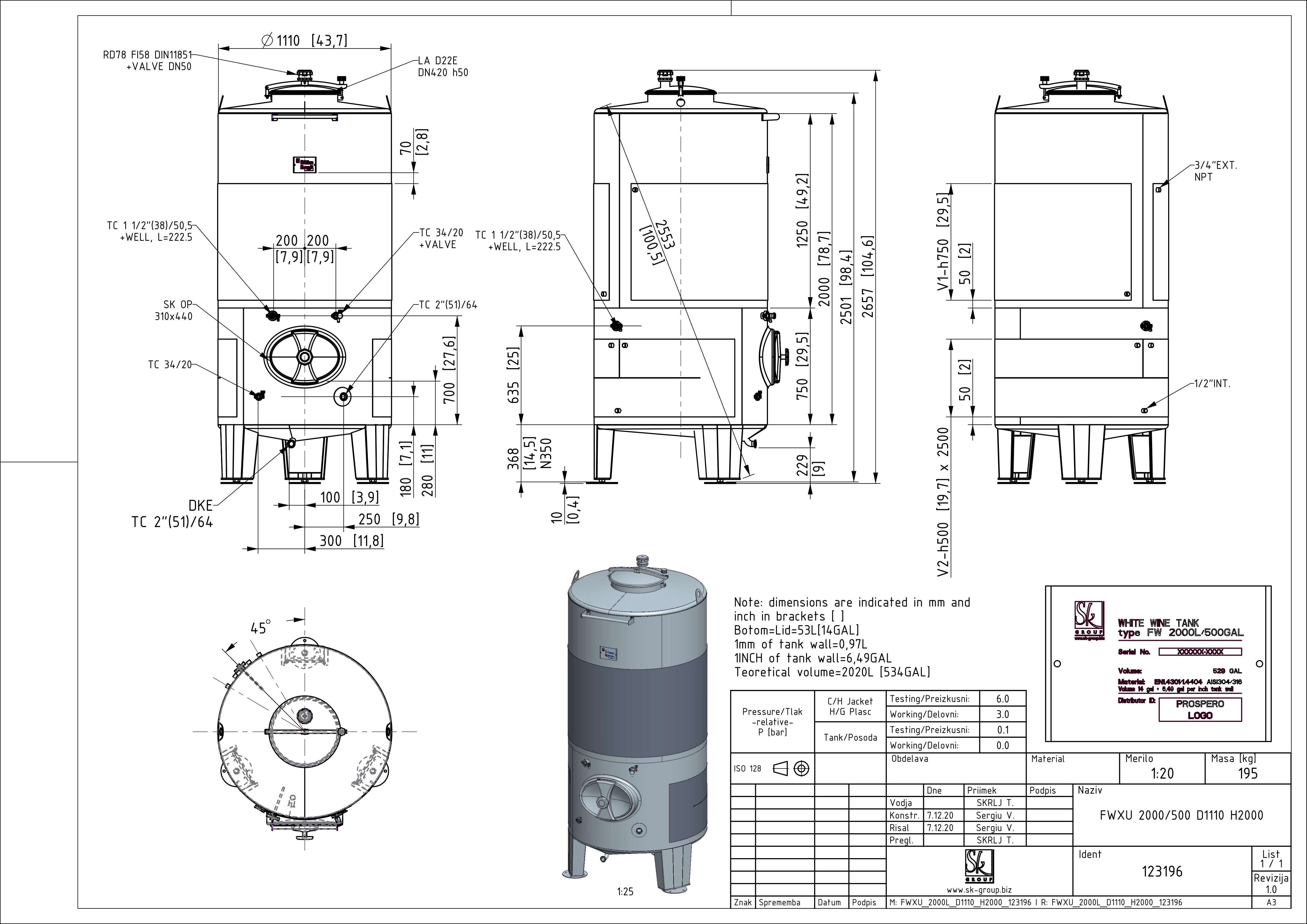

Fixed capacity white wine tank
FWXU 2000/500 D1110 H2000 0/ATM V2
Material: 132328
Customer project label: V2
Nominal volume in L: 2000
Geometrical volume [l]: 2020
Nominal volume [US gal]: 500
Geometrical volume [US gal]: 534
Internal diameter in mm: 1110
Jacket height H in mm: 2000
Total height Z in mm: 2657
Internal diameter [in]: 43,7
Height H [in]: 78,7
Type: Vertical tank - bottom RA - jacket E - lid VP
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
