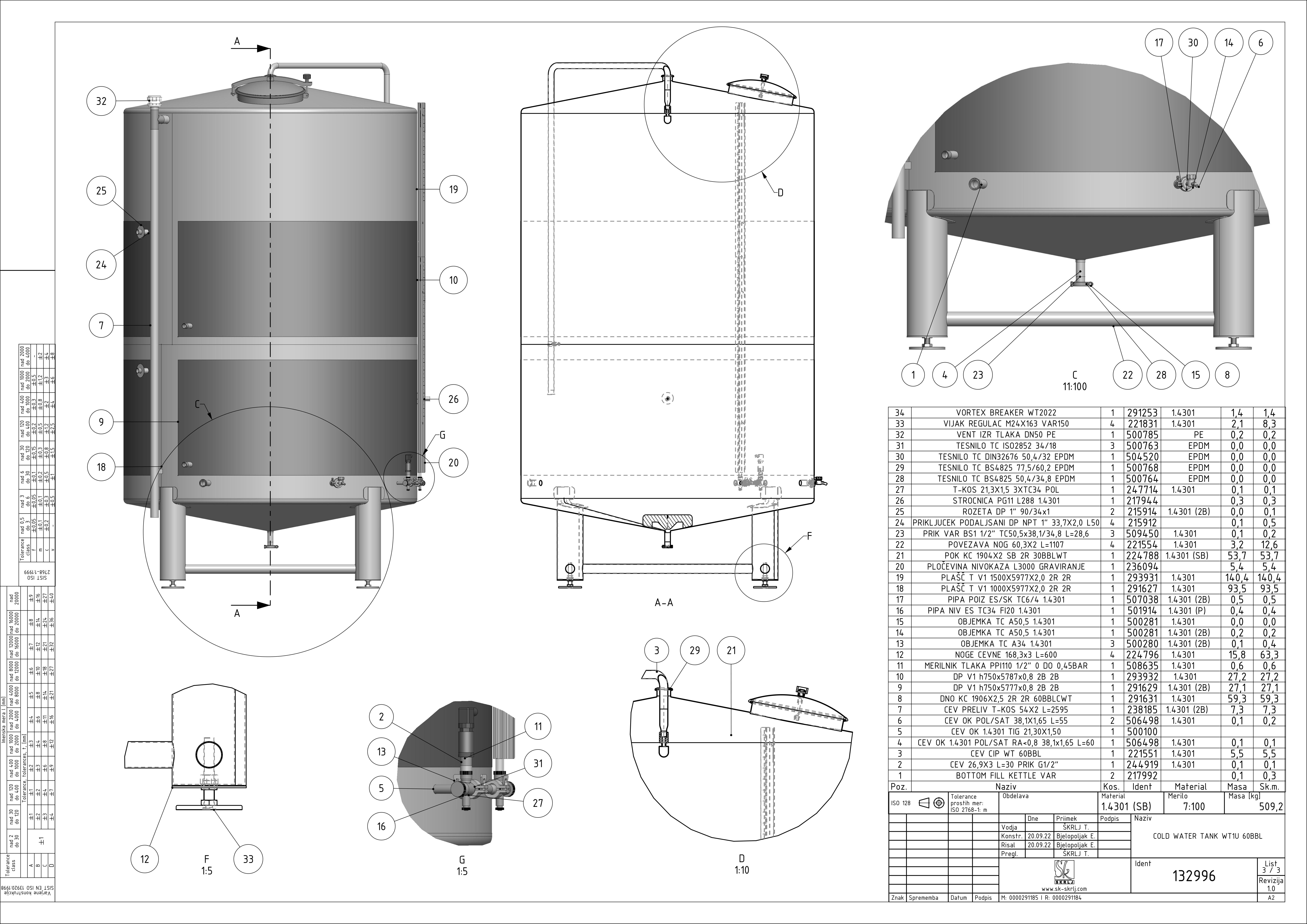

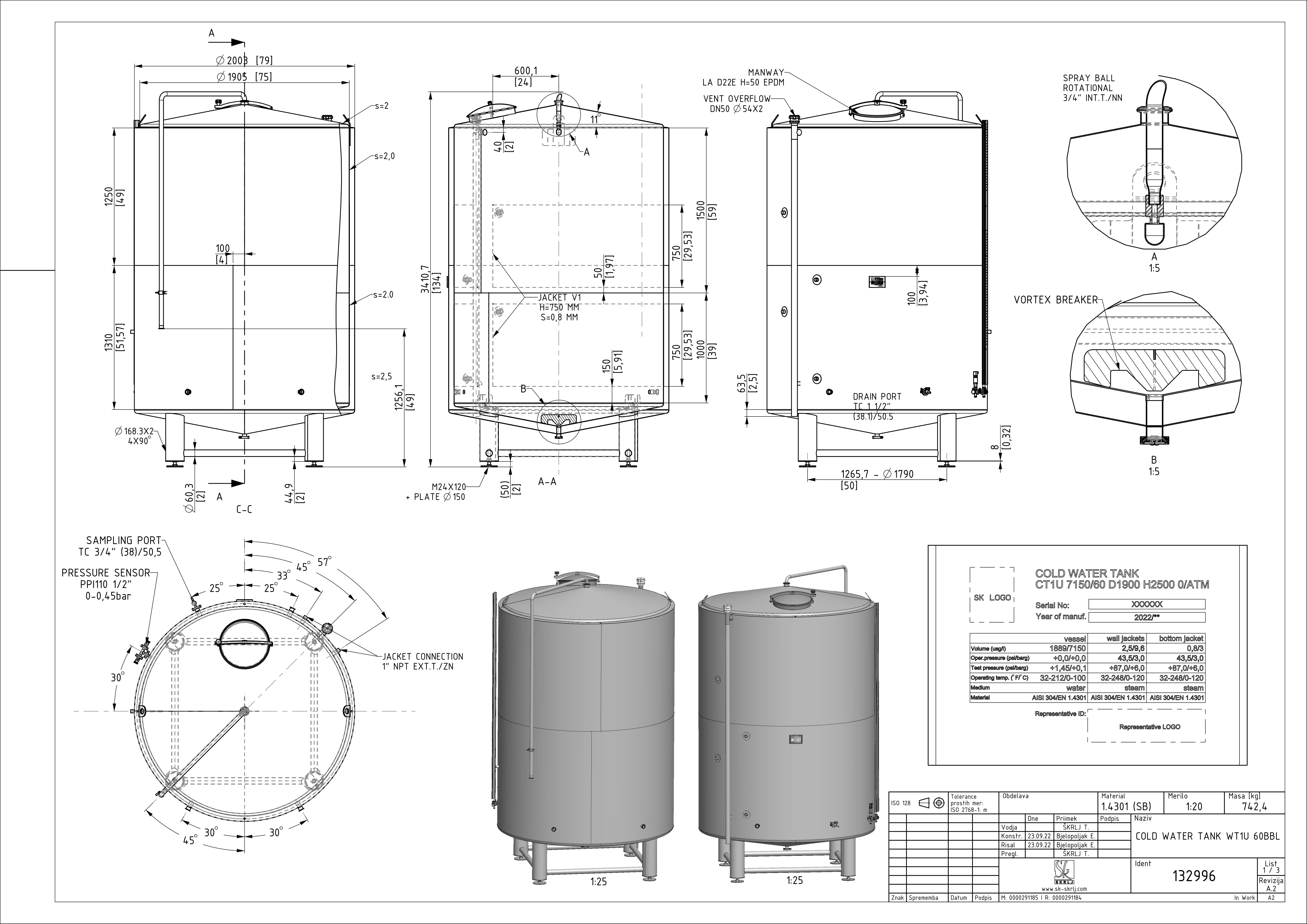

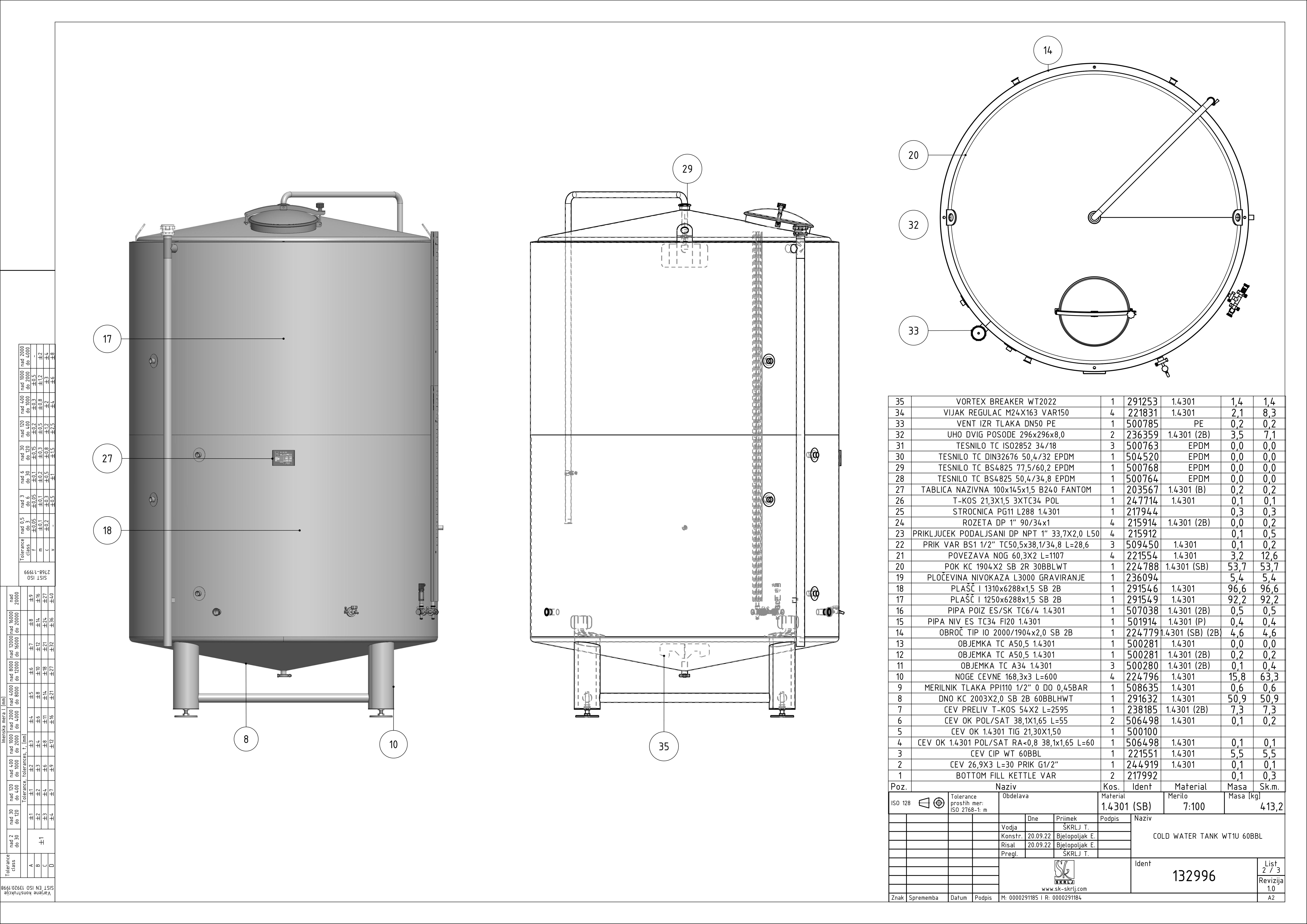

Cold water tank with double jacket
CT1U 7150/60 D1900 H2500 0/ATM
Material: 132996
Nominal volume in L: 7150
Geometrical volume [l]: 7520
Nominal volume [bbl]: 60
Internal diameter in mm: 1900
External diameter [mm]: 2000
Height H in mm: 2500
Height Z in mm: 3410
Internal diameter [in]: 74,8
External diameter [in]: 78,7
Height H [in]: 98,4
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
