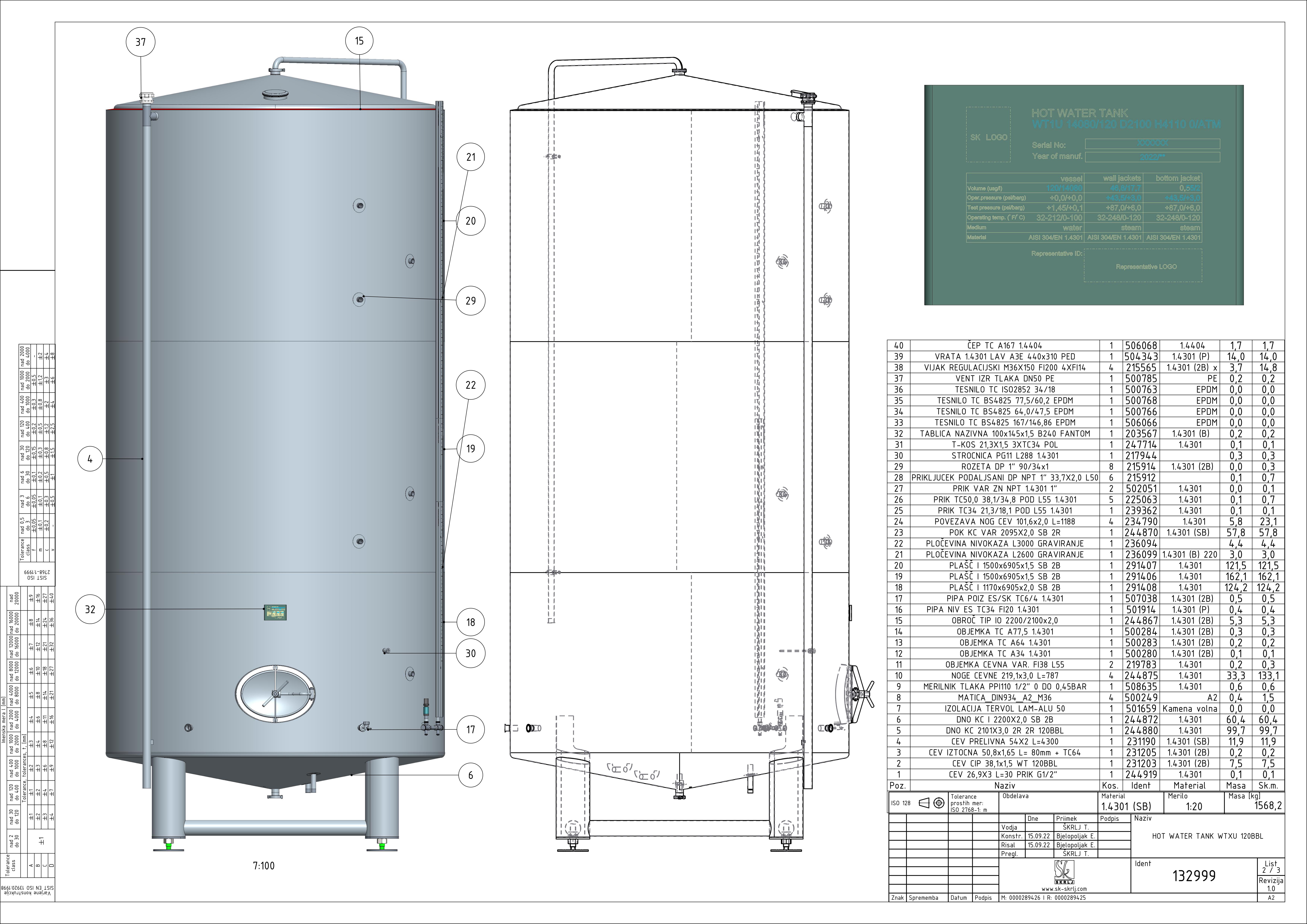

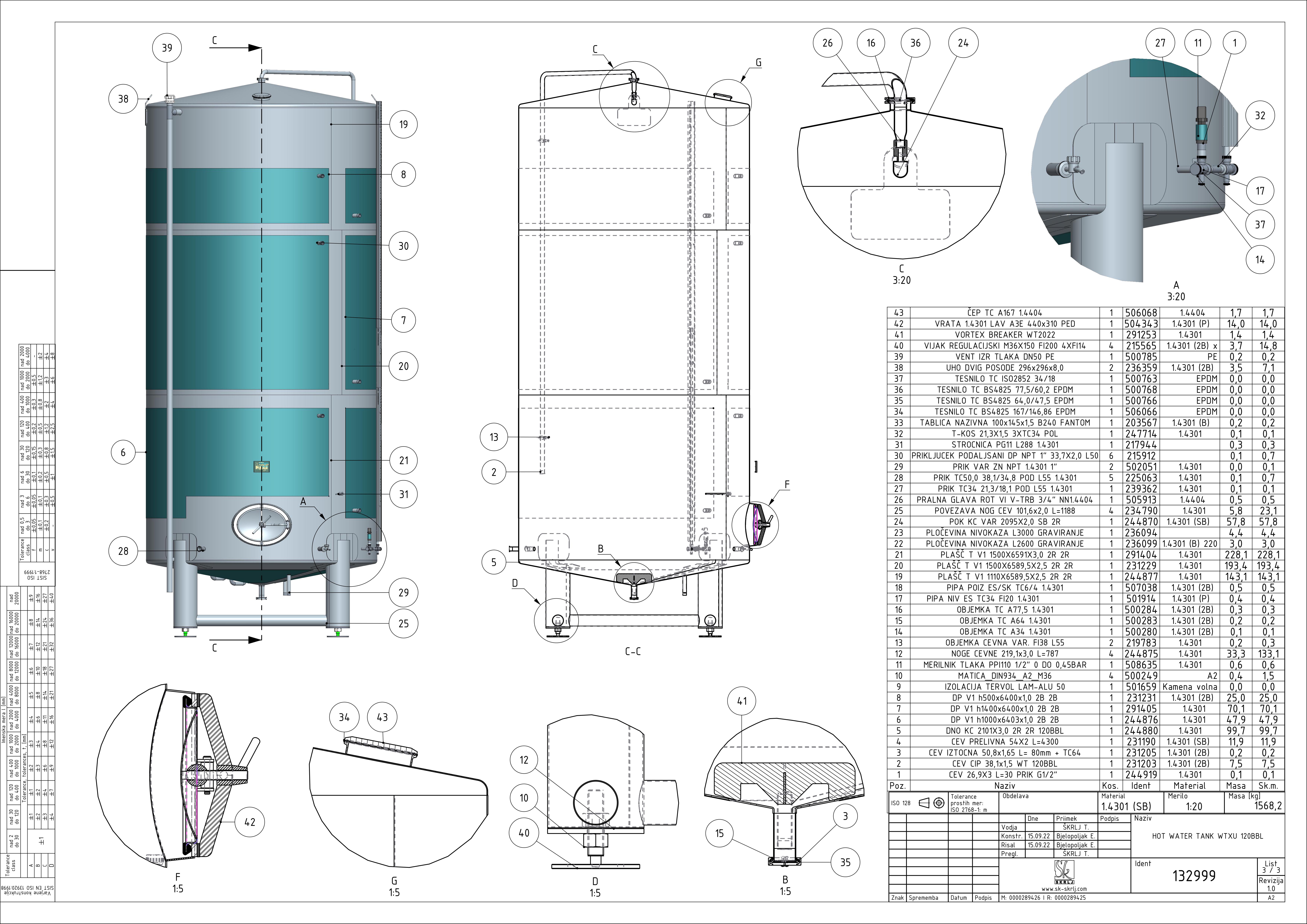

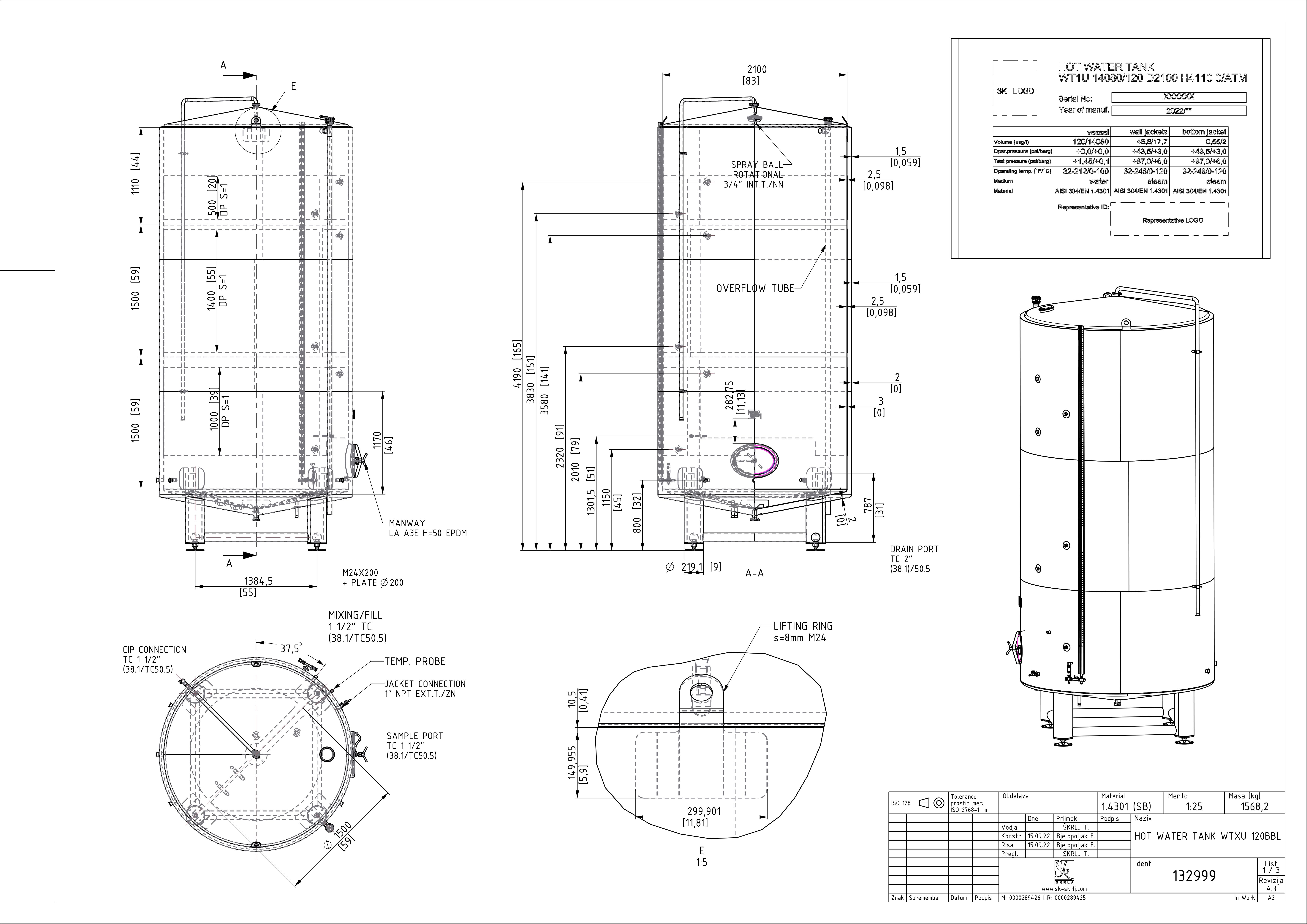

Hot water tank with double jacket
WT1U 14080/120 D2100 H4110 0/ATM
Article no.: 132999
Made of Stainless steel (inox, stainless).
Nominal volume in L: 14080
Geometrical volume [l]: 14962
Nominal volume [bbl]: 120
Internal diameter in mm: 2100
External diameter [mm]: 2200
Jacket height H in mm: 4110
Total height Z in mm: 5010
Internal diameter [in]: 82,6
External diameter [in]: 86,6
Height H [in]: 161,8
Type: Vertical tank - bottom KC - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
