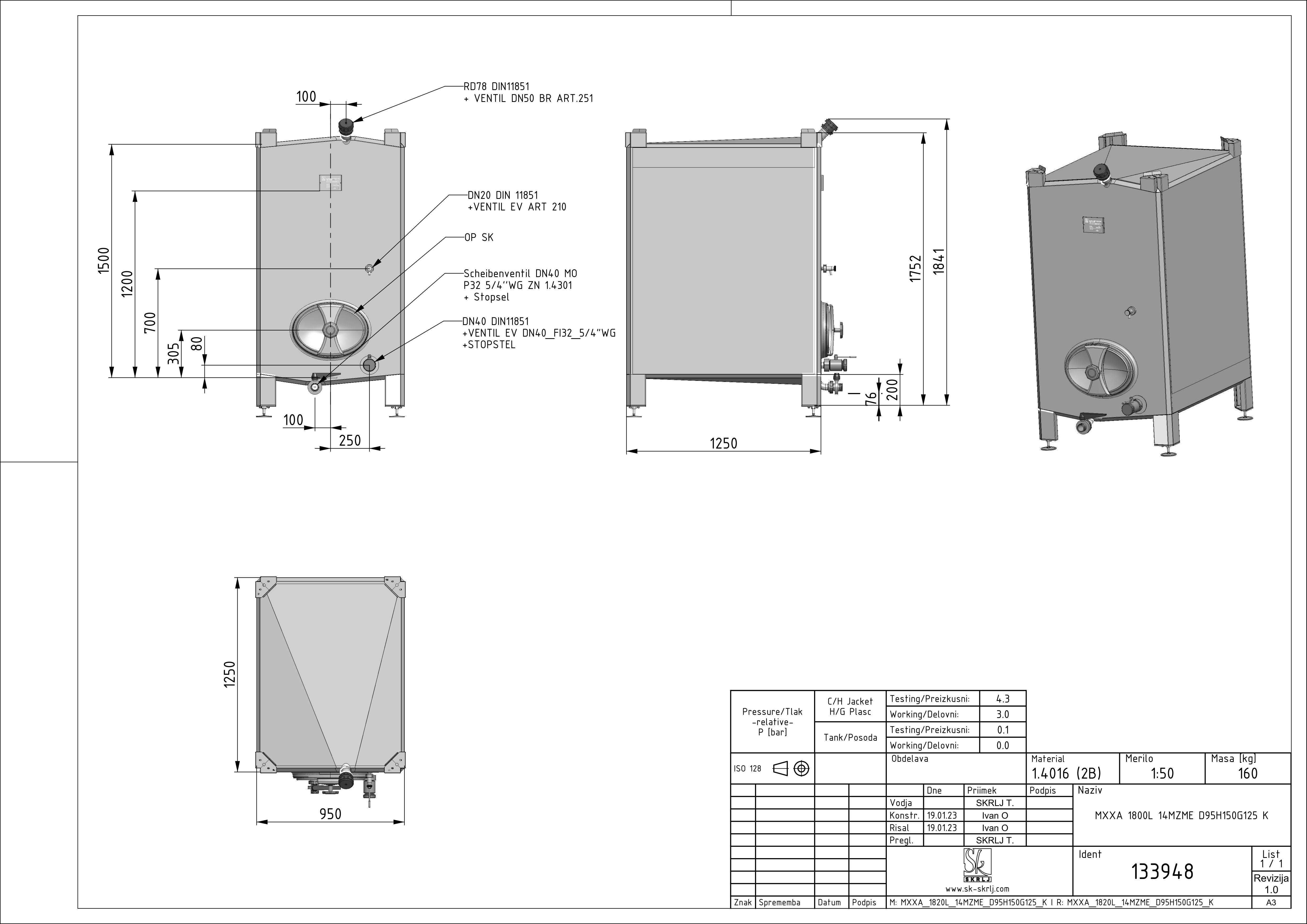

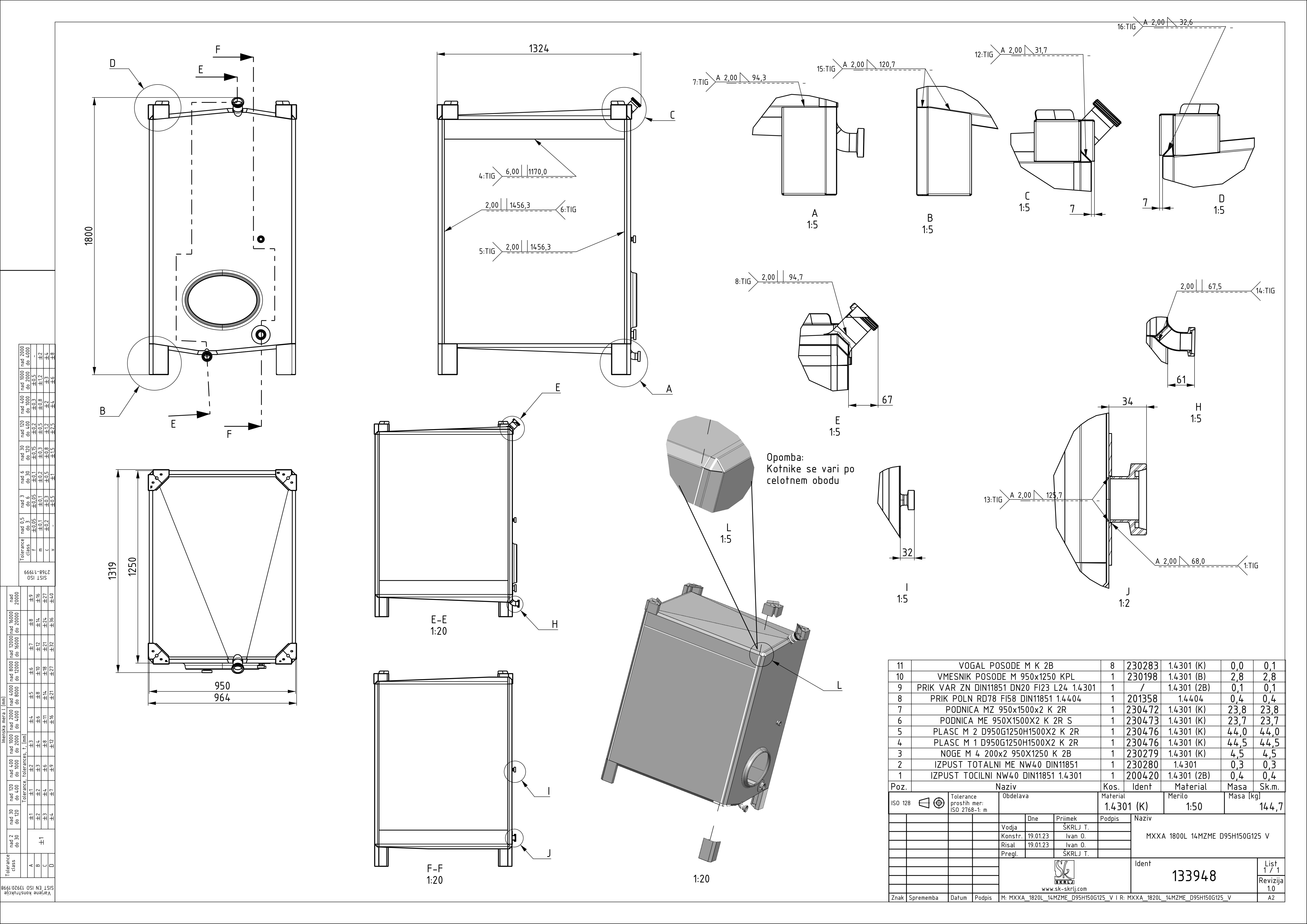

Small rectangular storage tank
MXXA 1800 D950 G1250 H1500 0/ATM
Material: 133948
Nominal volume in L: 1800
Width D in mm: 950
Depth G in mm: 1250
Height H in mm: 1500
Height Z in mm: 1790
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
