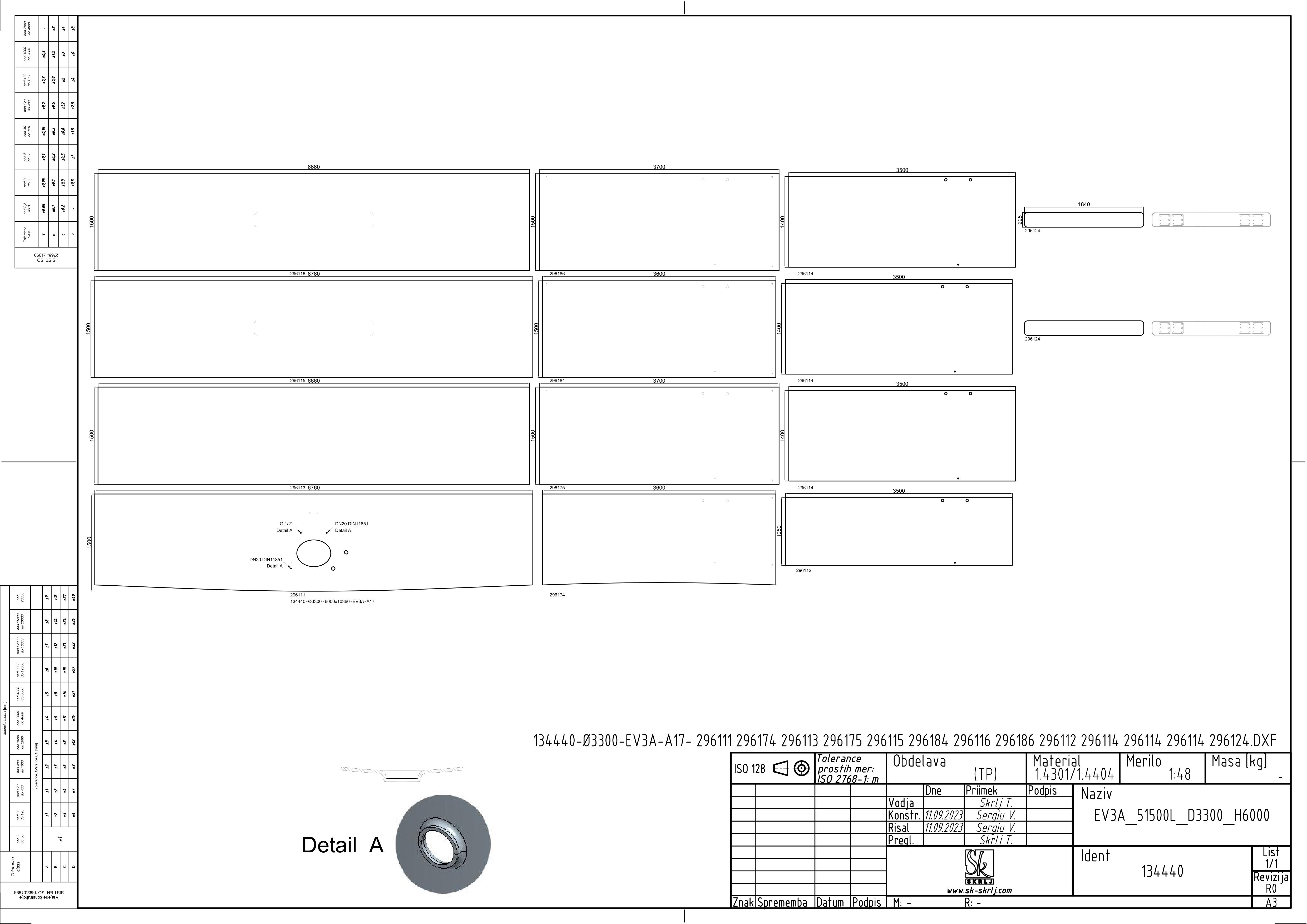

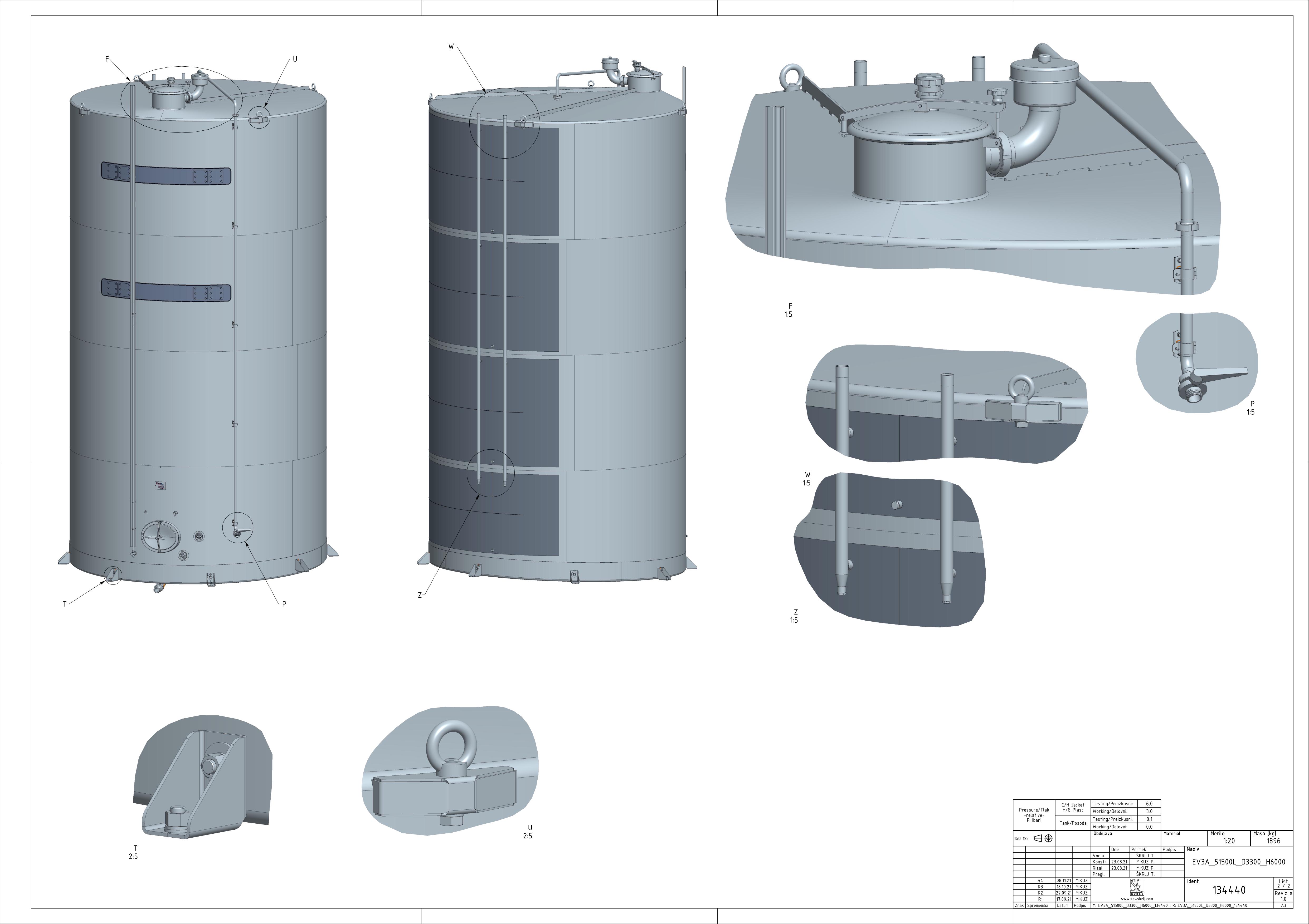

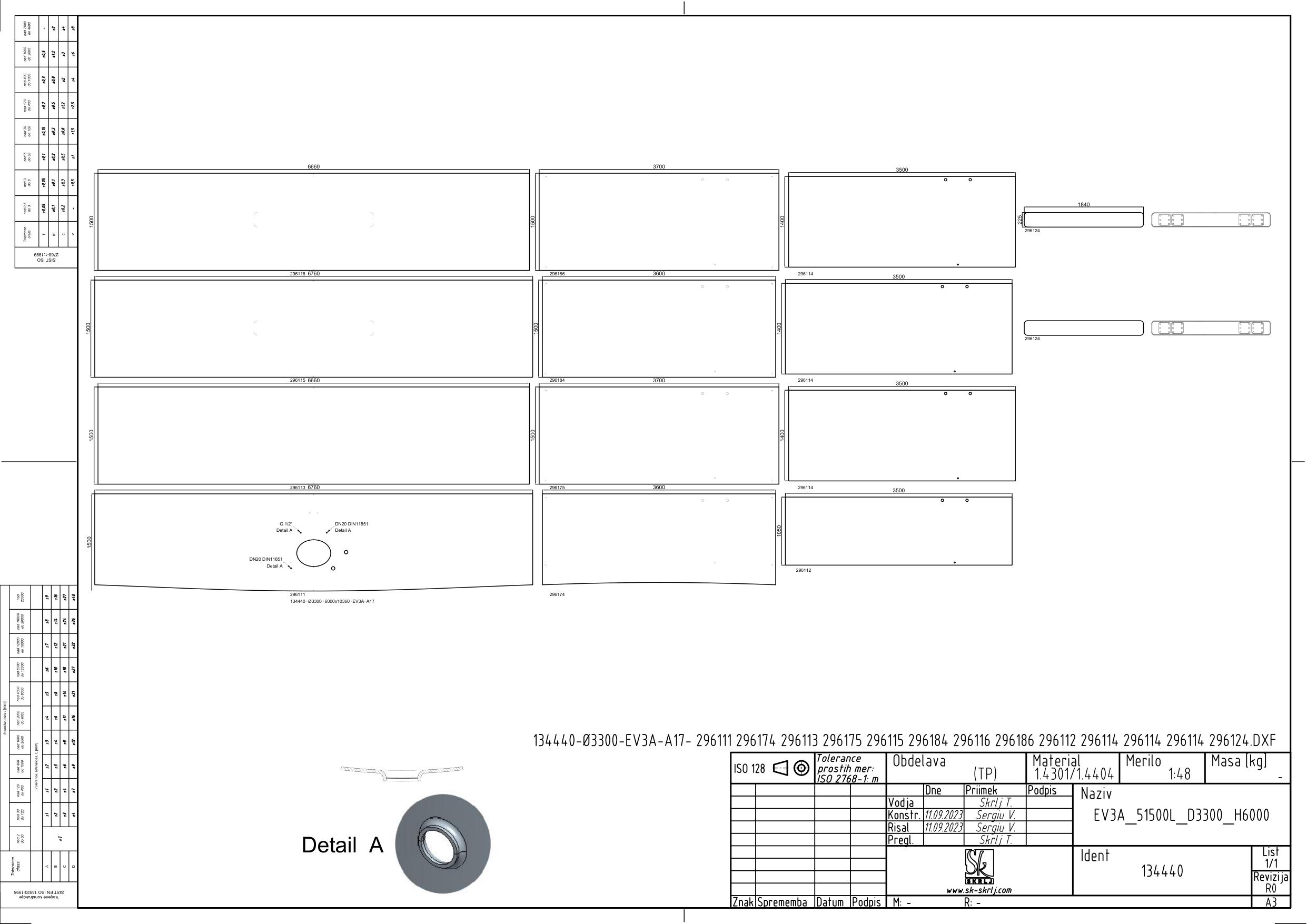

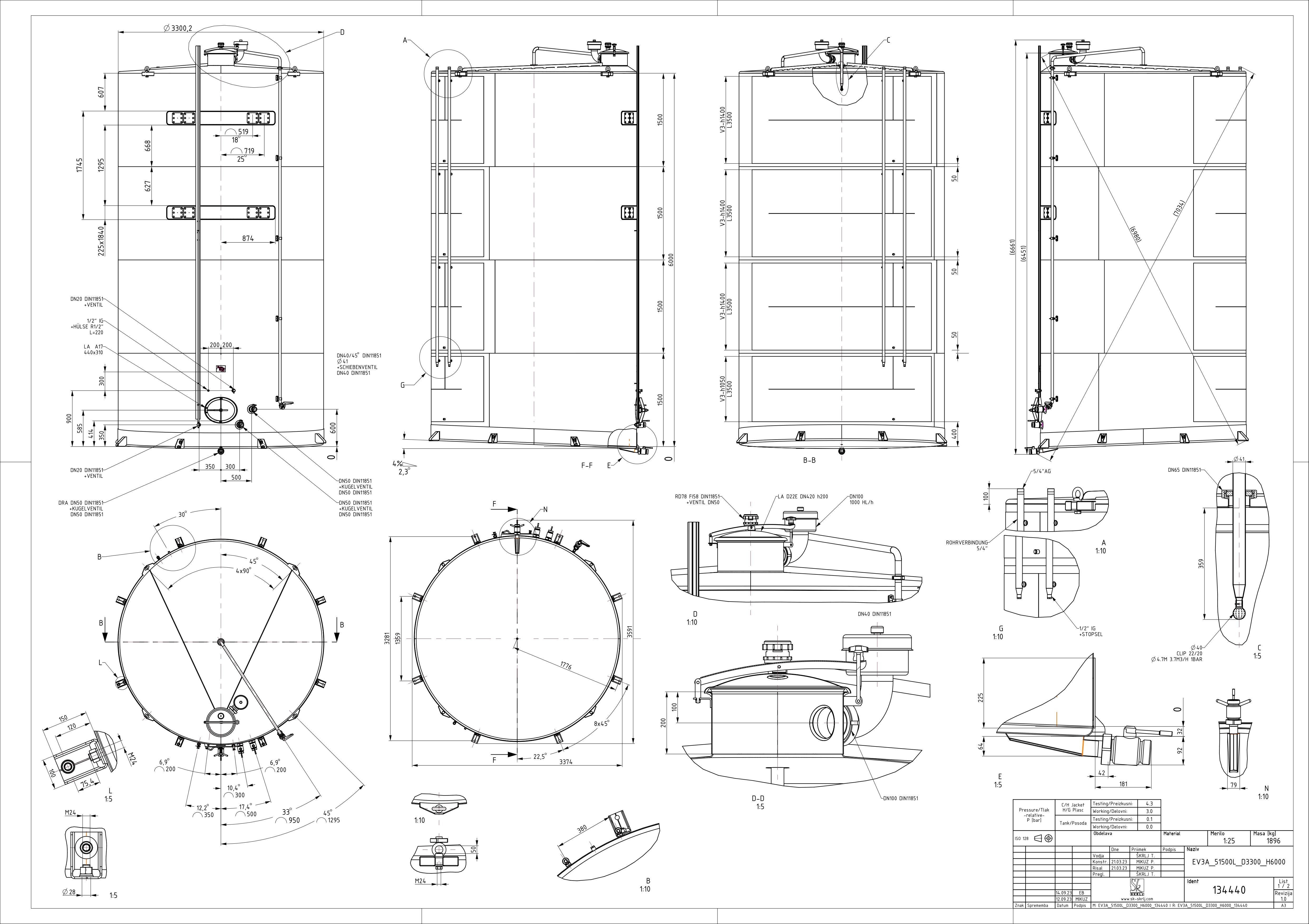

Classic storage tank with double jacket
EV3A 51500 D3300 H6000 0/ATM
Material: 134440
Nominal volume in L: 51500
Geometrical volume [l]: 51999
Internal diameter in mm: 3300
Height H in mm: 6000
Height Z in mm: 6500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
