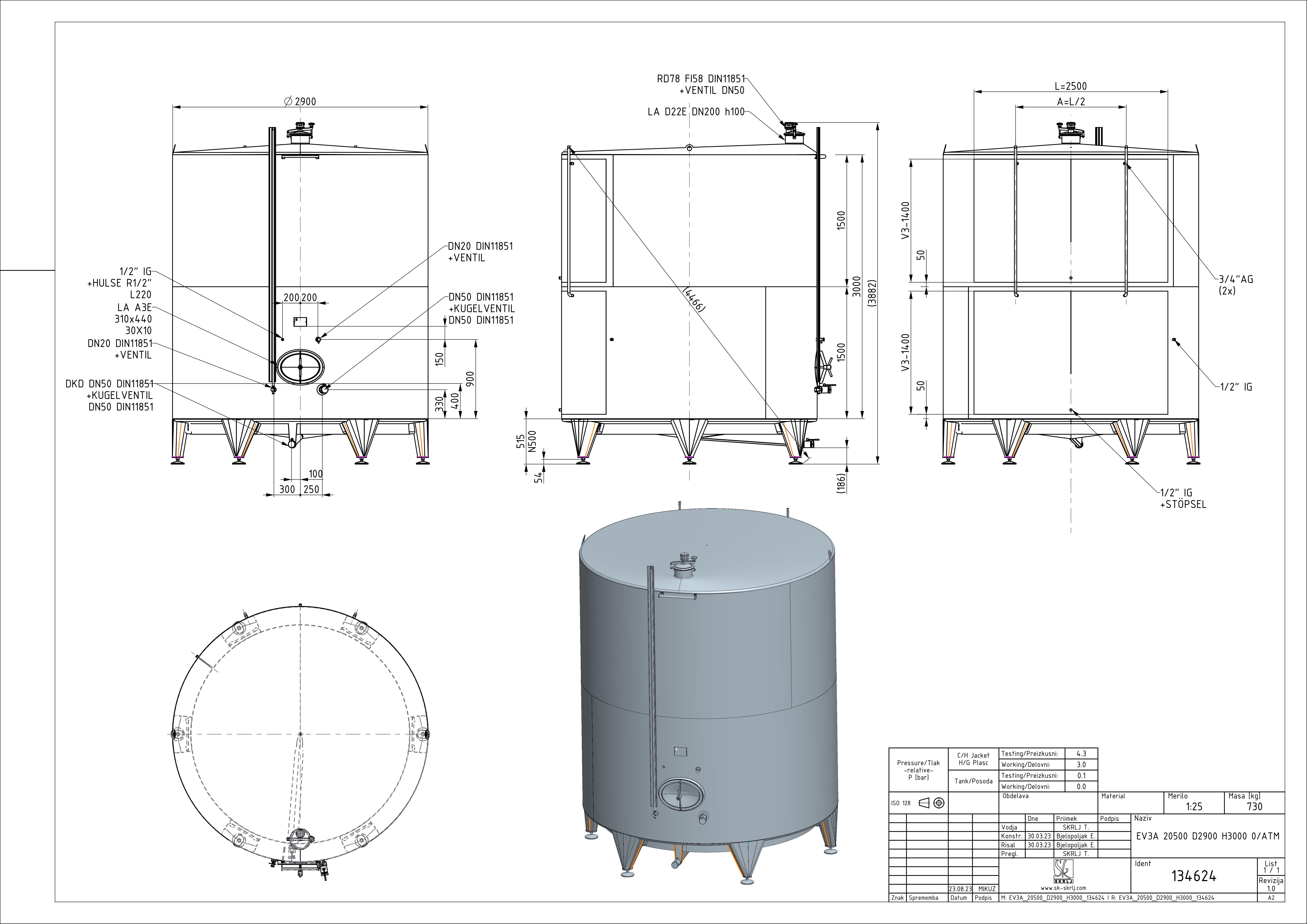

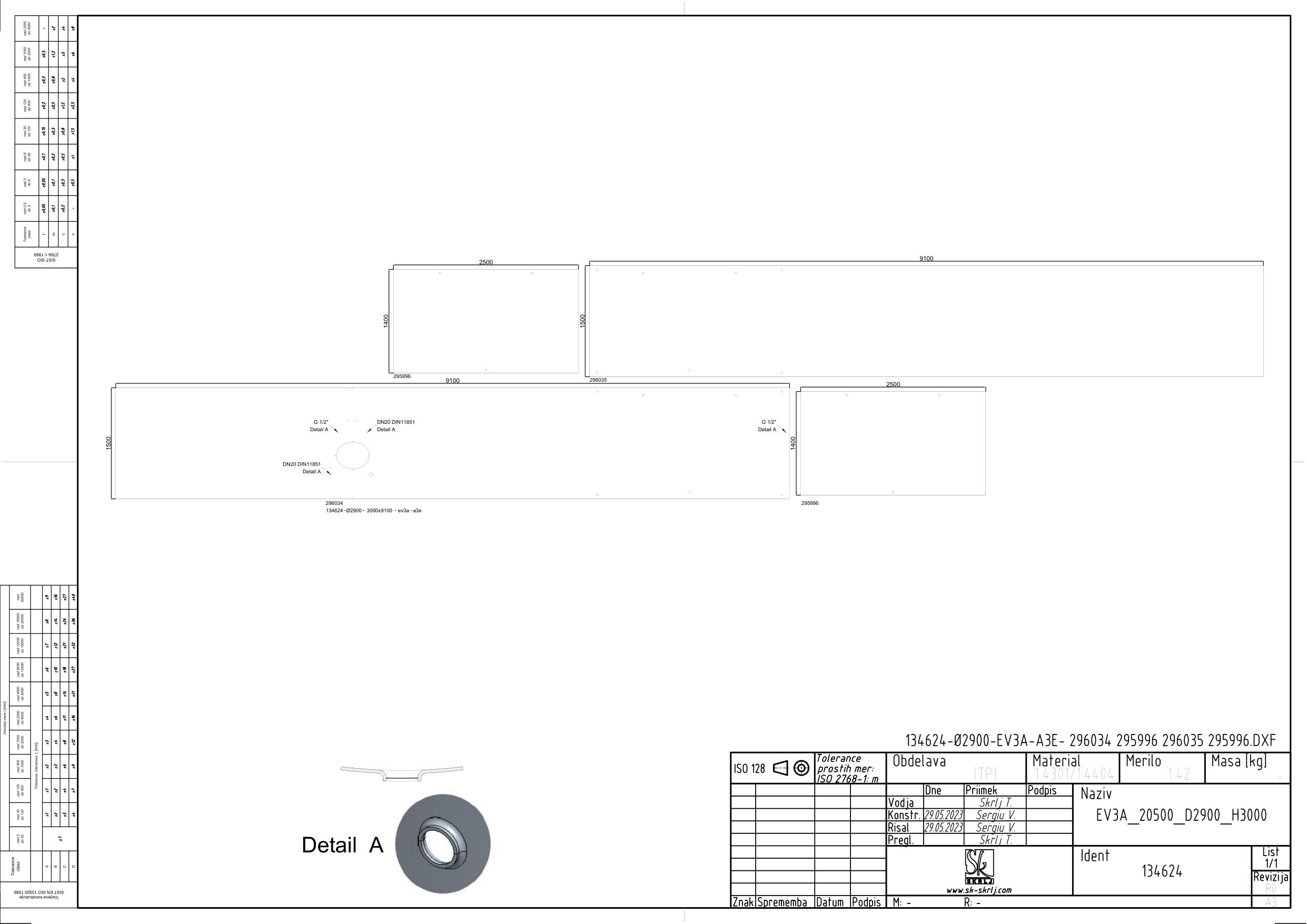

Classic storage tank with double jacket
EV3A 20500 D2900 H3000 0/ATM
Material: 134624
Nominal volume in L: 20500
Geometrical volume [l]: 20800
Internal diameter in mm: 2900
Height H in mm: 3000
Height Z in mm: 4000
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
