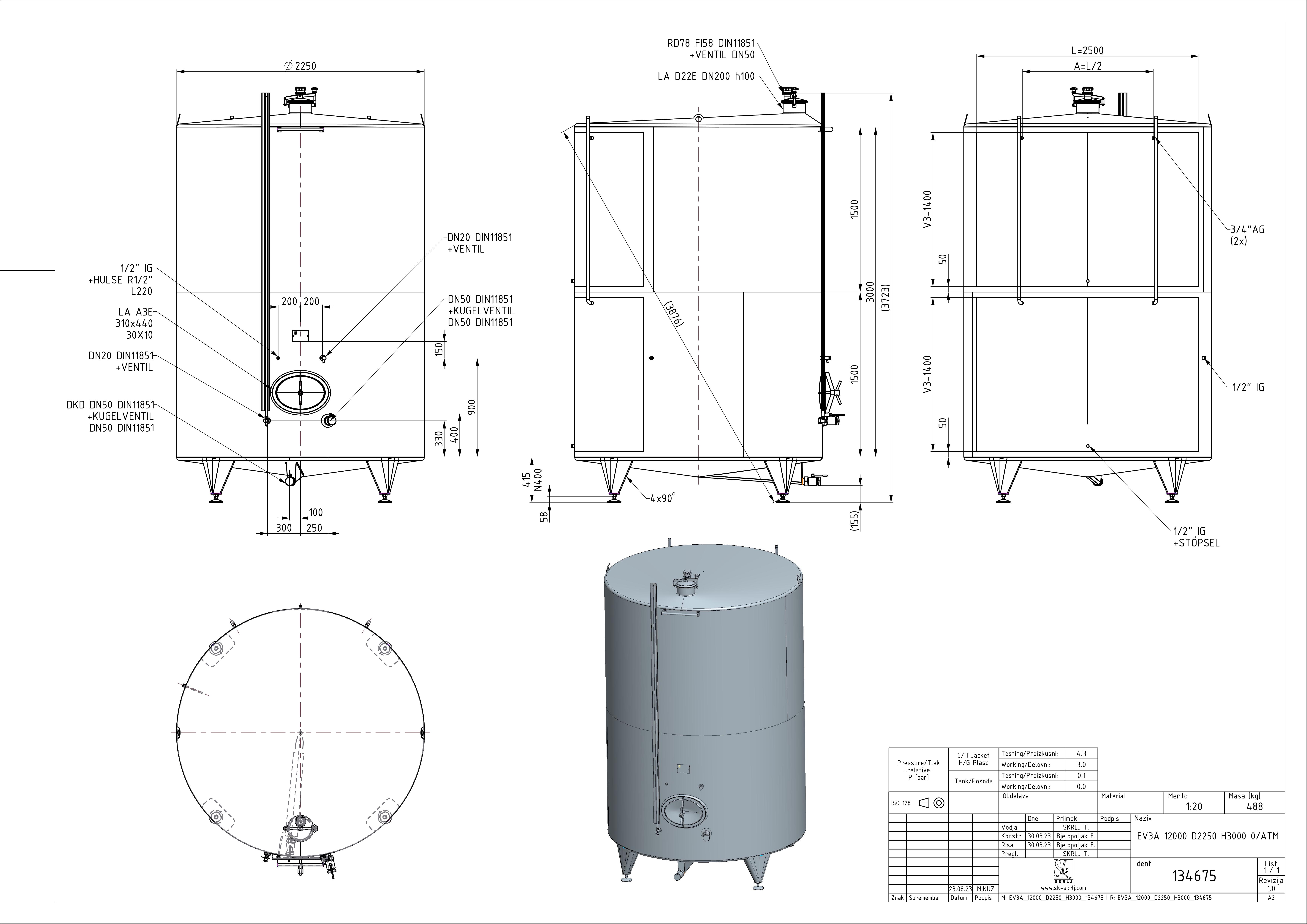

Classic storage tank with double jacket
EV3A 12000 D2250 H3000 0/ATM
Material: 134675
Nominal volume in L: 12000
Geometrical volume [l]: 12482
Internal diameter in mm: 2250
Height H in mm: 3000
Height Z in mm: 3900
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
