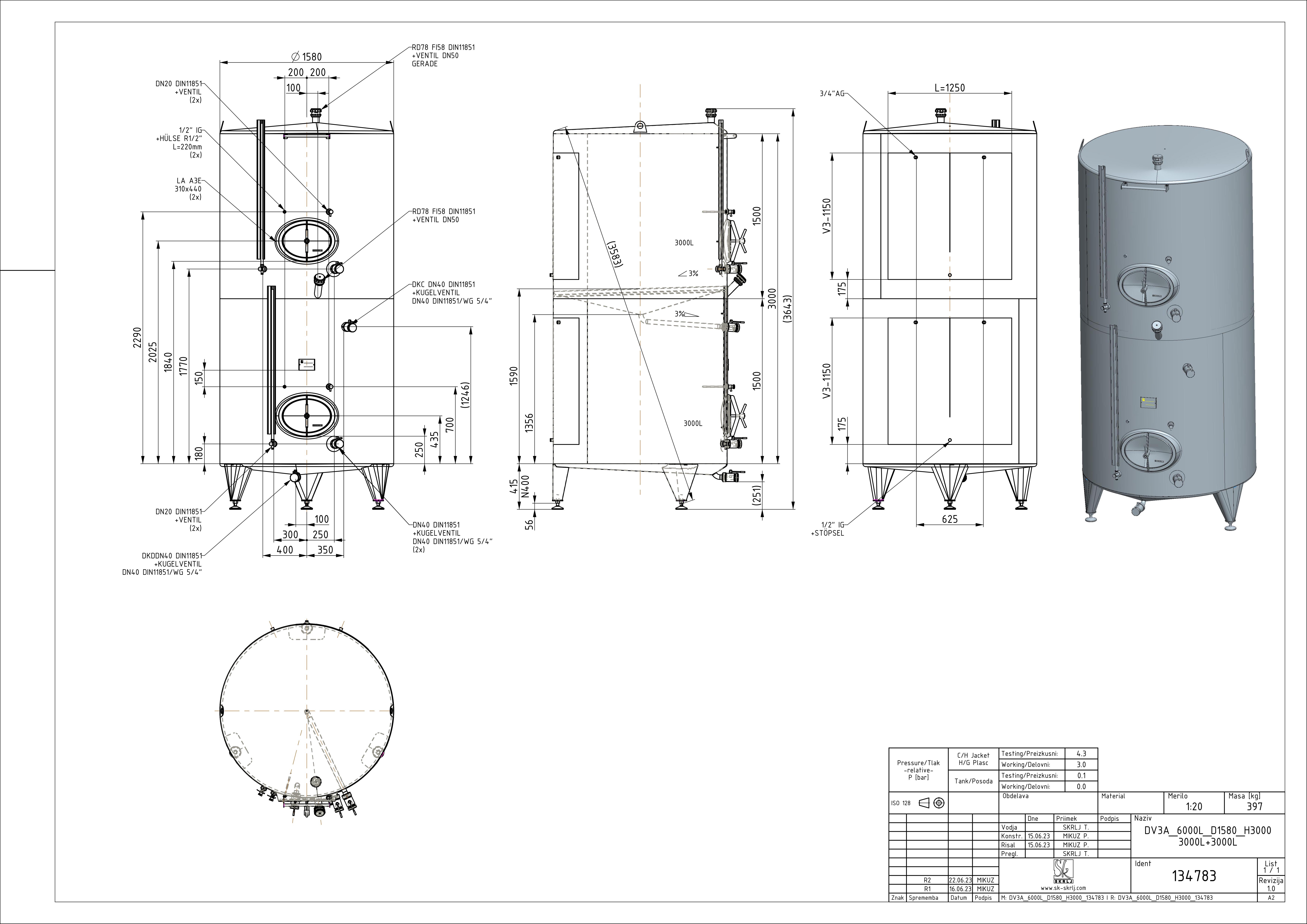

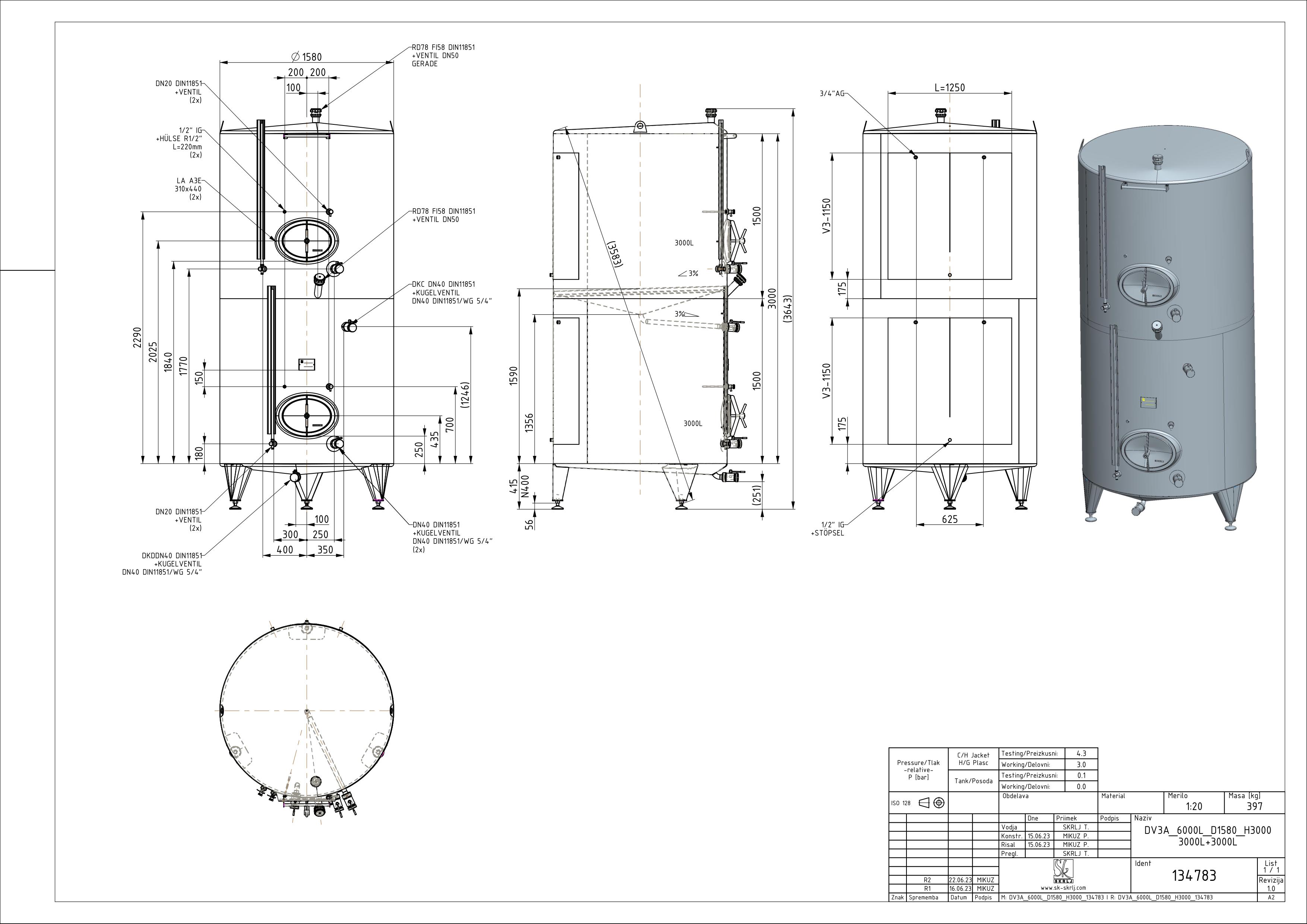

Storage tank with intermediate bottom and double jacket
DV3A 6000 D1580 H3000 0/ATM
Material: 134783
Nominal volume in L: 6000
Geometrical volume [l]: 6085
Volume below [l]: 3000
Volume above [l]: 3000
Internal diameter in mm: 1580
Height H in mm: 3000
Height Z in mm: 3650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
