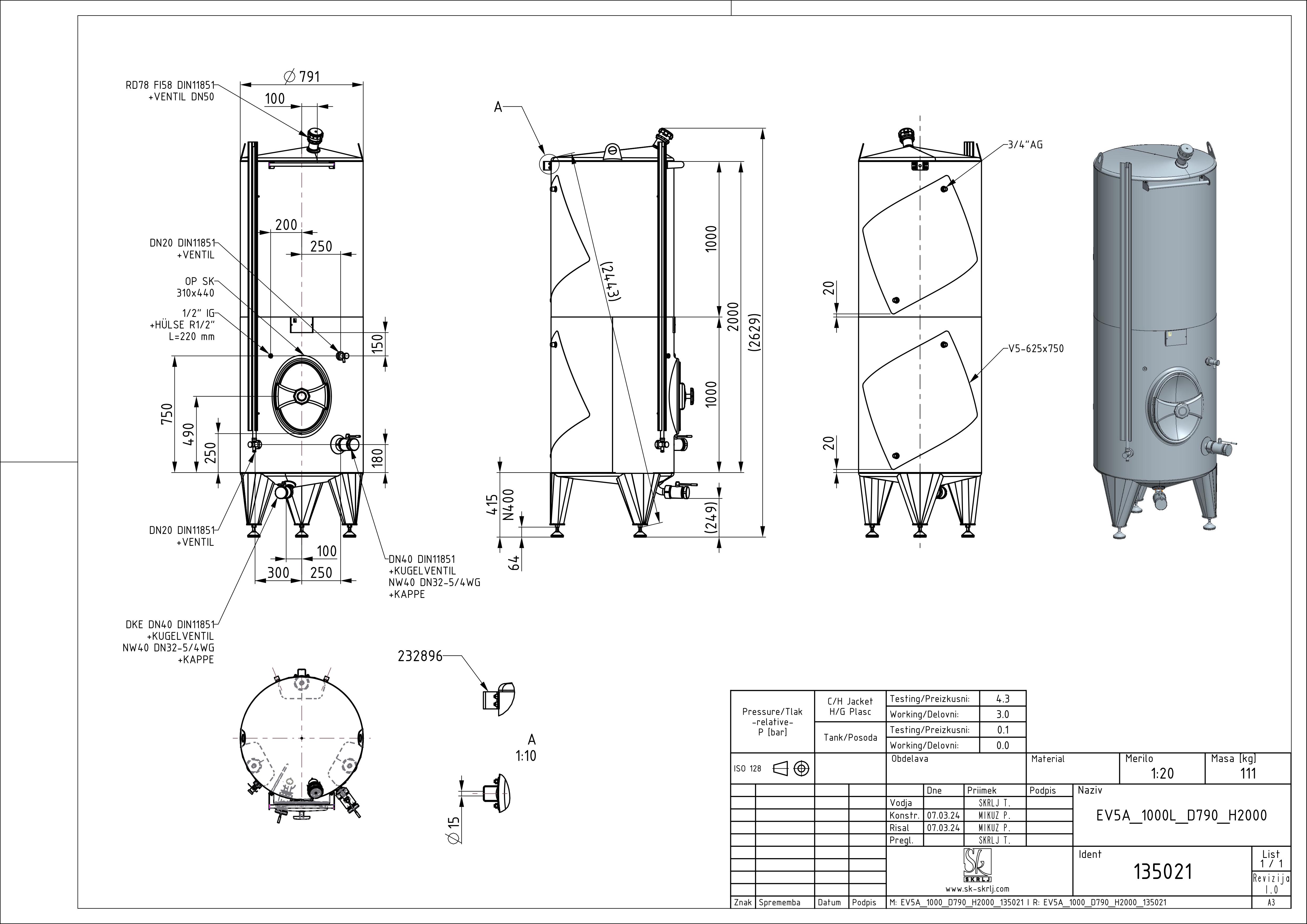

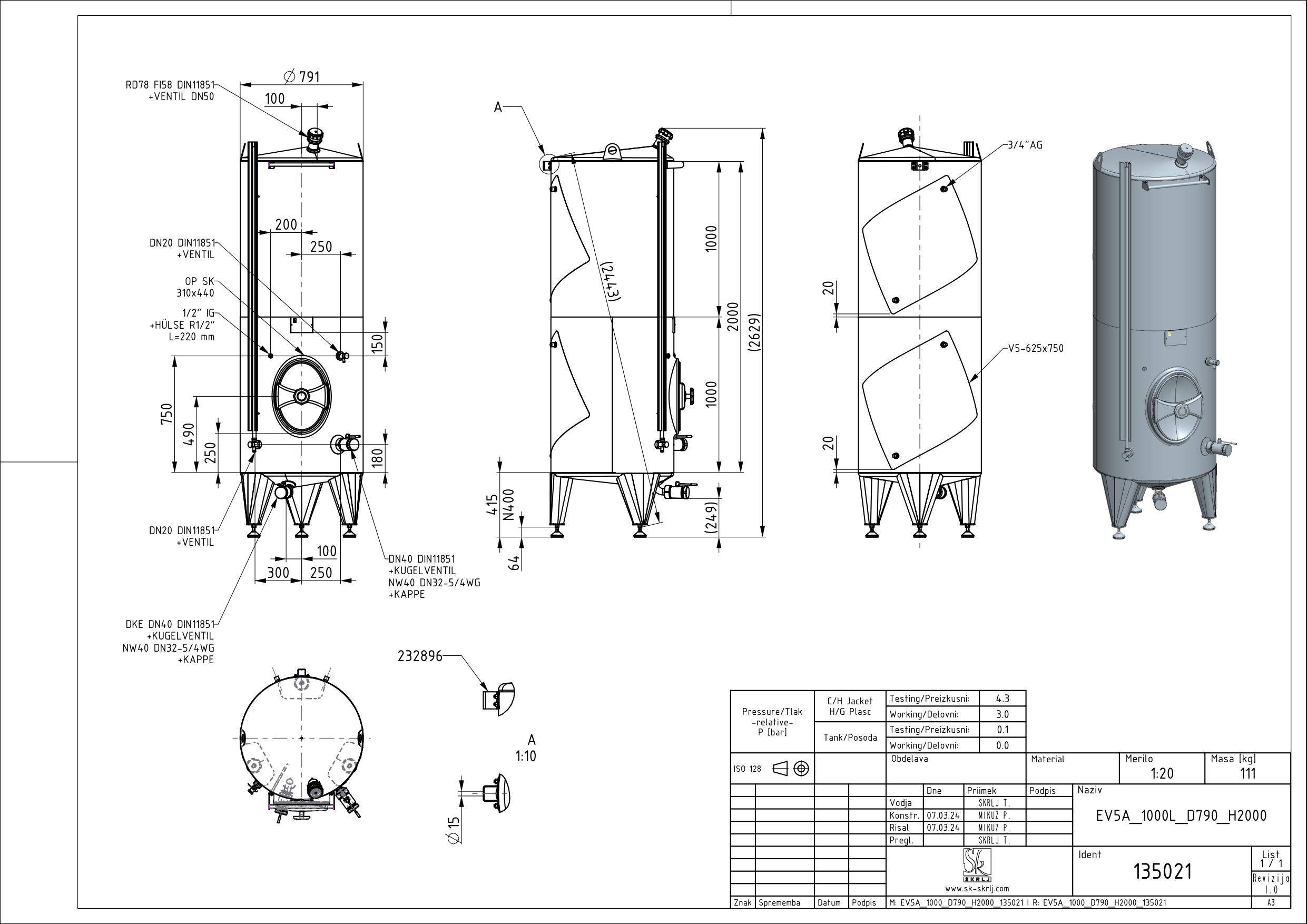

Classic storage tank with double jacket
EV5A 1000 D790 H2000/ATM
Material: 135021
Nominal volume in L: 1000
Geometrical volume [l]: 1031
Internal diameter in mm: 790
Height H in mm: 2000
Height Z in mm: 2650
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
