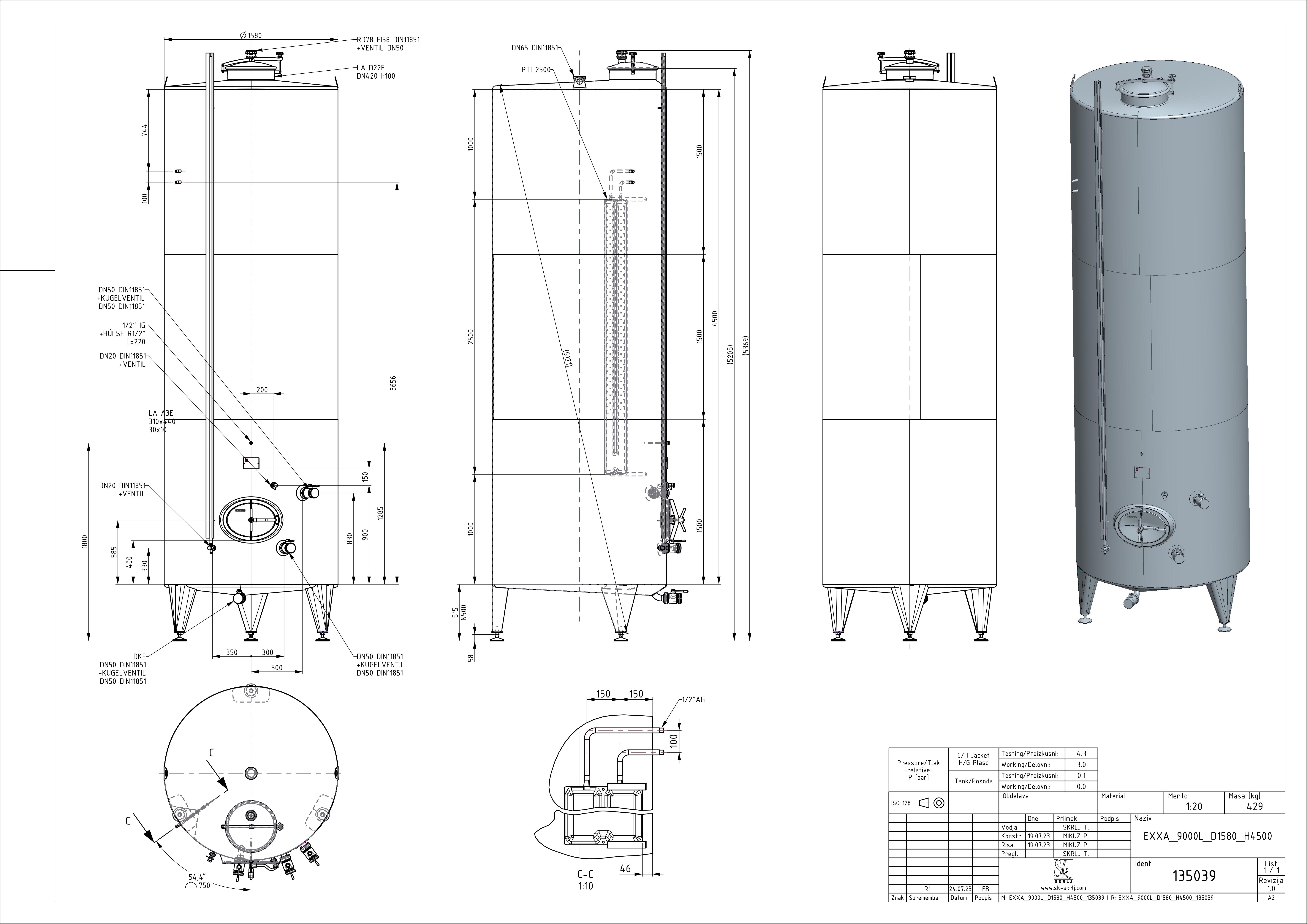

Classic storage tank
EXXA 9000 D1580 H4500 0/ATM
Material: 135039
Nominal volume in L: 9000
Geometrical volume [l]: 9021
Internal diameter in mm: 1580
Jacket height H in mm: 4500
Total height Z in mm: 5150
Type: Vertical tank - bottom KC - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
