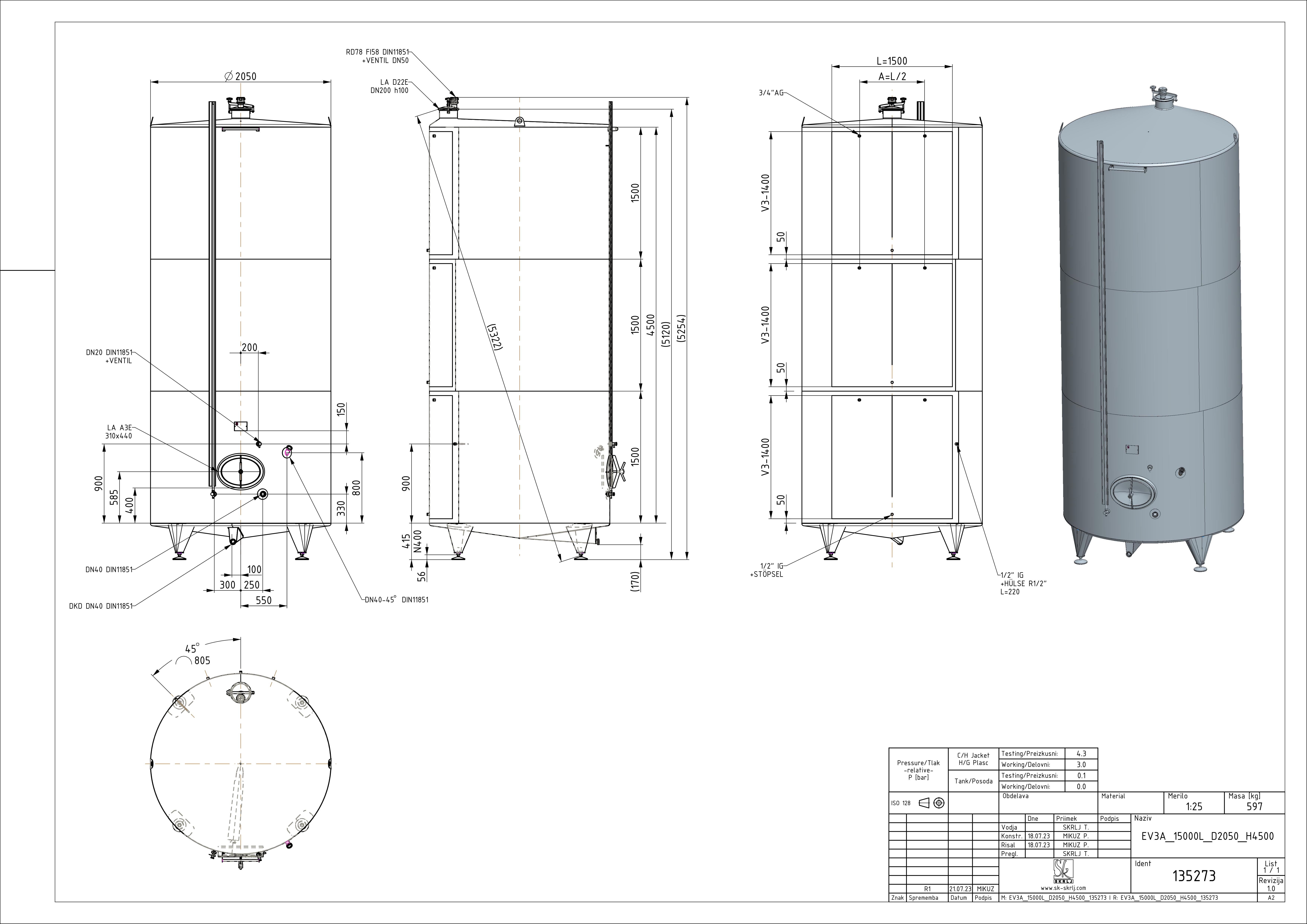

Classic storage tank with double jacket
EV3A 15000 D2050 H4500 0/ATM
Material: 135273
Nominal volume in L: 15000
Geometrical volume [l]: 15265
Internal diameter in mm: 2050
Height H in mm: 4500
Height Z in mm: 5380
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
