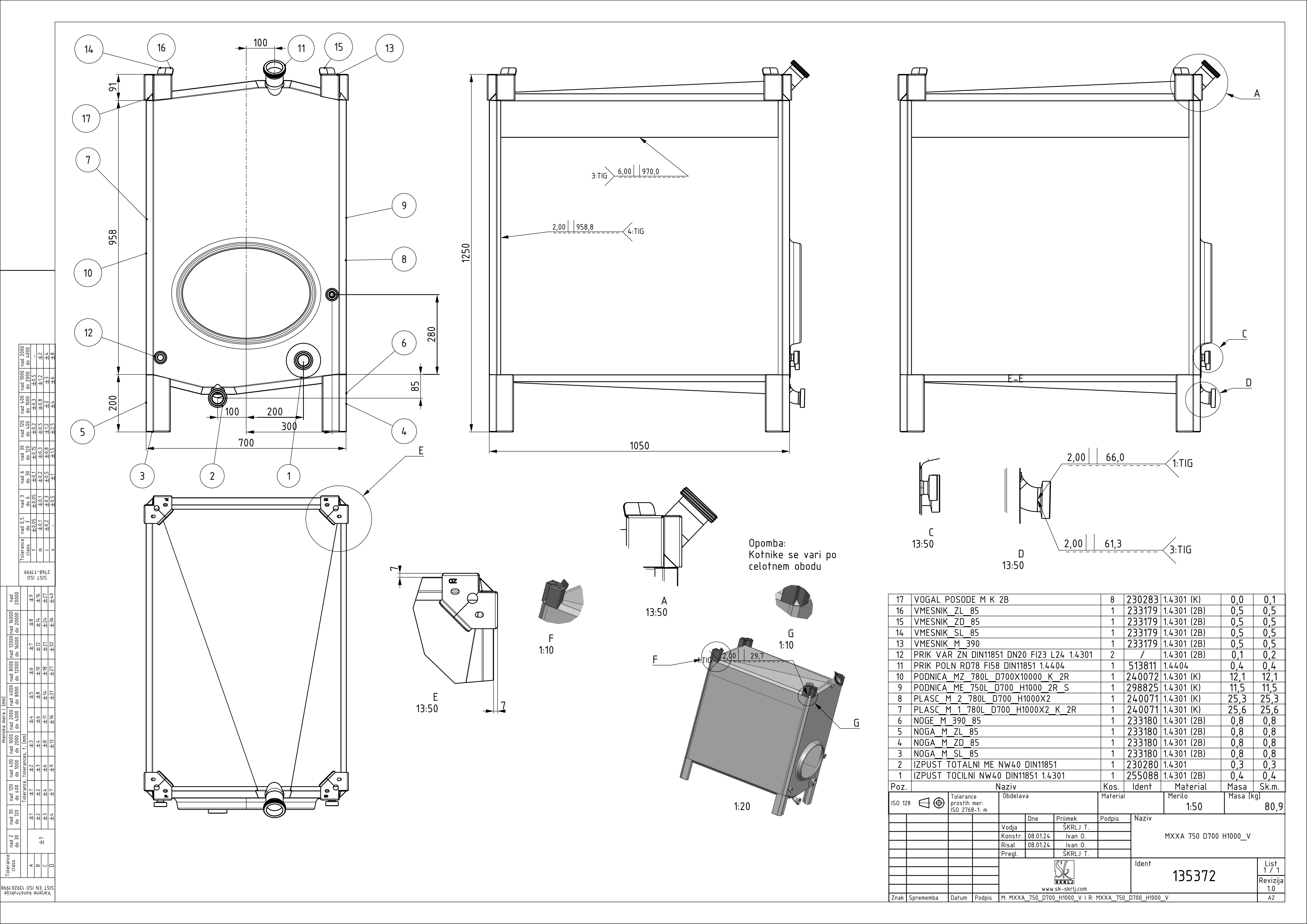

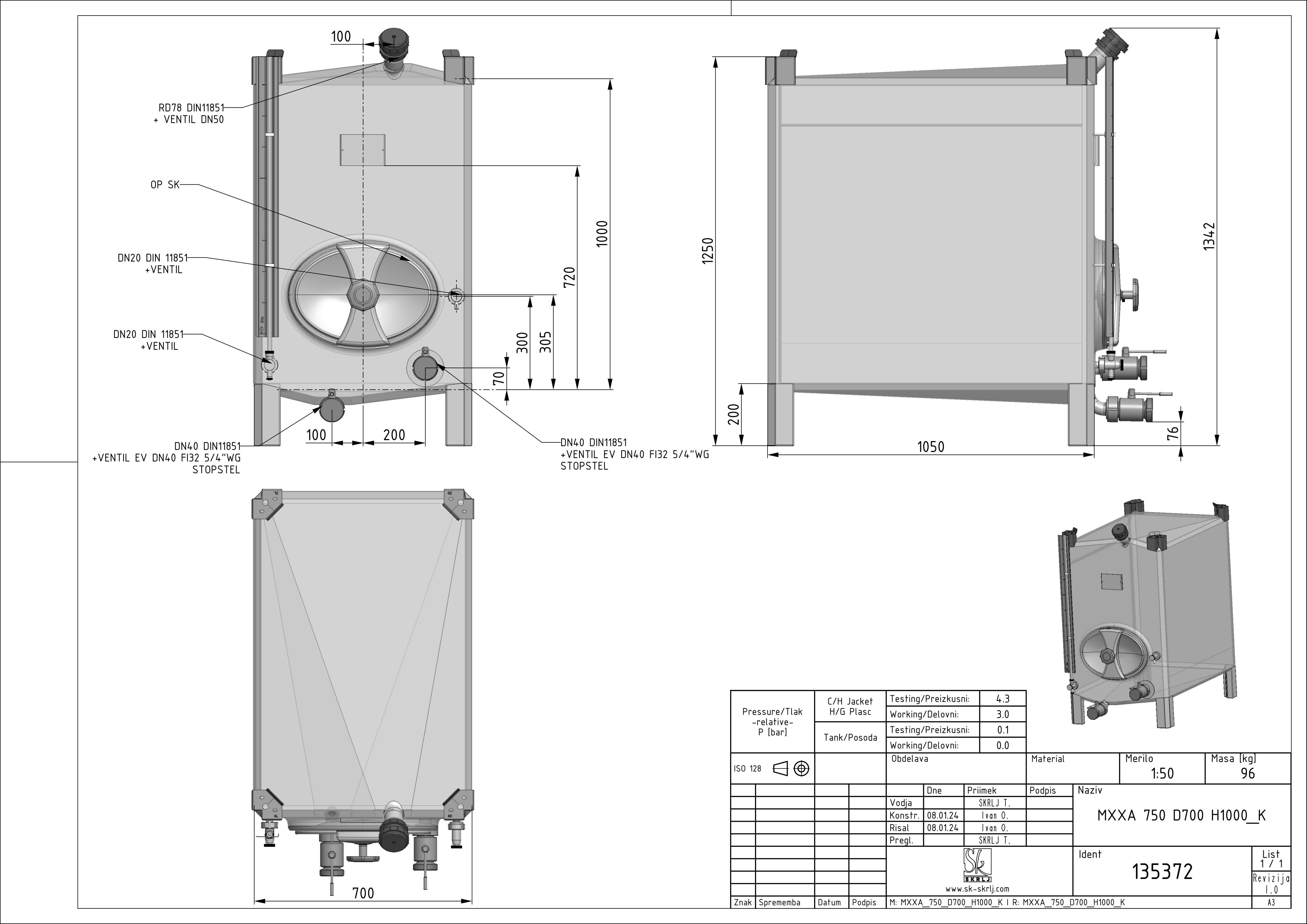

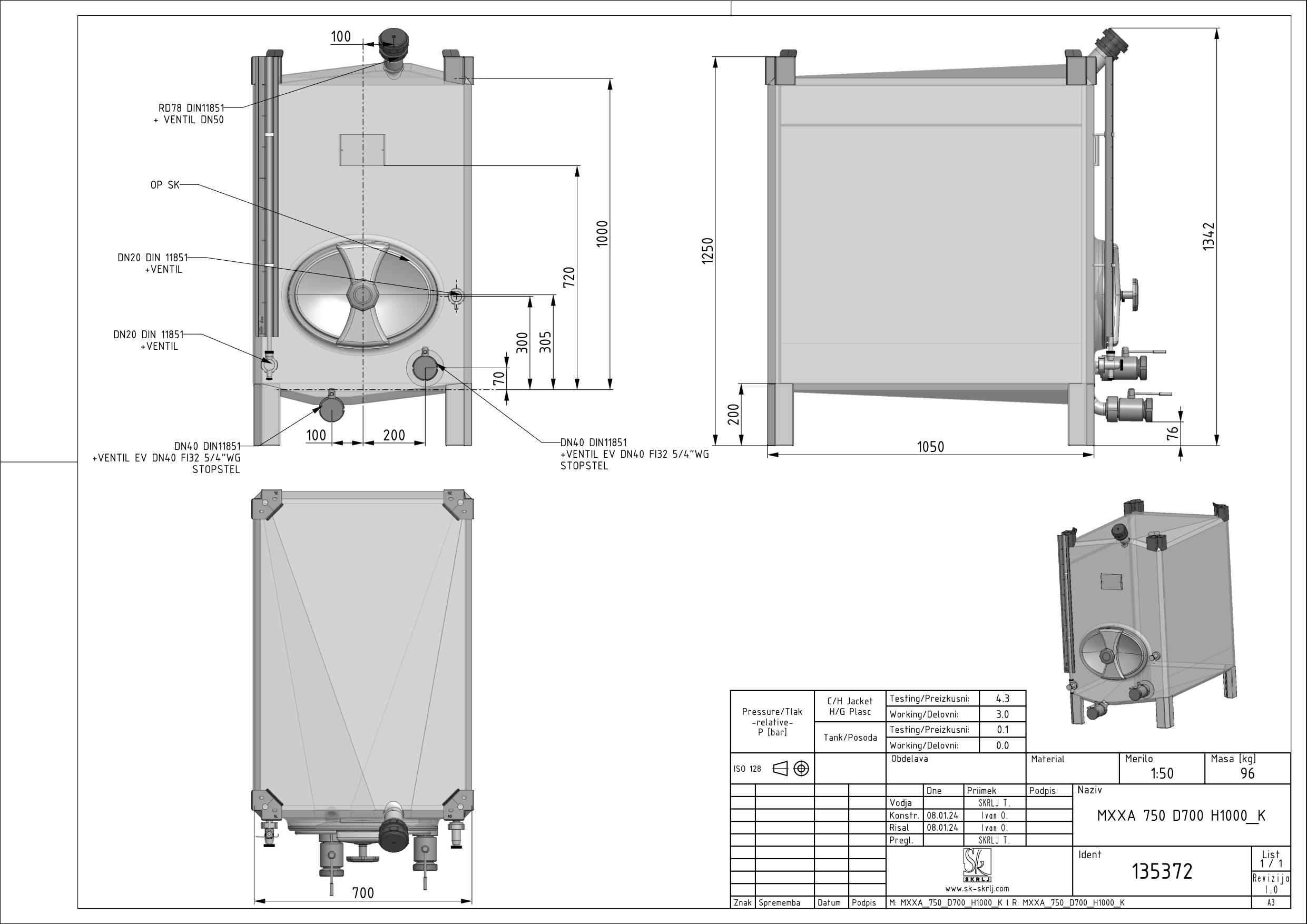

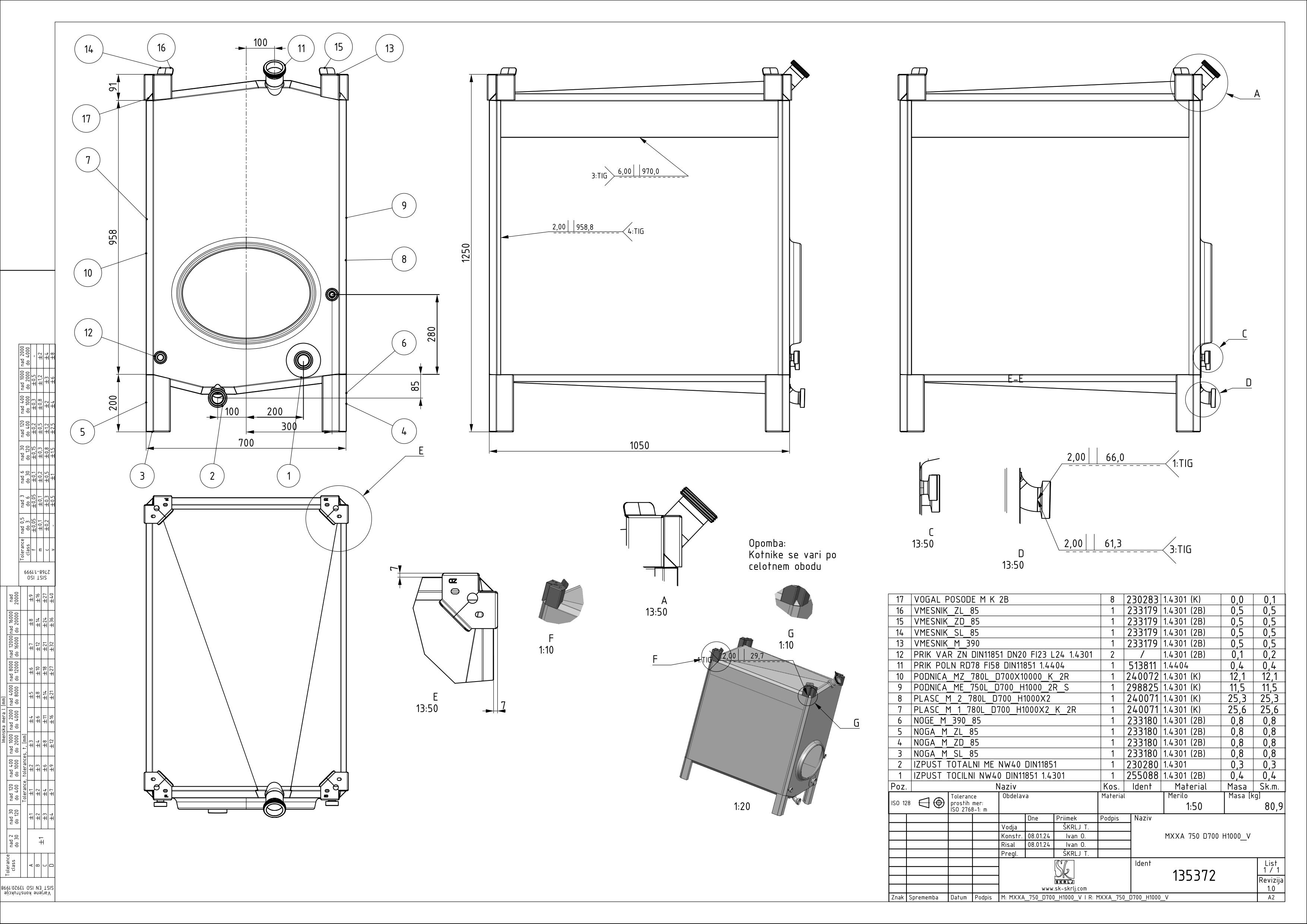

Small rectangular storage tank
MXXA 750 D700 G1050 H1000 0/ATM
Material: 135372
Nominal volume in L: 750
Width D in mm: 700
Depth G in mm: 1050
Height H in mm: 1000
Height Z in mm: 1290
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
