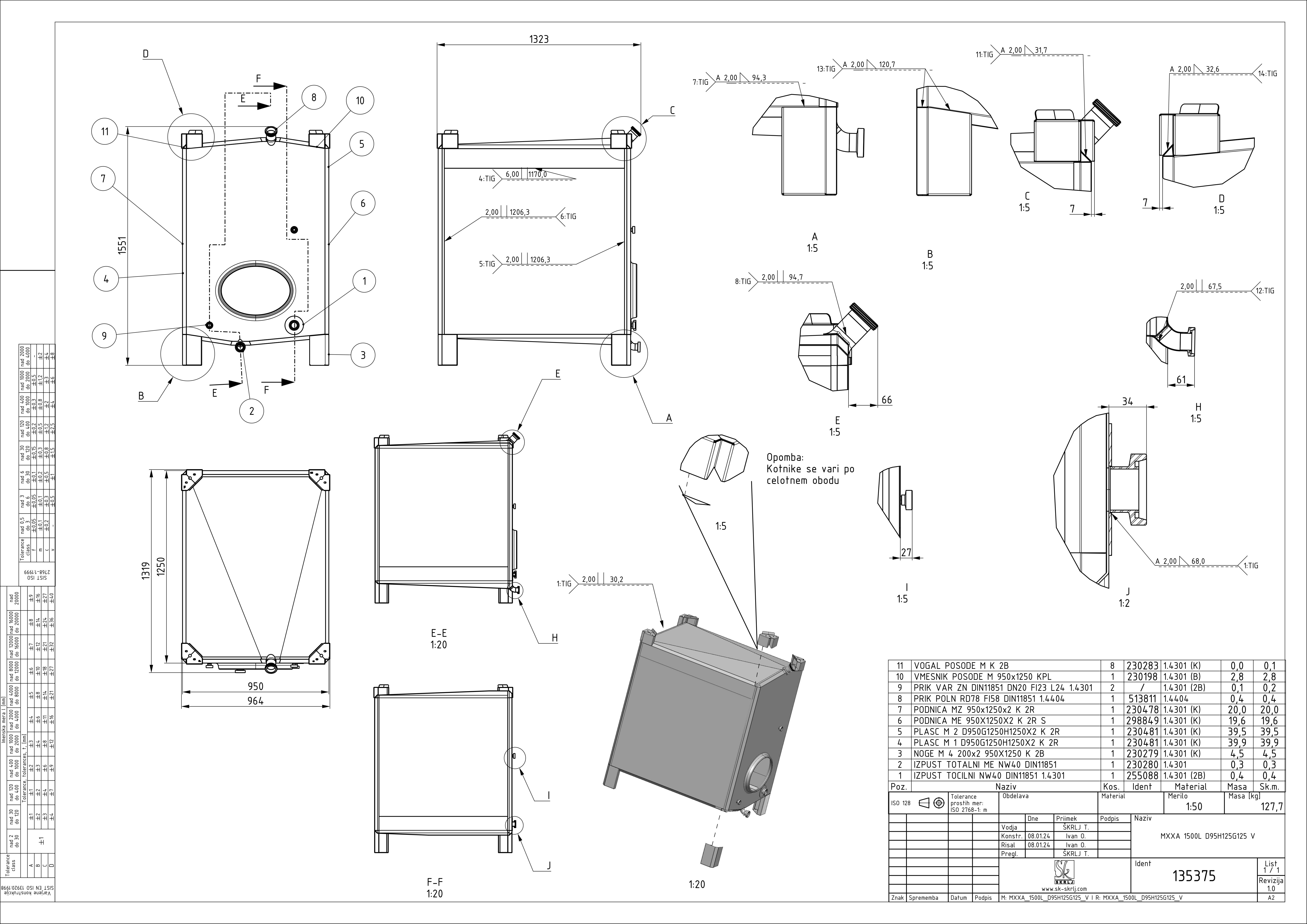

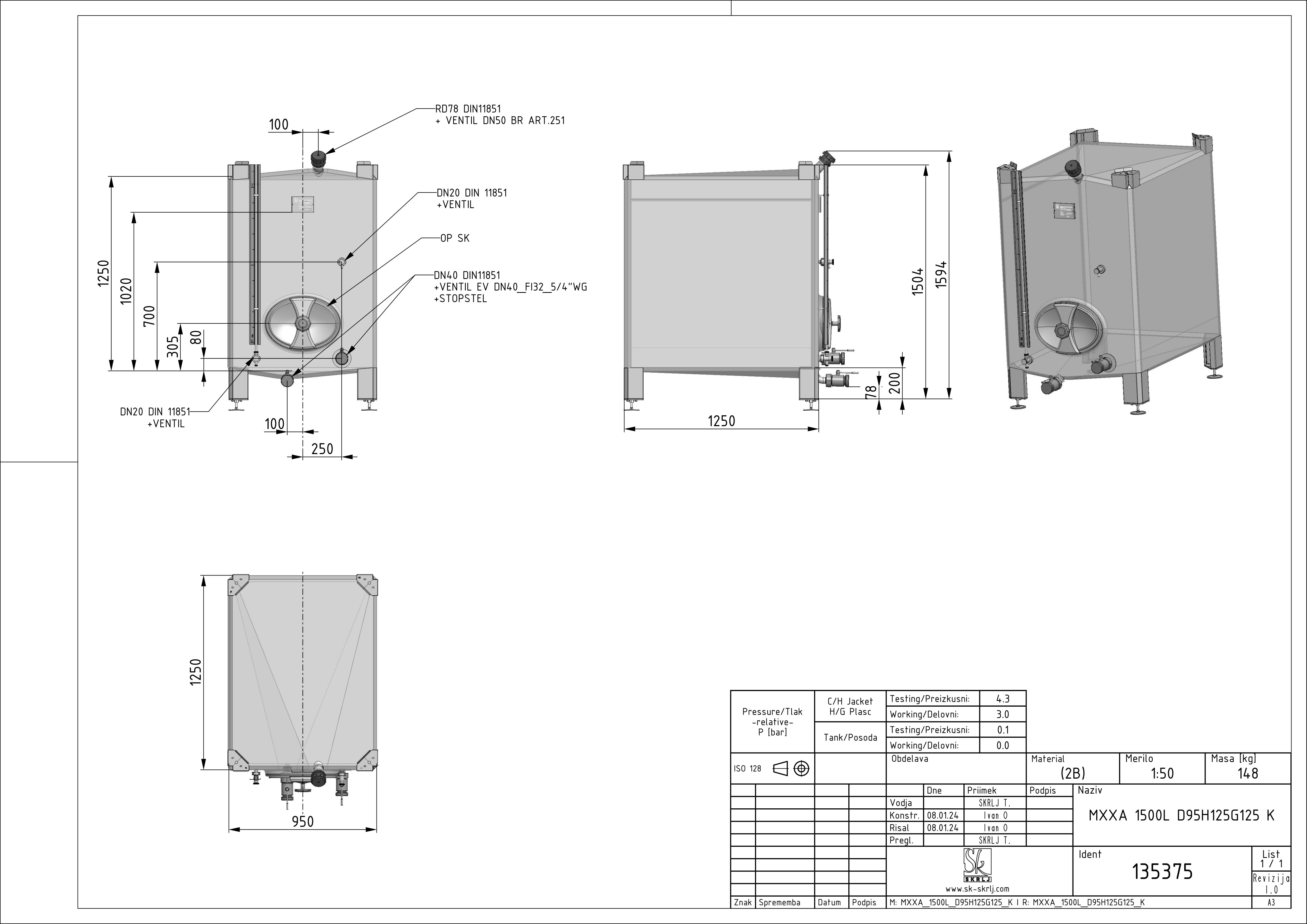

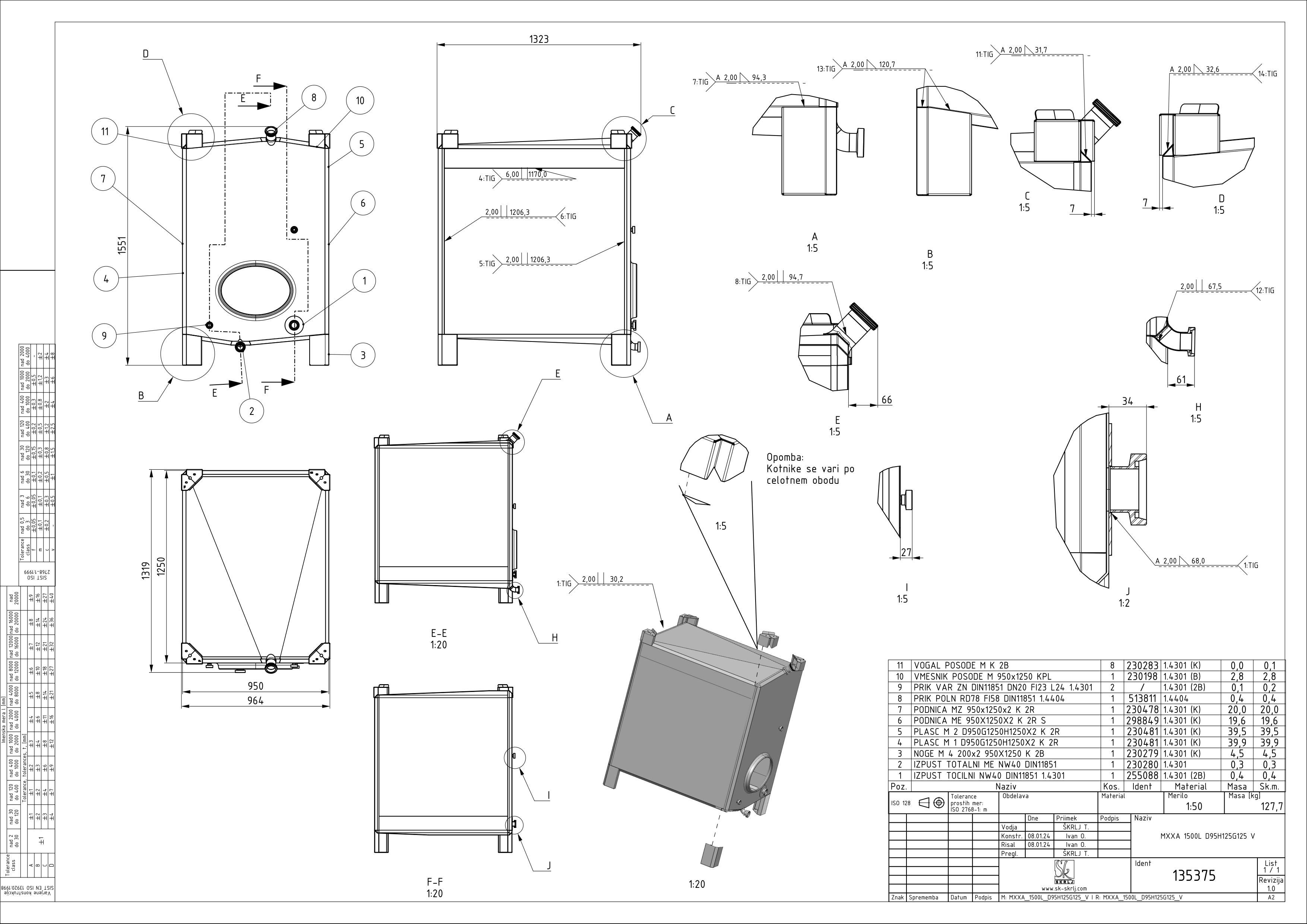

Small rectangular storage tank
MXXA 1500 D950 G1250 H1250 0/ATM
Material: 135375
Nominal volume in L: 1500
Width D in mm: 950
Depth G in mm: 1250
Height H in mm: 1250
Height Z in mm: 1550
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
