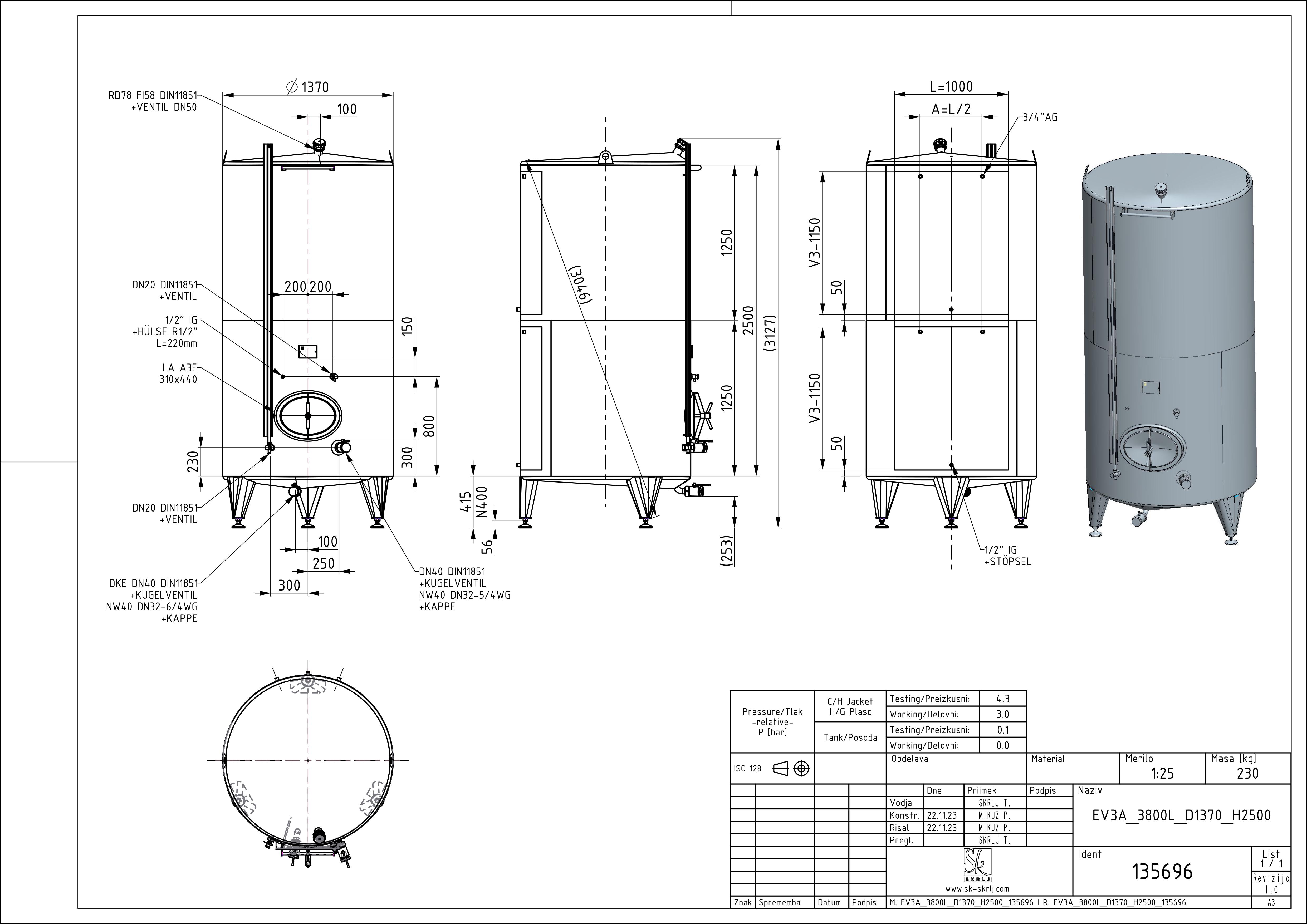

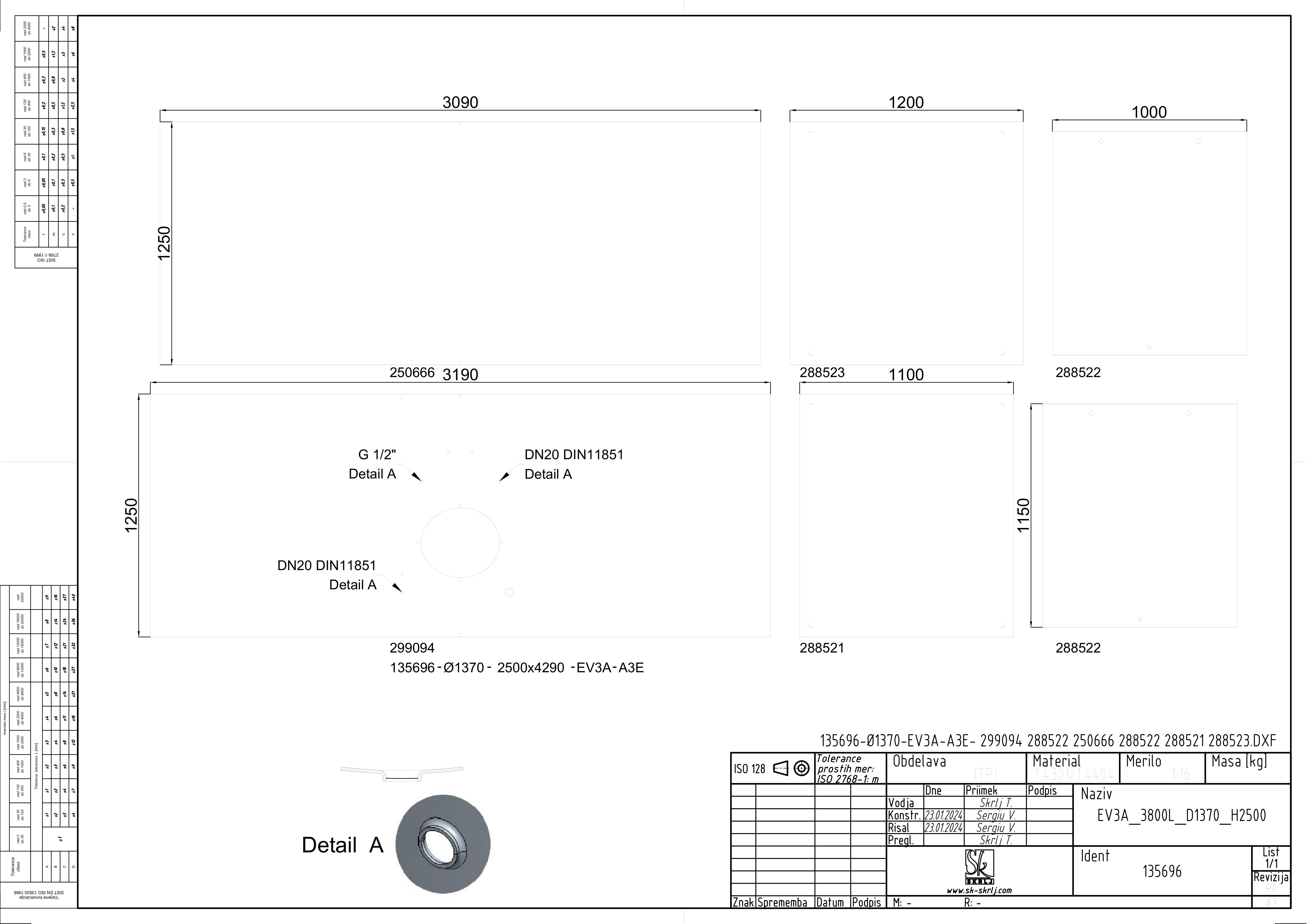

Classic storage tank with double jacket
EV3A 3800 D1370 H2500 0/ATM
Material: 135696
Nominal volume in L: 3800
Geometrical volume [l]: 3838
Internal diameter in mm: 1370
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
