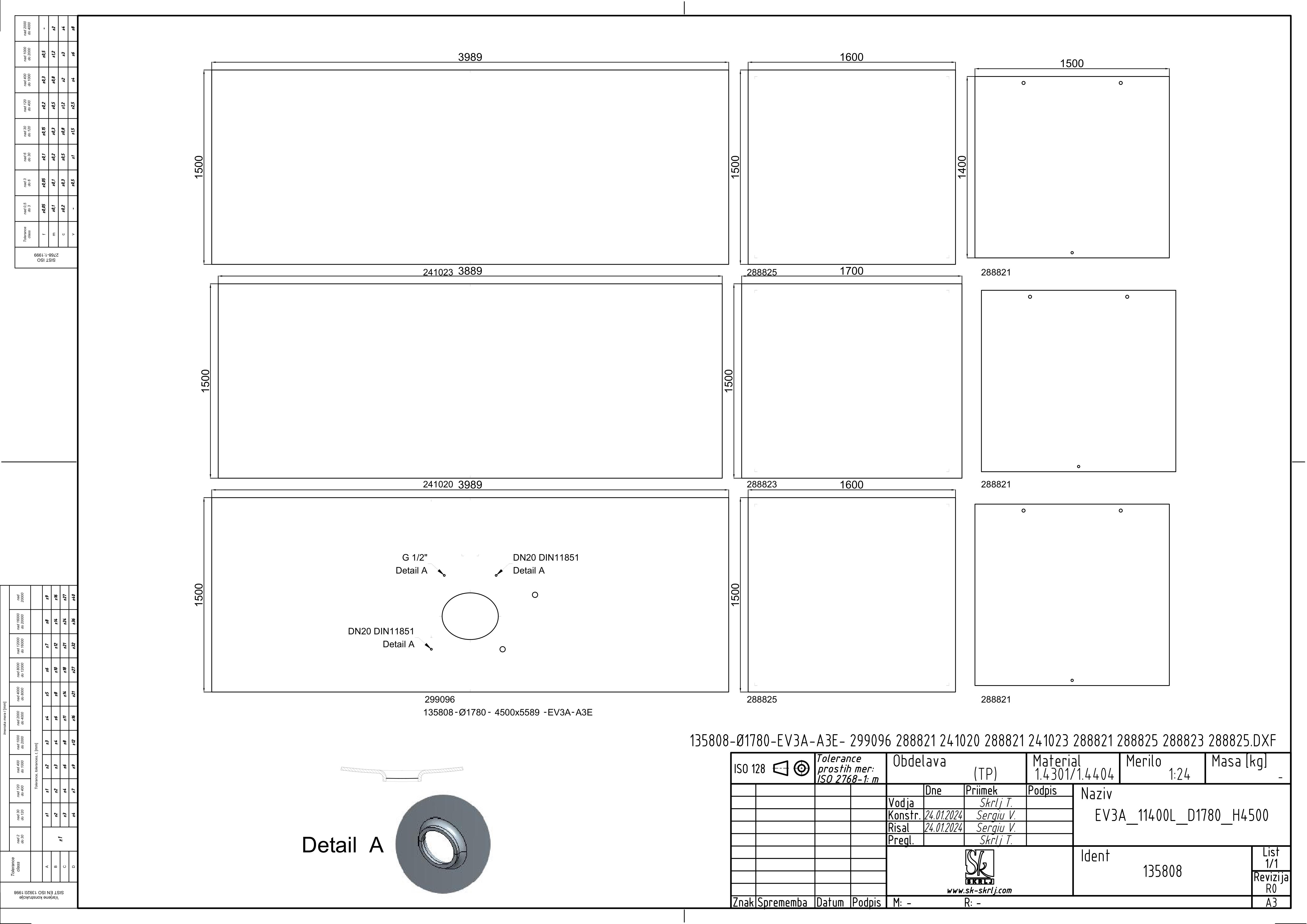

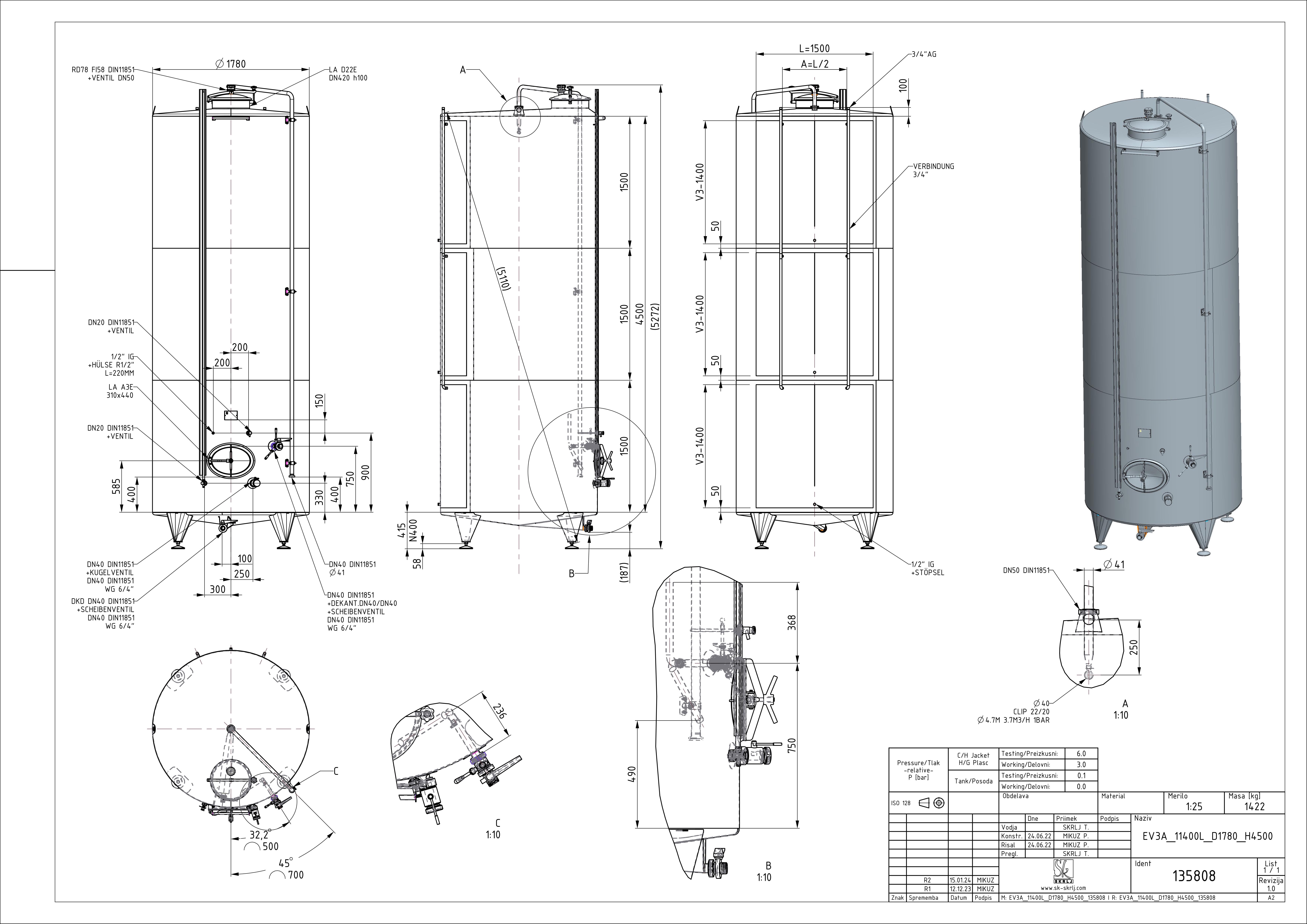

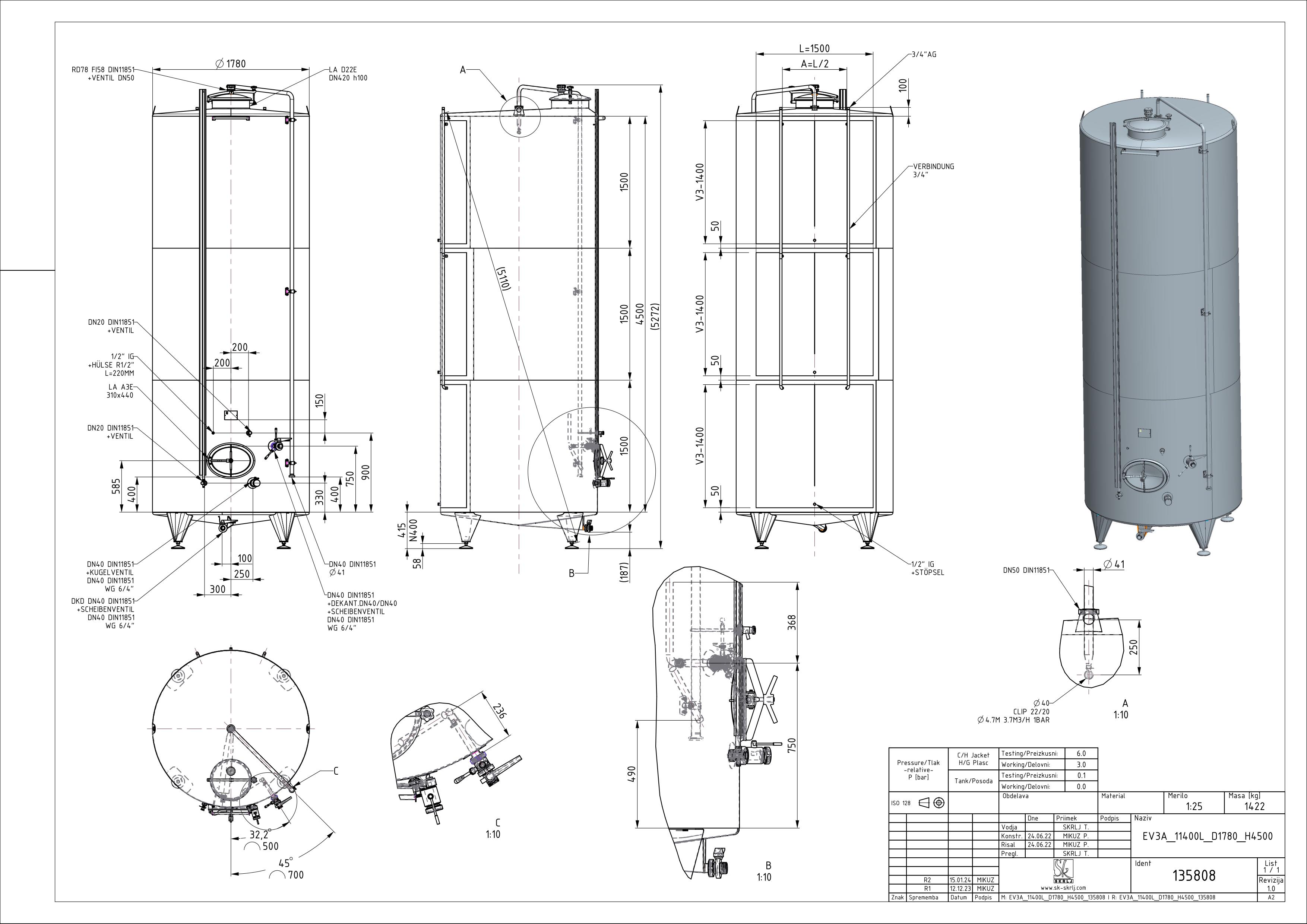

Classic storage tank with double jacket
EV3A 11400 D1780 H4500 0/ATM
Material: 135808
Nominal volume in L: 11400
Geometrical volume [l]: 11493
Internal diameter in mm: 1780
Height H in mm: 4500
Height Z in mm: 5350
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
