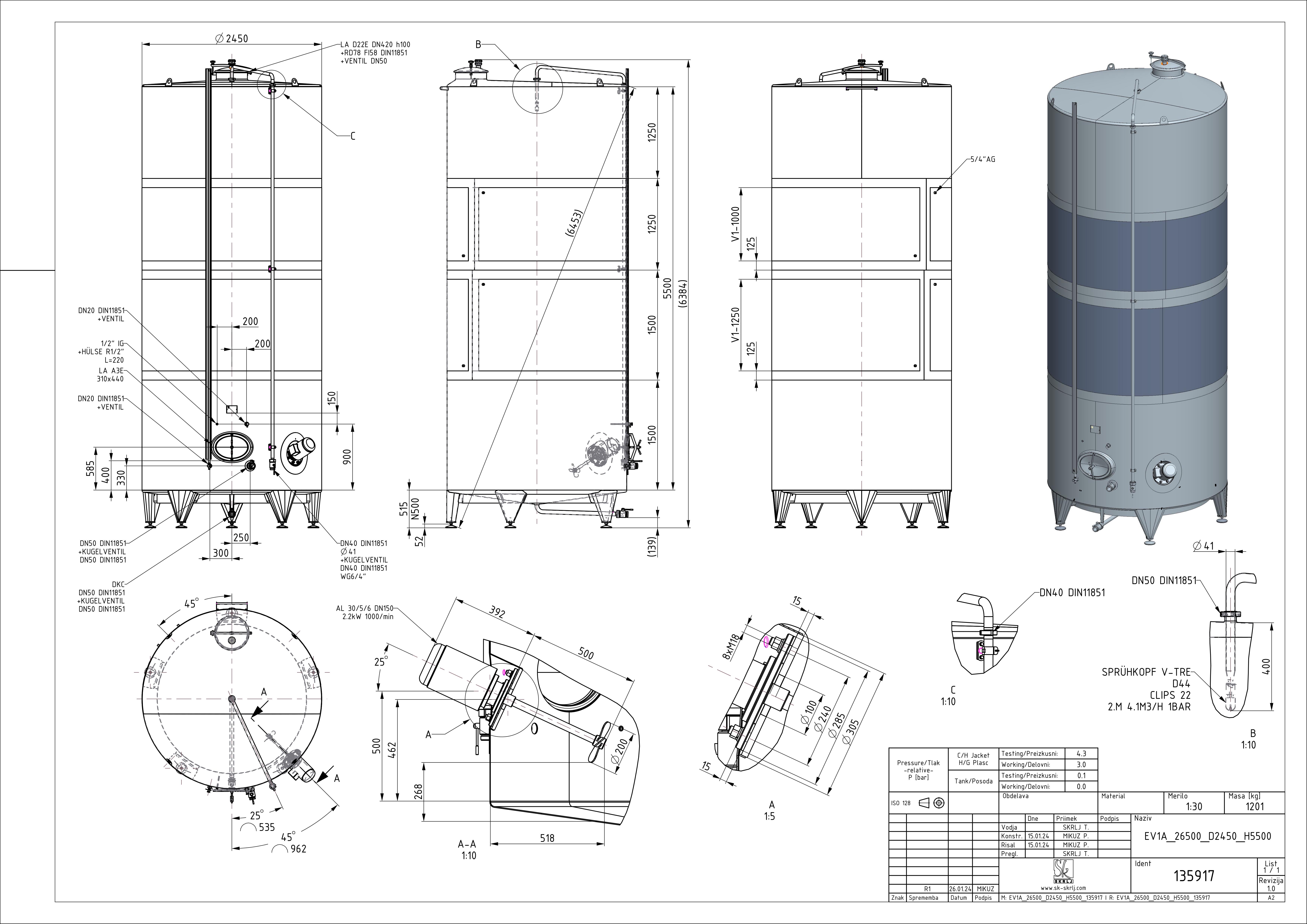

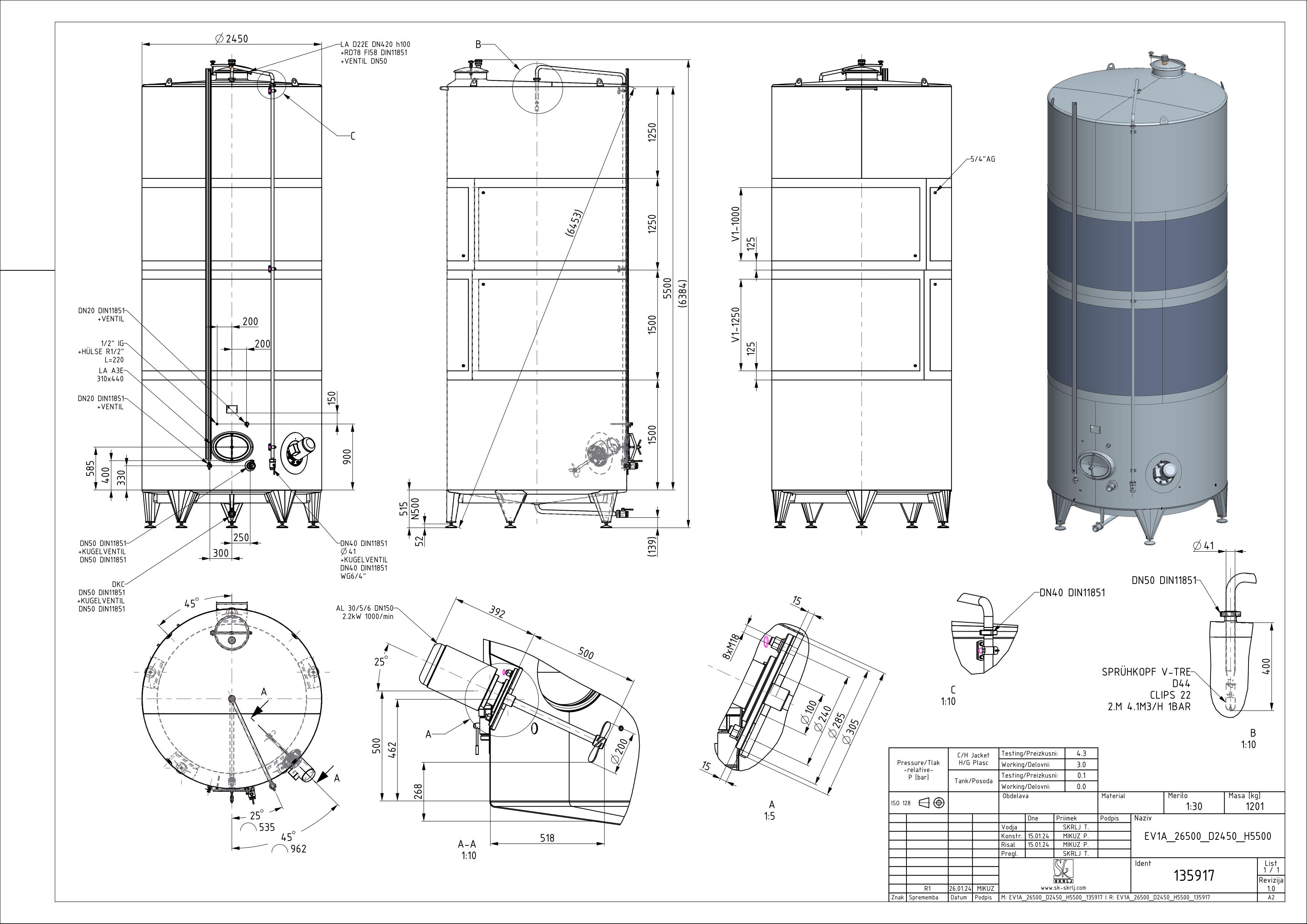

Classic storage tank with double jacket
EV1A 26500 D2450 H5500 0/ATM
Material: 135917
Nominal volume in L: 26500
Geometrical volume [l]: 26576
Internal diameter in mm: 2450
Height H in mm: 5500
Height Z in mm: 6500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
