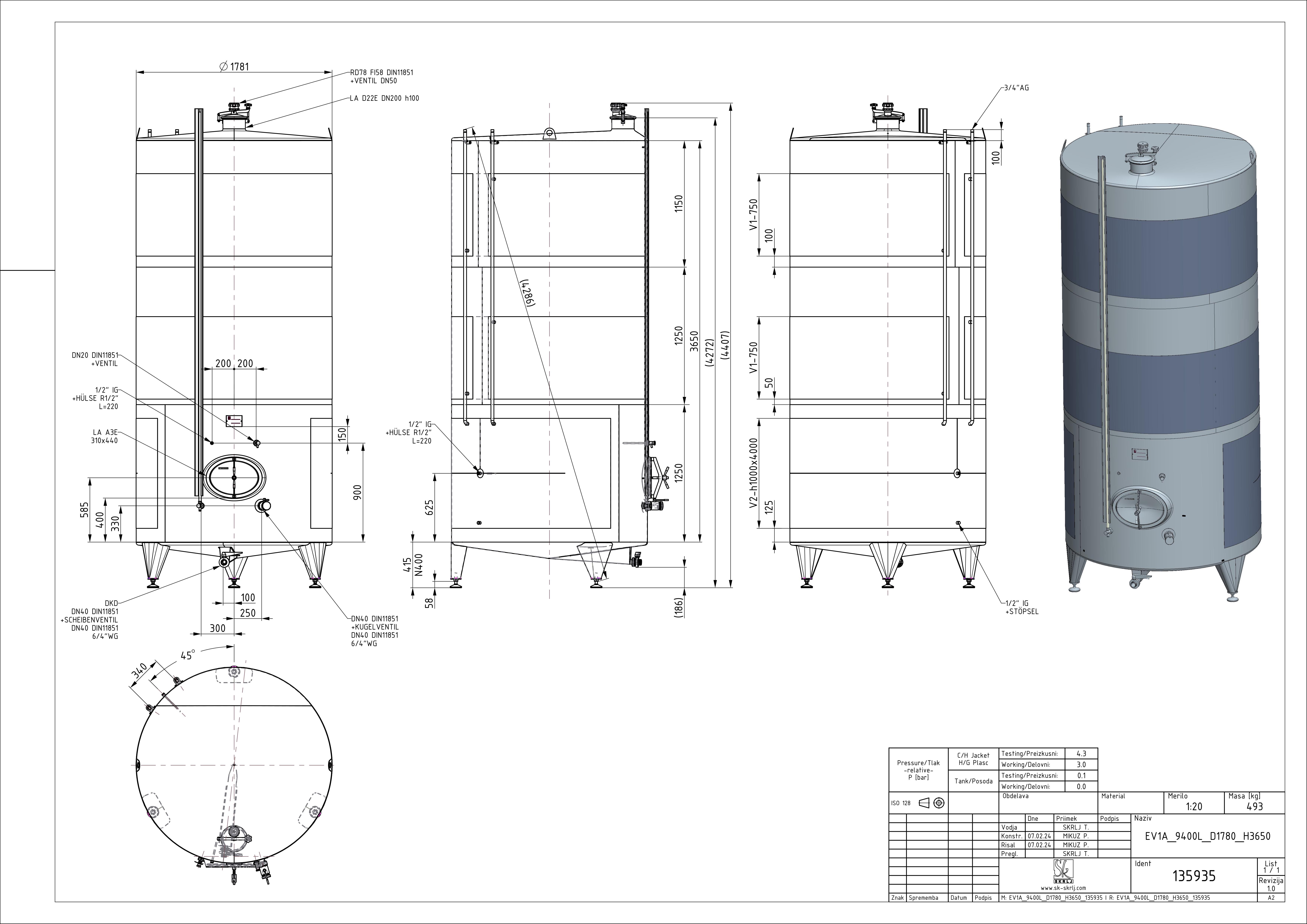

Classic storage tank with double jacket
EV1A 9400 D1780 H3650 0/ATM
Material: 135935
Nominal volume in L: 9400
Internal diameter in mm: 1780
Height H in mm: 3650
Height Z in mm: 4600
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
