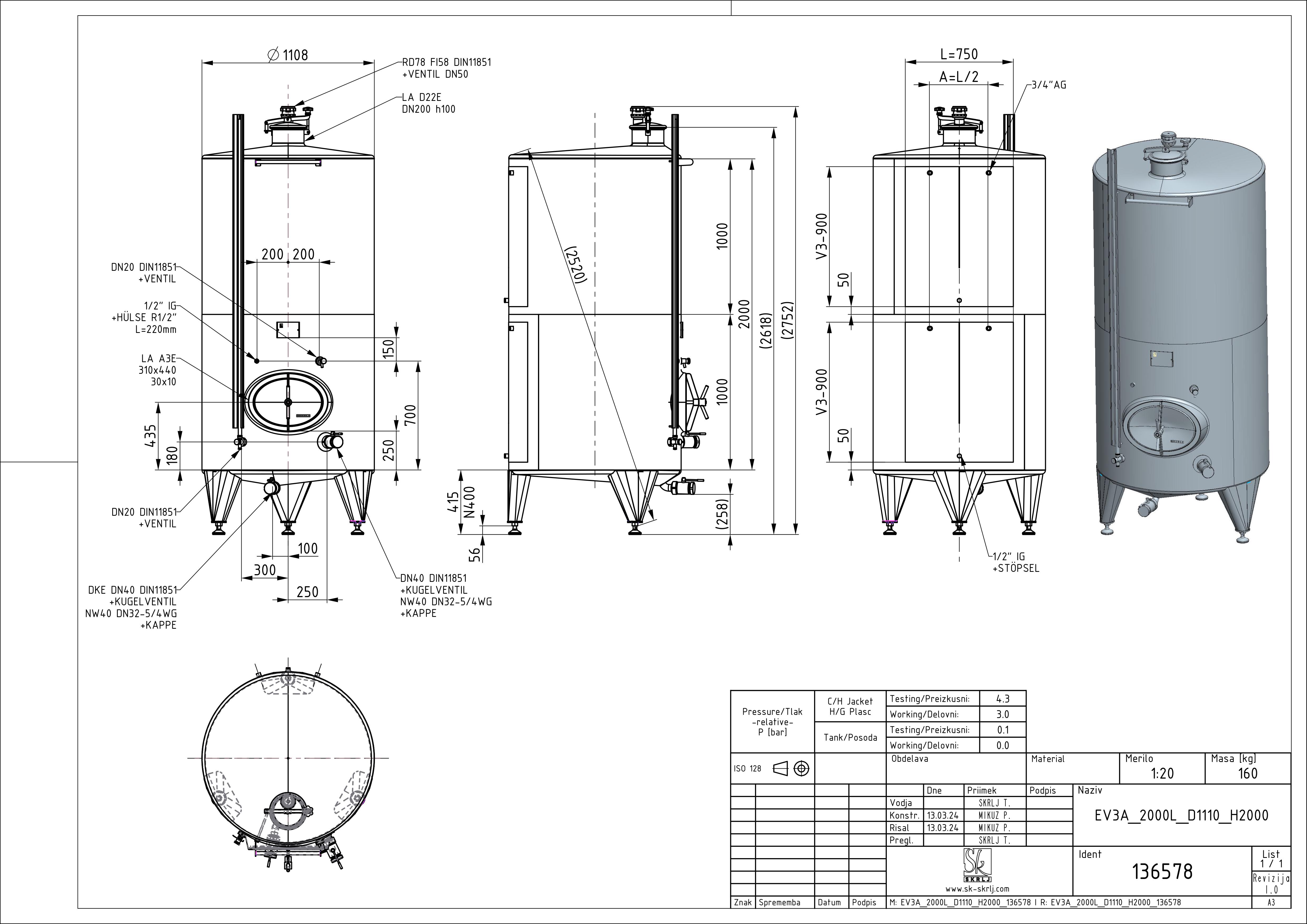

Classic storage tank with double jacket
EV3A 2000 D1110 H2000 0/ATM
Material: 136578
Nominal volume in L: 2000
Geometrical volume [l]: 2036
Internal diameter in mm: 1110
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
