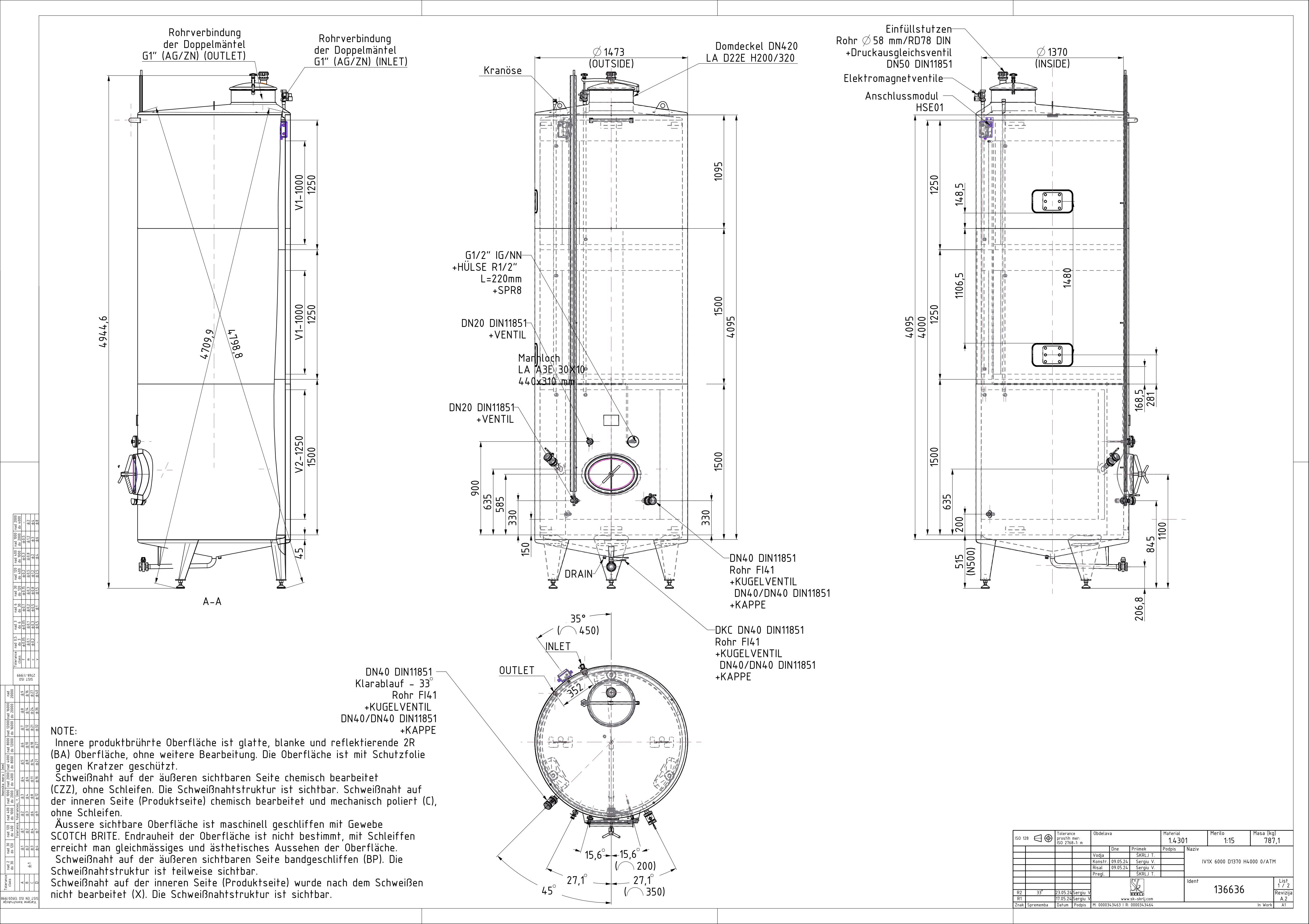

Insulated tank with double jacket
IV1X 6000 D1370 H4000 0/ATM
Material: 136636
Nominal volume in L: 6000
Geometrical volume [l]: 6096
Internal diameter in mm: 1370
External diameter [mm]: 1470
Height H in mm: 4000
Height Z in mm: 5050
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
