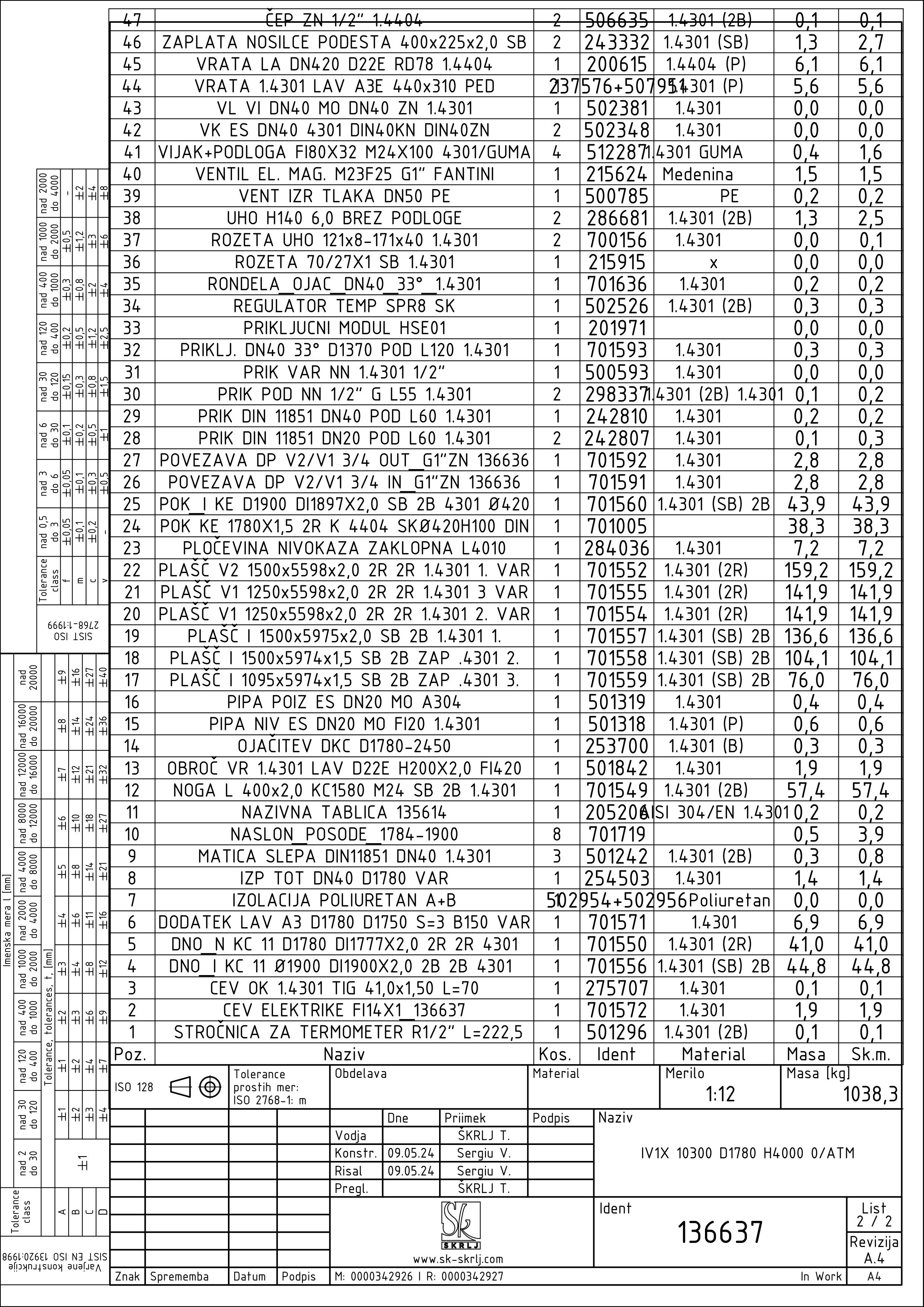

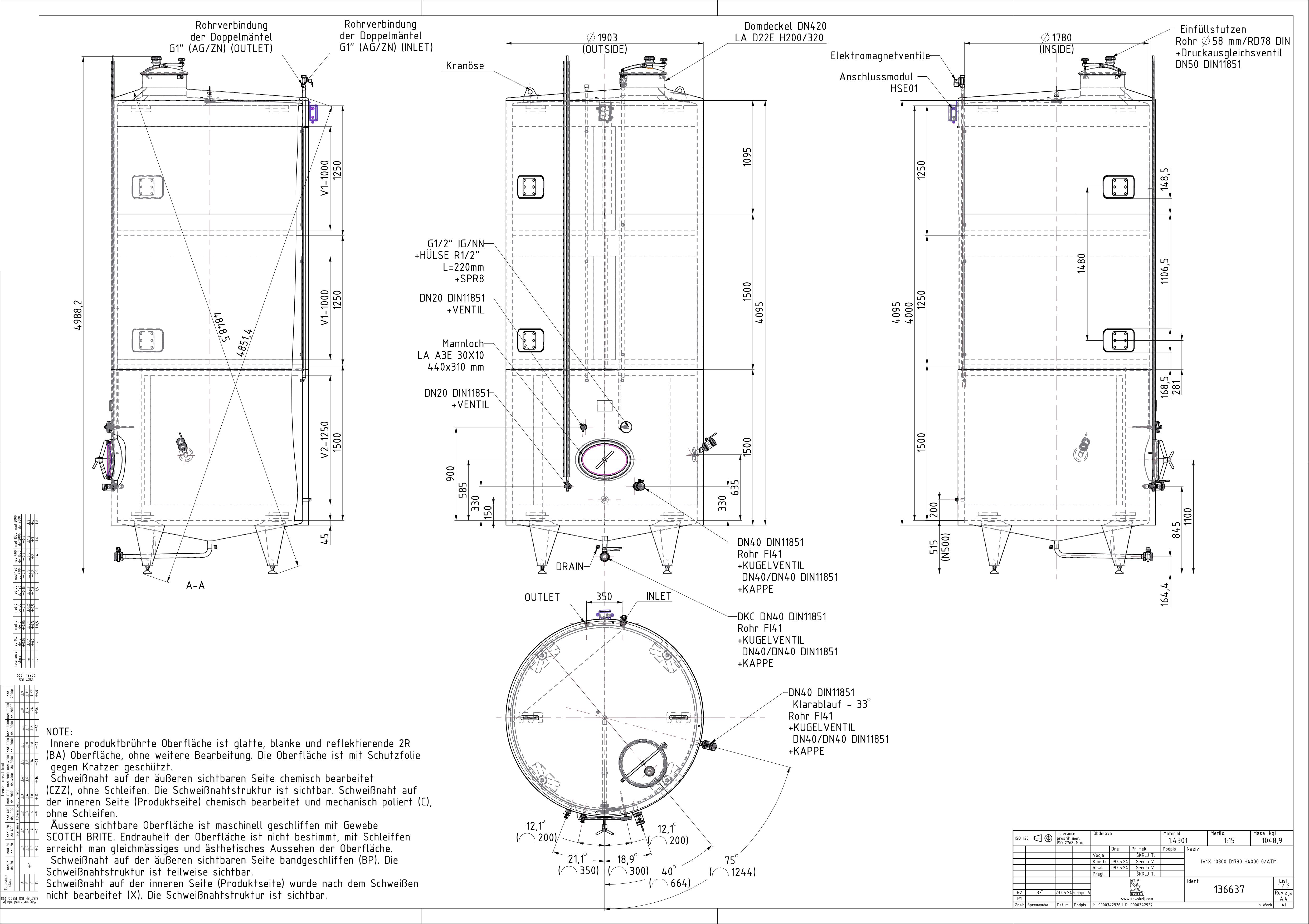

Insulated tank with double jacket
IV1X 10300 D1780 H4000 0/ATM
Material: 136637
Nominal volume in L: 10300
Geometrical volume [l]: 10360
Internal diameter in mm: 1780
External diameter [mm]: 1880
Height H in mm: 4000
Height Z in mm: 5100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
