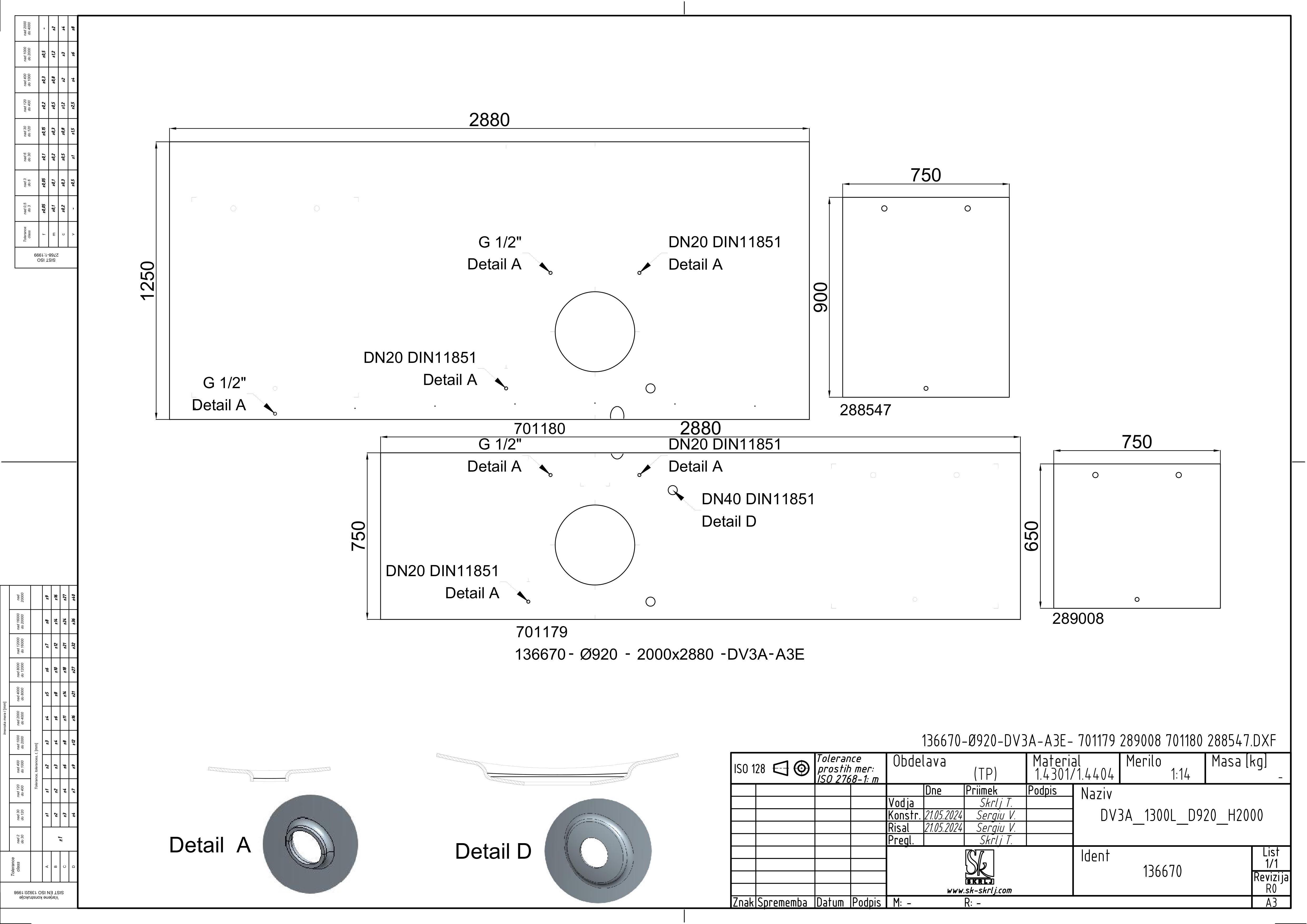

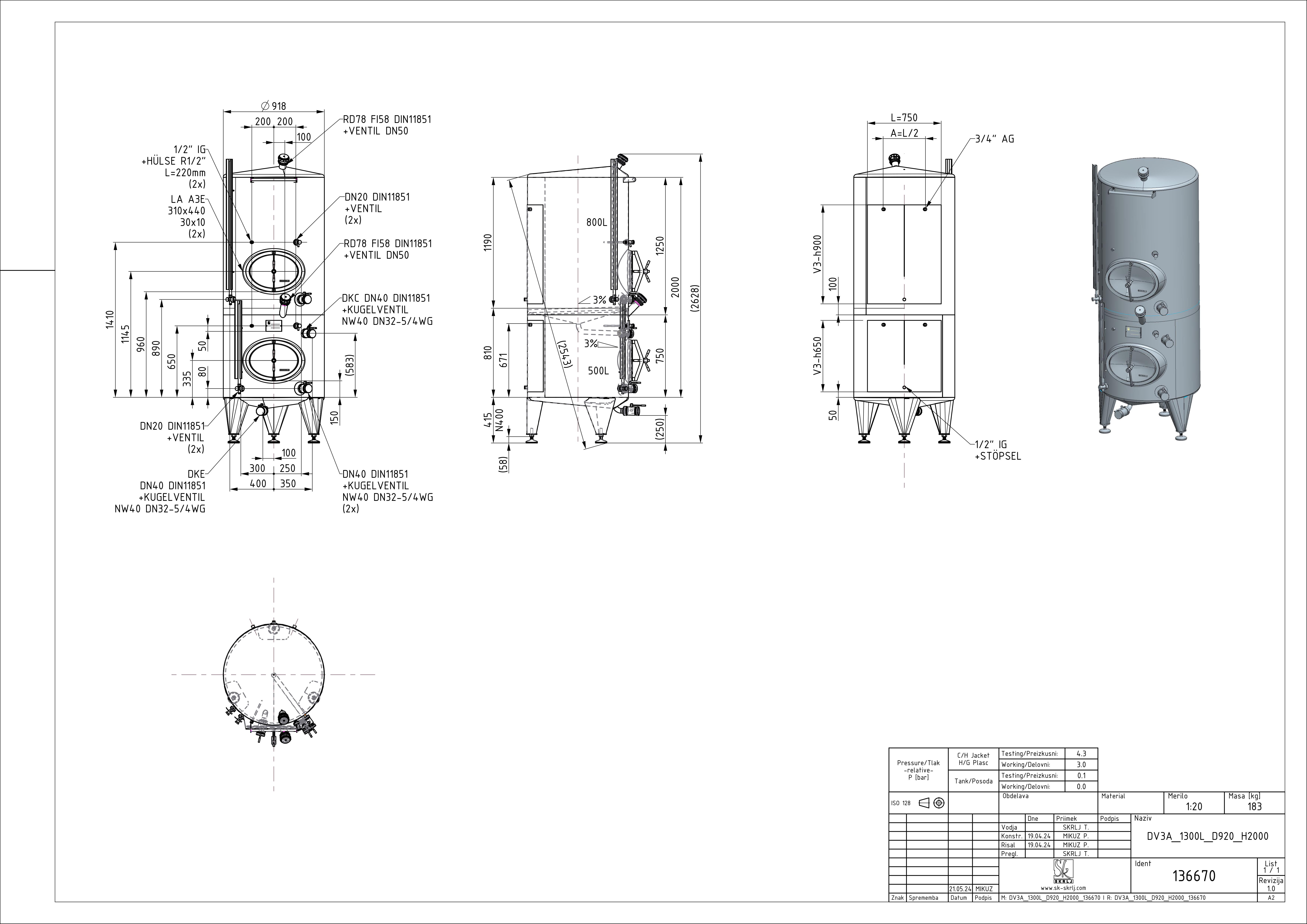

Storage tank with intermediate bottom and double jacket
DV3A 1300 D920 H2000 0/ATM
Material: 136670
Nominal volume in L: 1300
Geometrical volume [l]: 1399
Volume below [l]: 500
Volume above [l]: 800
Internal diameter in mm: 920
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
