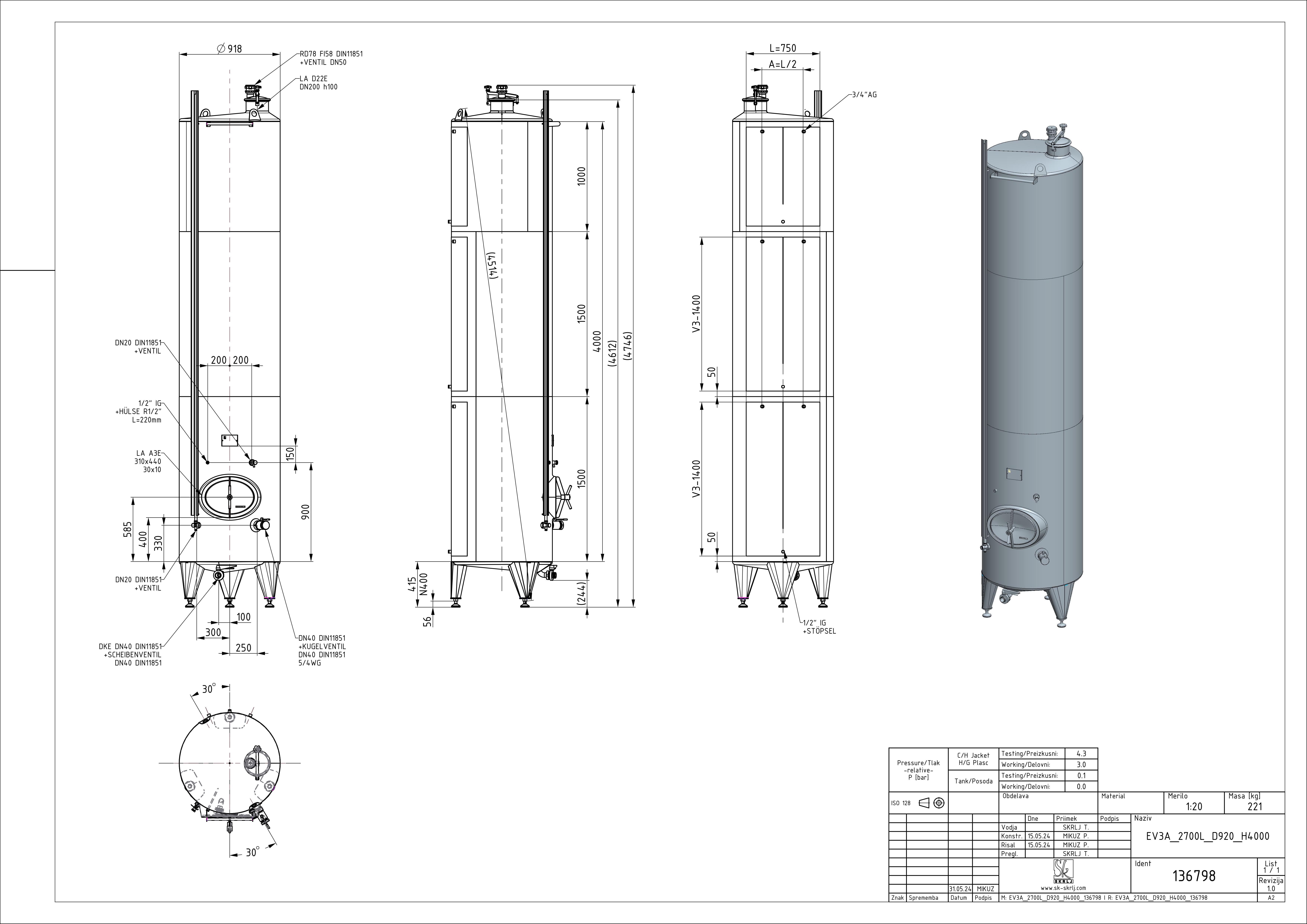

Classic storage tank with double jacket
EV3A 2700 D920 H4000 0/ATM
Material: 136798
Nominal volume in L: 2700
Internal diameter in mm: 920
Height H in mm: 4000
Height Z in mm: 4650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
