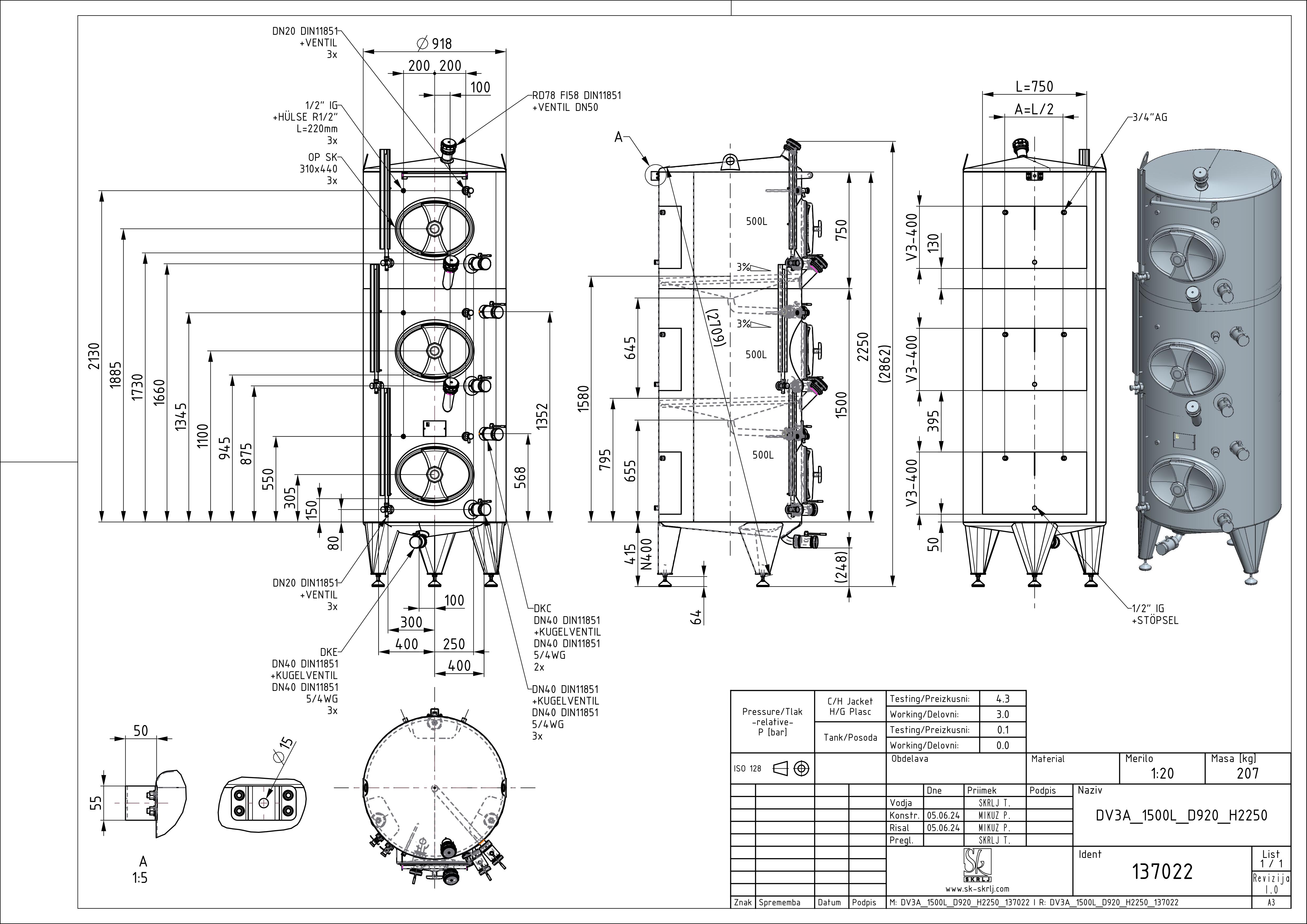

Storage tank with intermediate bottom and double jacket
DV3A 1500 D920 H2250 0/ATM
Material: 137022
Nominal volume in L: 1500
Volume below [l]: 500
Volume above [l]: 500
Volume above 2 [l]: 500
Internal diameter in mm: 920
Height H in mm: 2250
Height Z in mm: 2900
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
