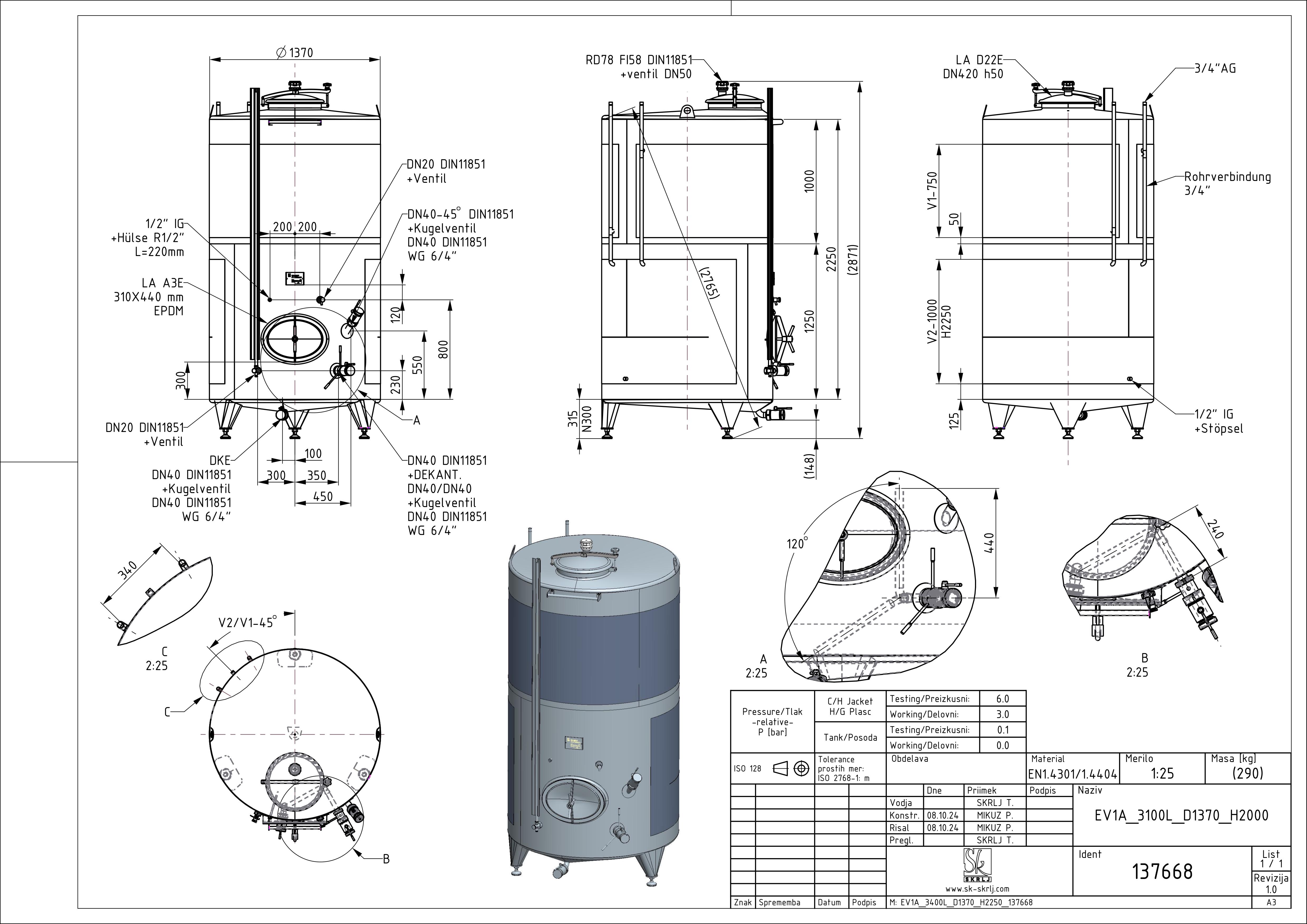

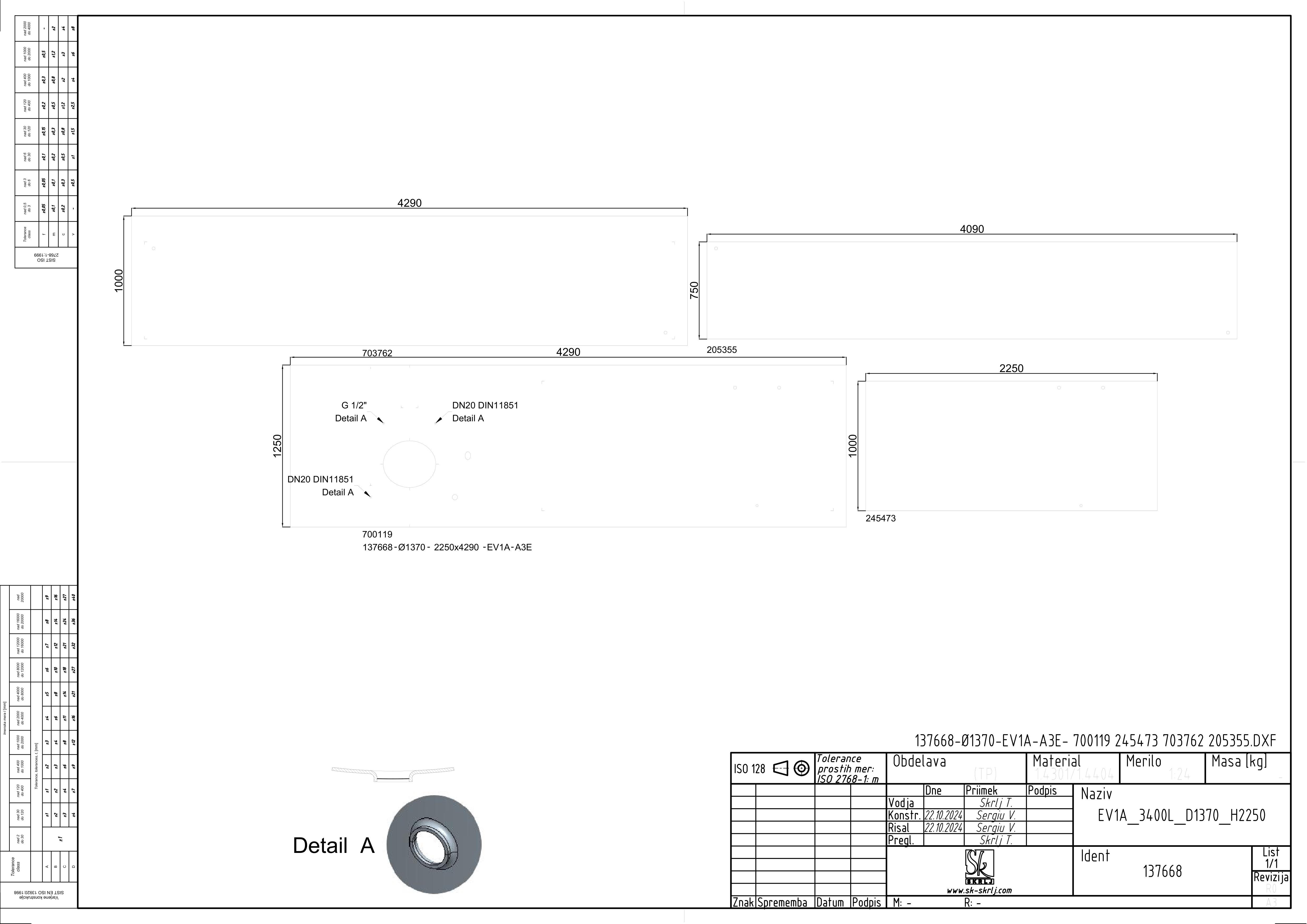

Classic storage tank with double jacket
EV1A 3400 D1370 H2250 0/ATM
Material: 137668
Nominal volume in L: 3400
Geometrical volume [l]: 3467
Internal diameter in mm: 1370
Height H in mm: 2250
Height Z in mm: 2950
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
