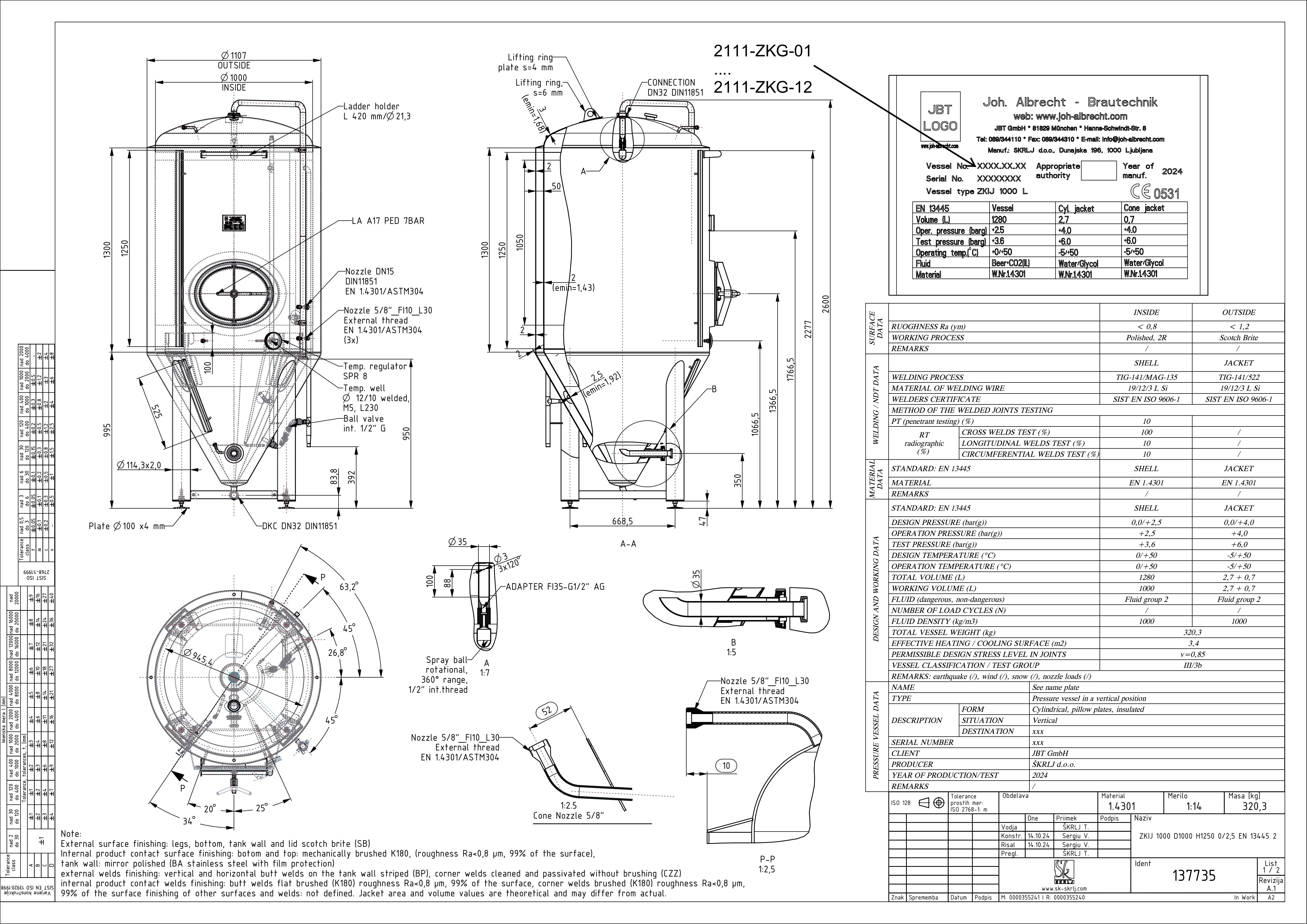

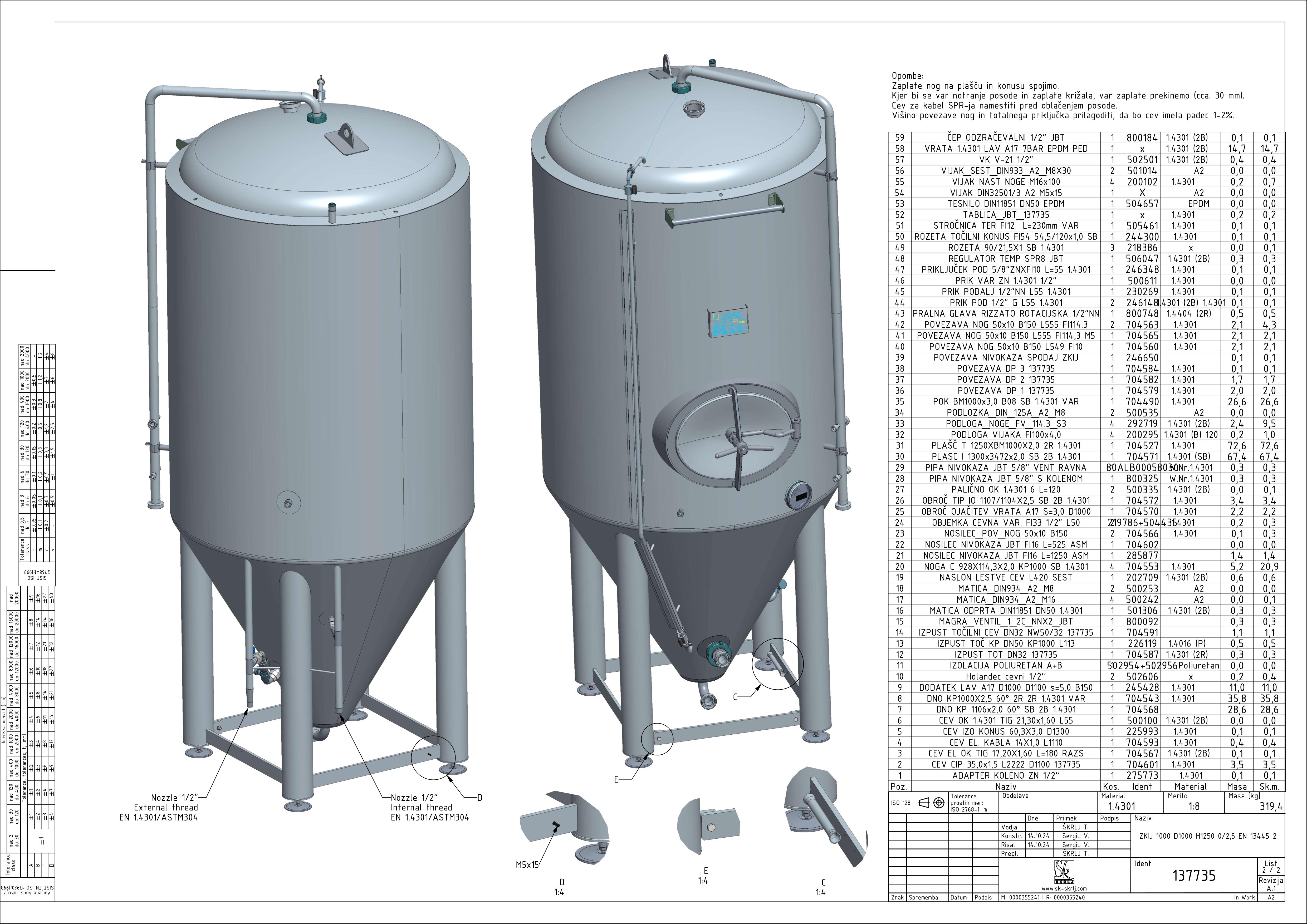

Cylindroconical fermentation and storage tank, insulated
ZKIJ 1000 D1000 H1250 0/2,5 2111_HAMBU
Material: 137735
Customer project label: 2111_HAMBURG
Standard: EN 13445
Nominal volume in L: 1000
Geometrical volume [l]: 1280
Internal diameter in mm: 1000
External diameter [mm]: 1100
Jacket height H in mm: 1250
Total height Z in mm: 2650
Type: VERT KC60-E-BM
Min. operating press. [barg]: 0
Max. operating press. [barg]: 2,5
Test pressure [barg]: 3,58
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
