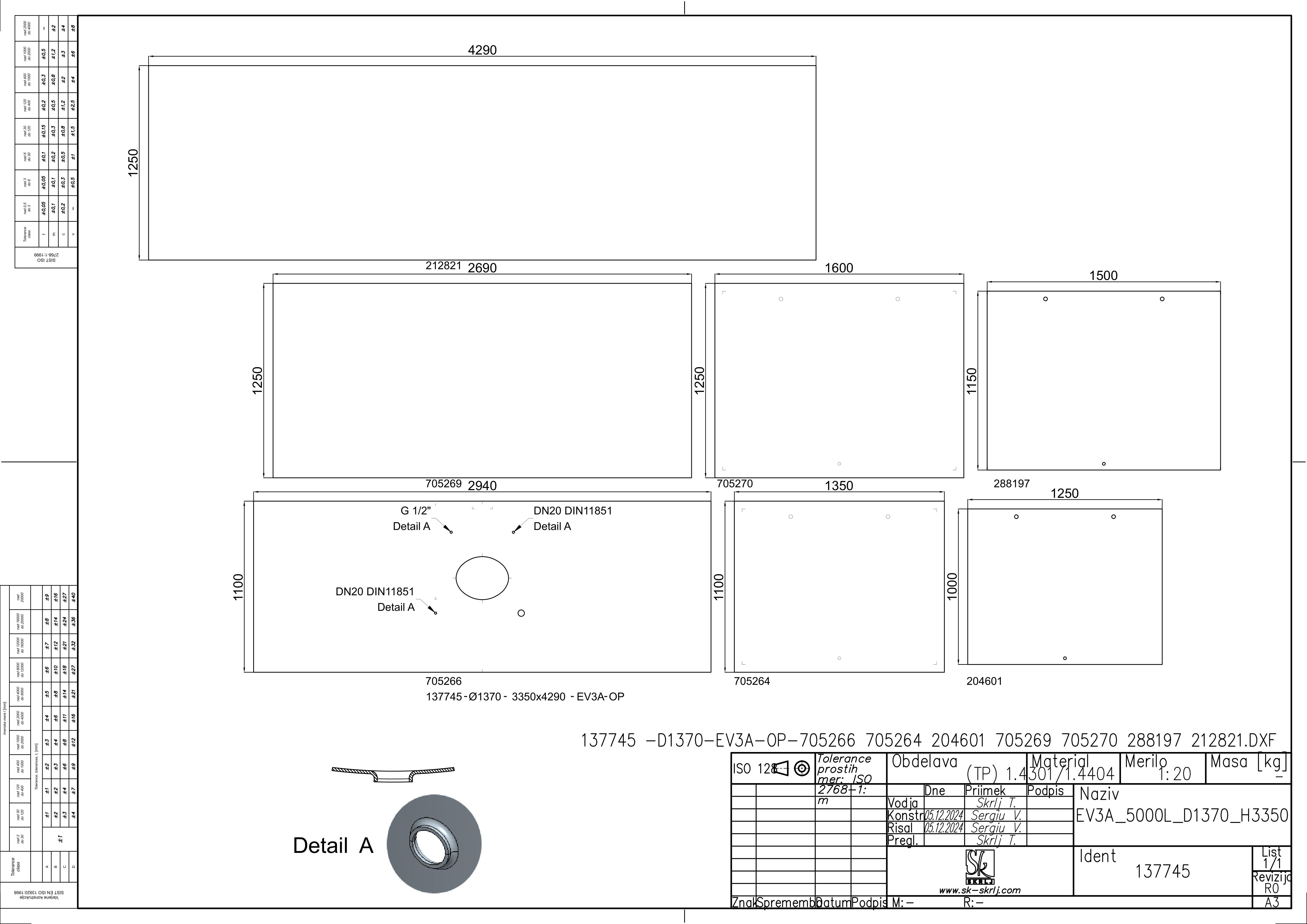

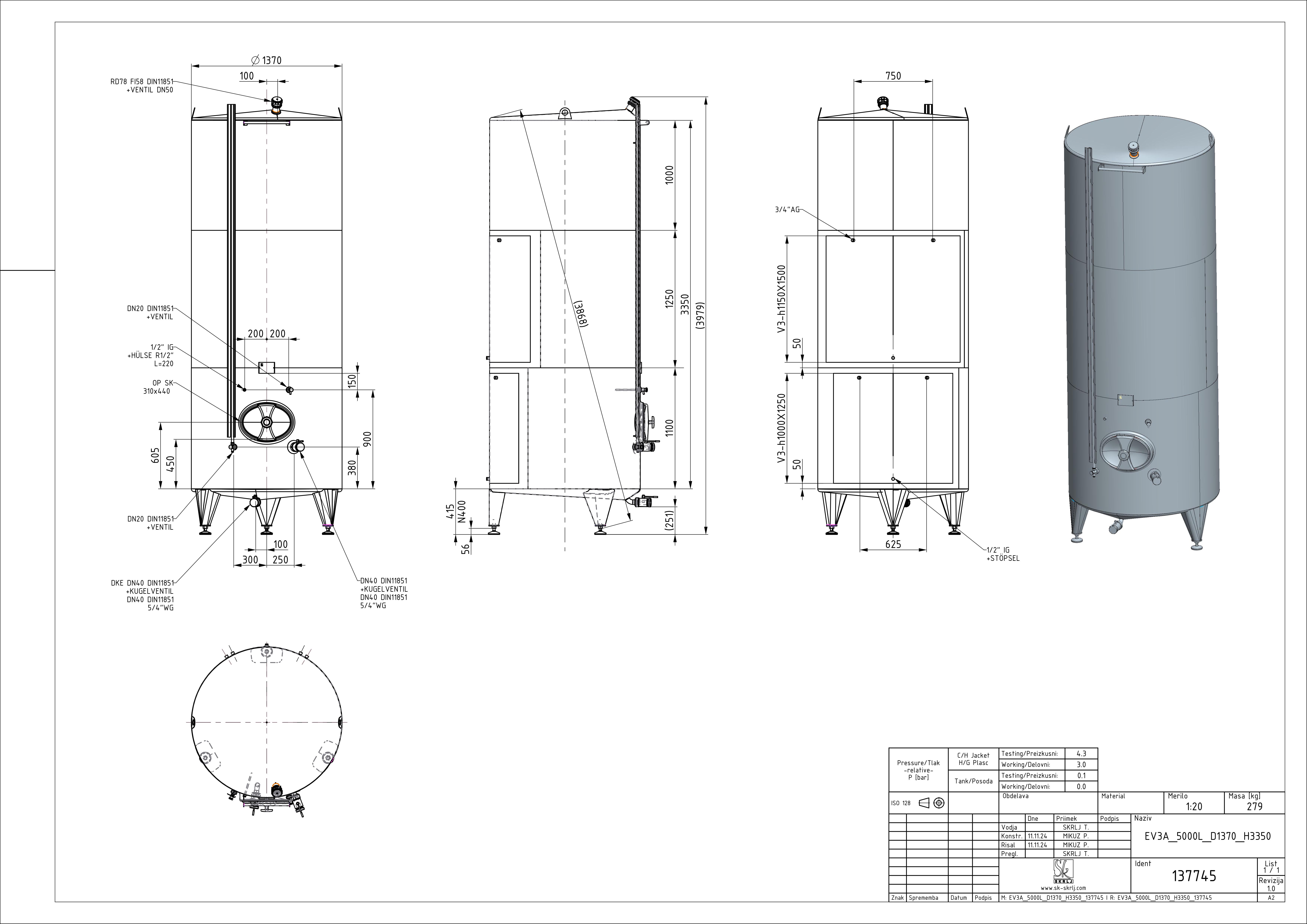

Classic storage tank with double jacket
EV3A 5000 D1370 H3350 0/ATM
Material: 137745
Nominal volume in L: 5000
Geometrical volume [l]: 5159
Internal diameter in mm: 1370
Height H in mm: 3350
Height Z in mm: 4000
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
