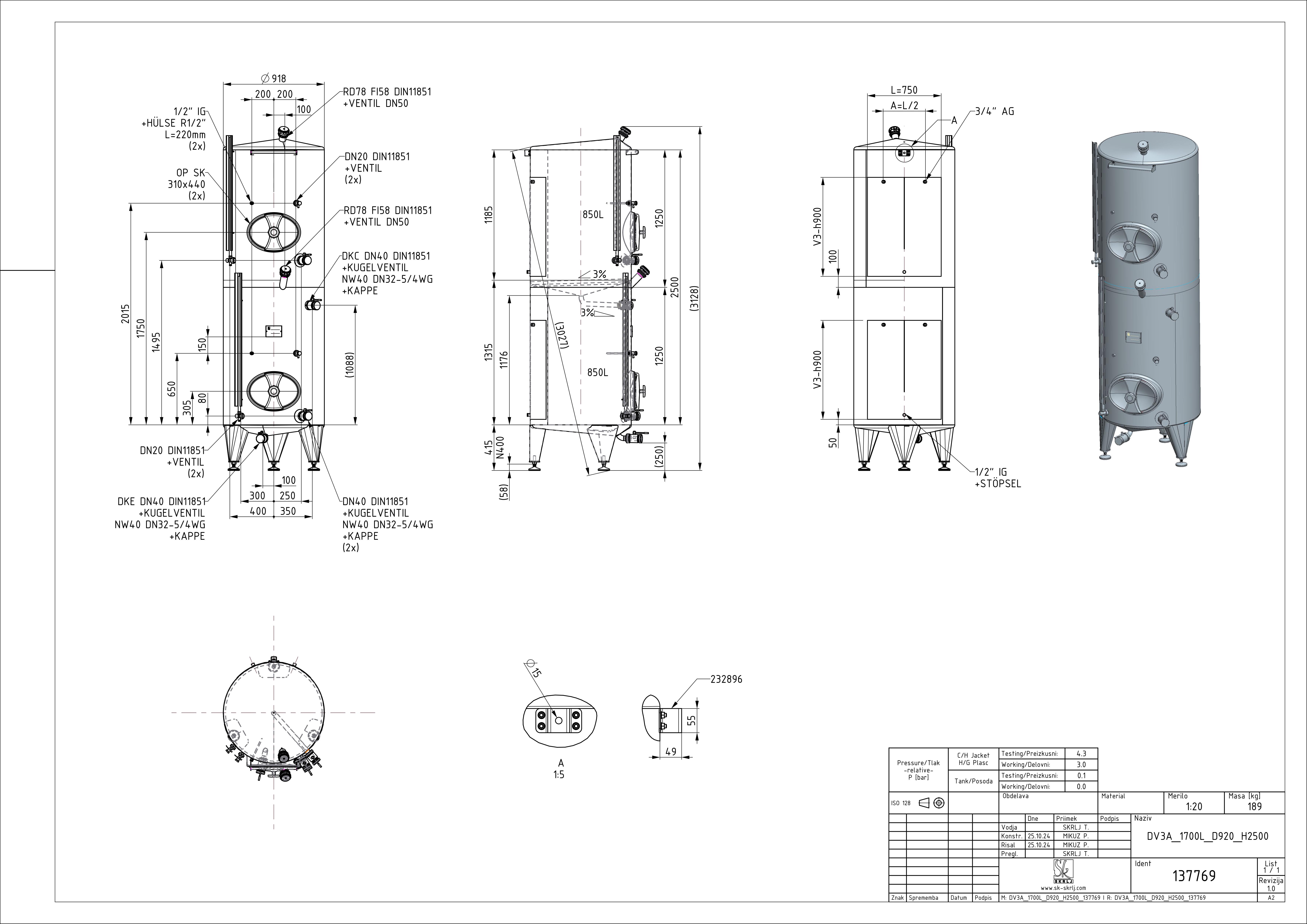

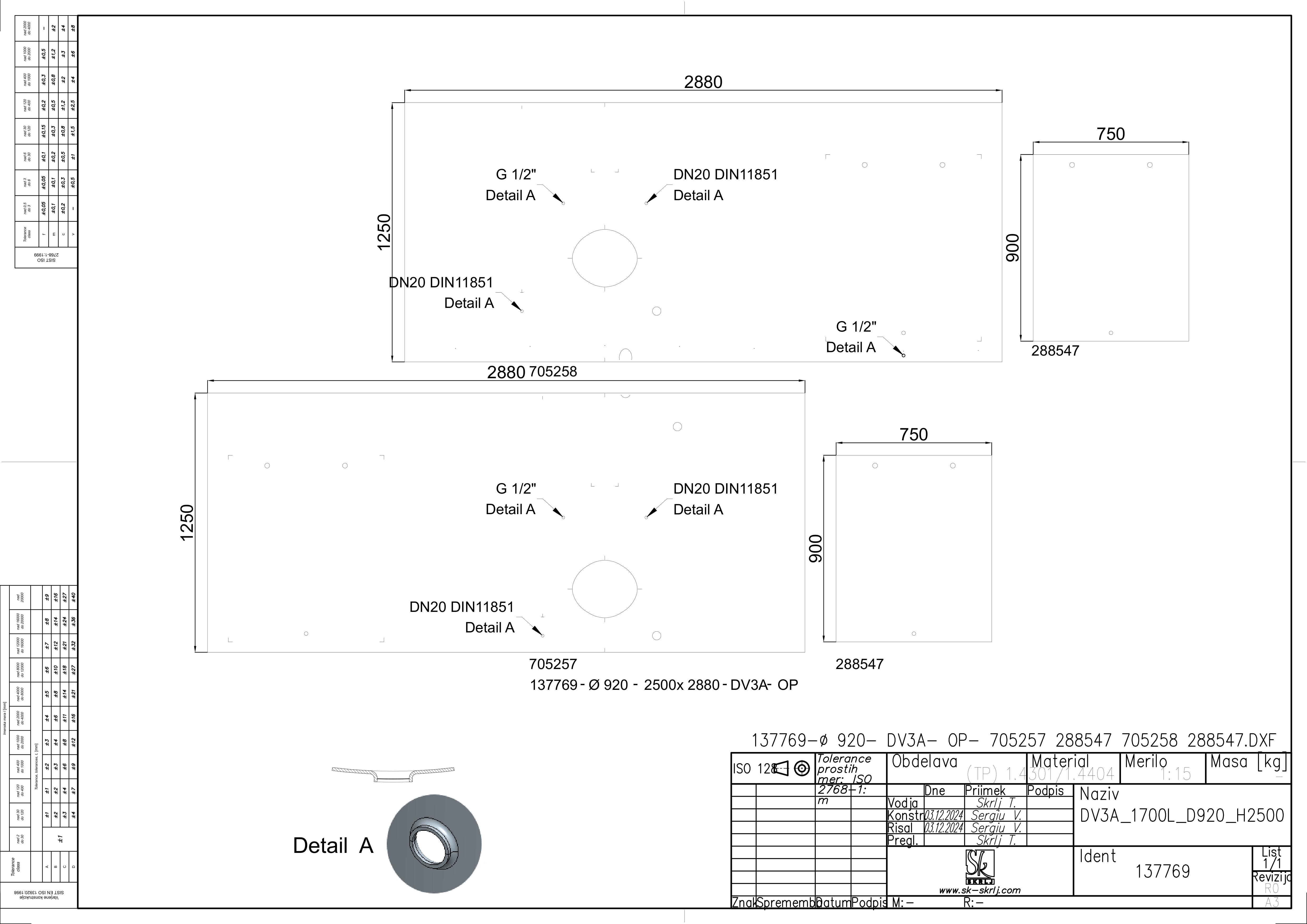

Storage tank with intermediate bottom and double jacket
DV3A 1700 D920 H2500 0/ATM RW
Material: 137769
Standard: RW
Nominal volume in L: 1700
Geometrical volume [l]: 1731
Volume below [l]: 850
Volume above [l]: 850
Internal diameter in mm: 920
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
