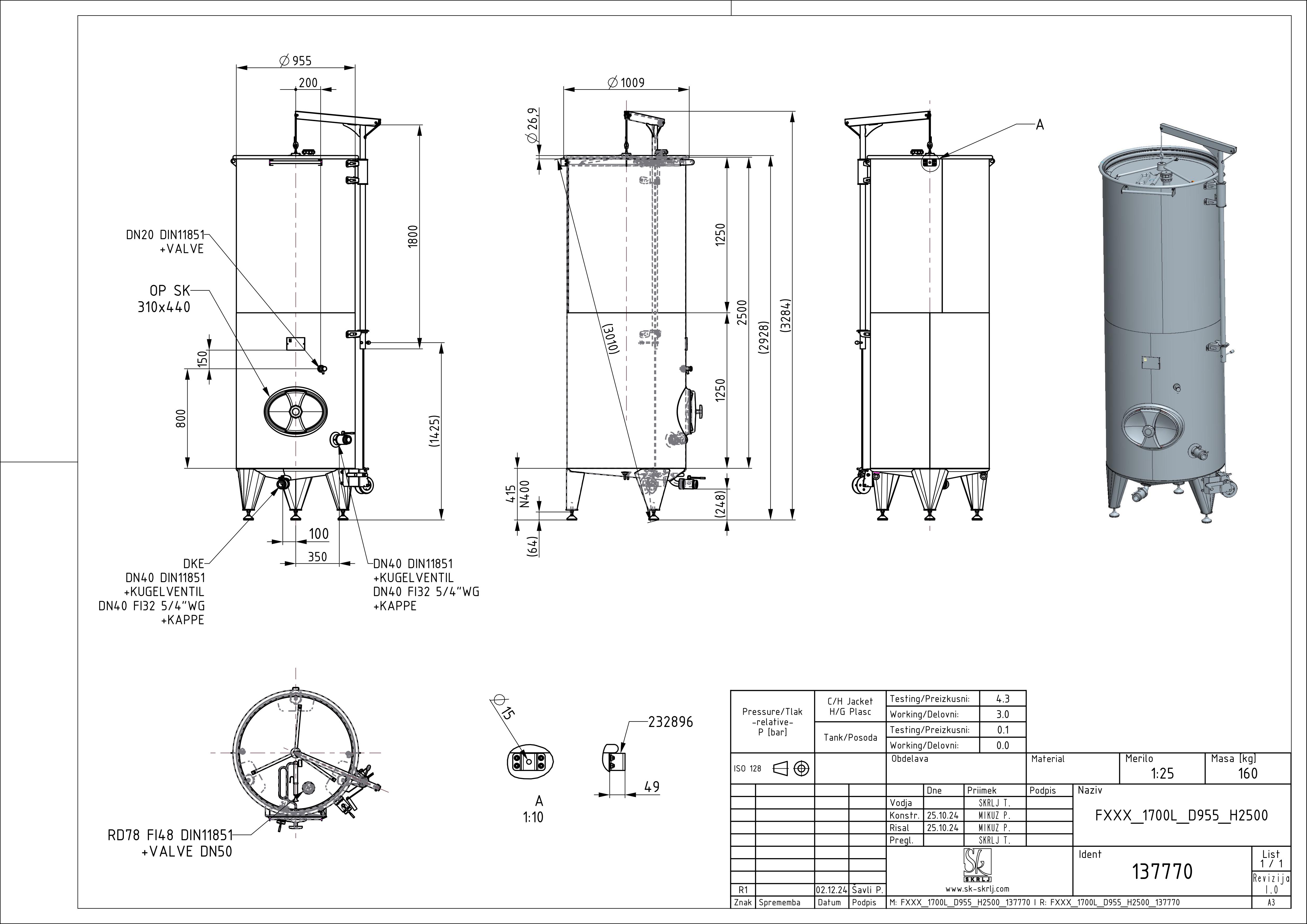

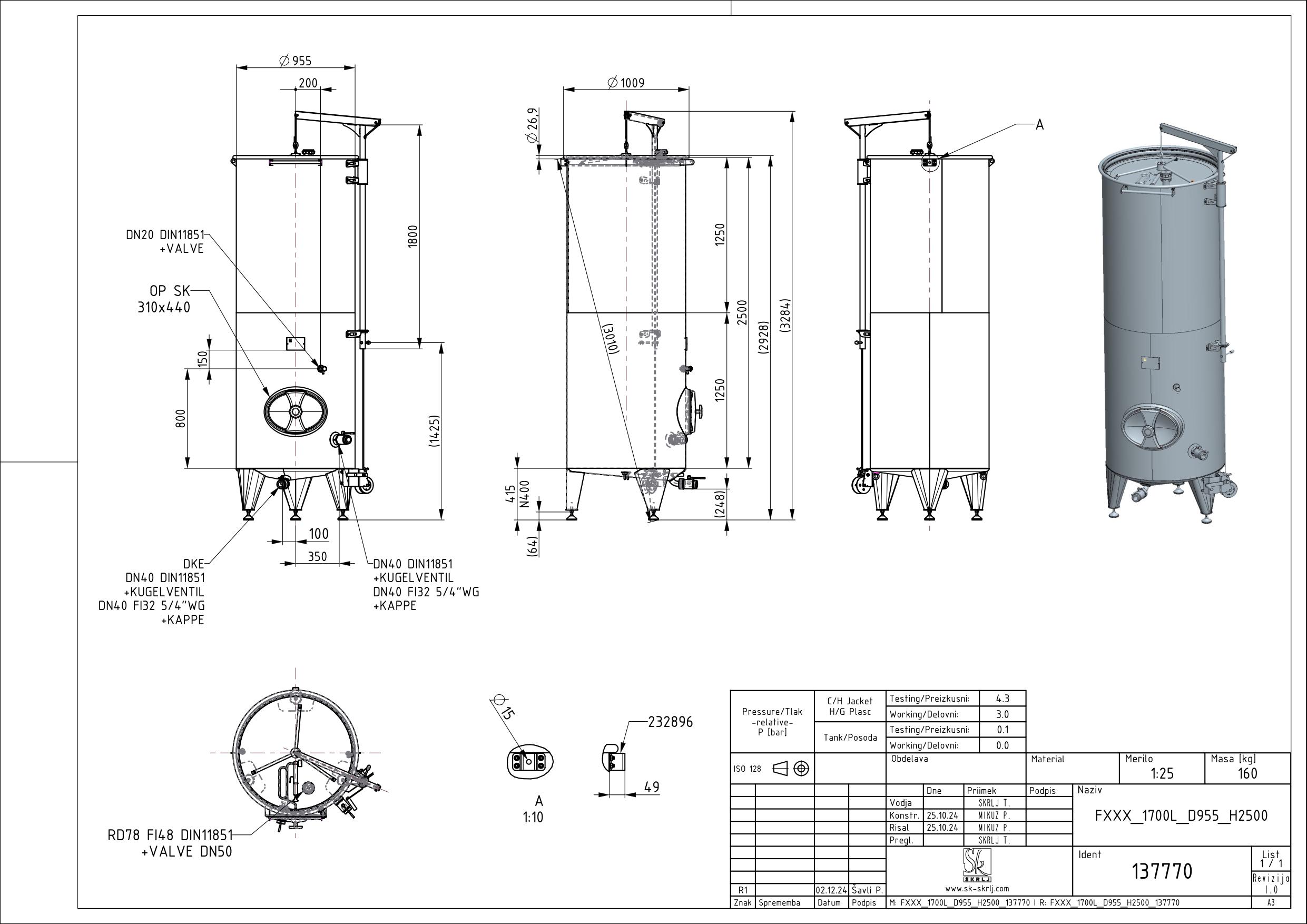

Storage tank with floating lid
FXXA 1700 D955 H2500 0/ATM
Material: 137770
Nominal volume in L: 1700
Geometrical volume [l]: 1826
Internal diameter in mm: 955
Height H in mm: 2500
Height Z in mm: 3300
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
