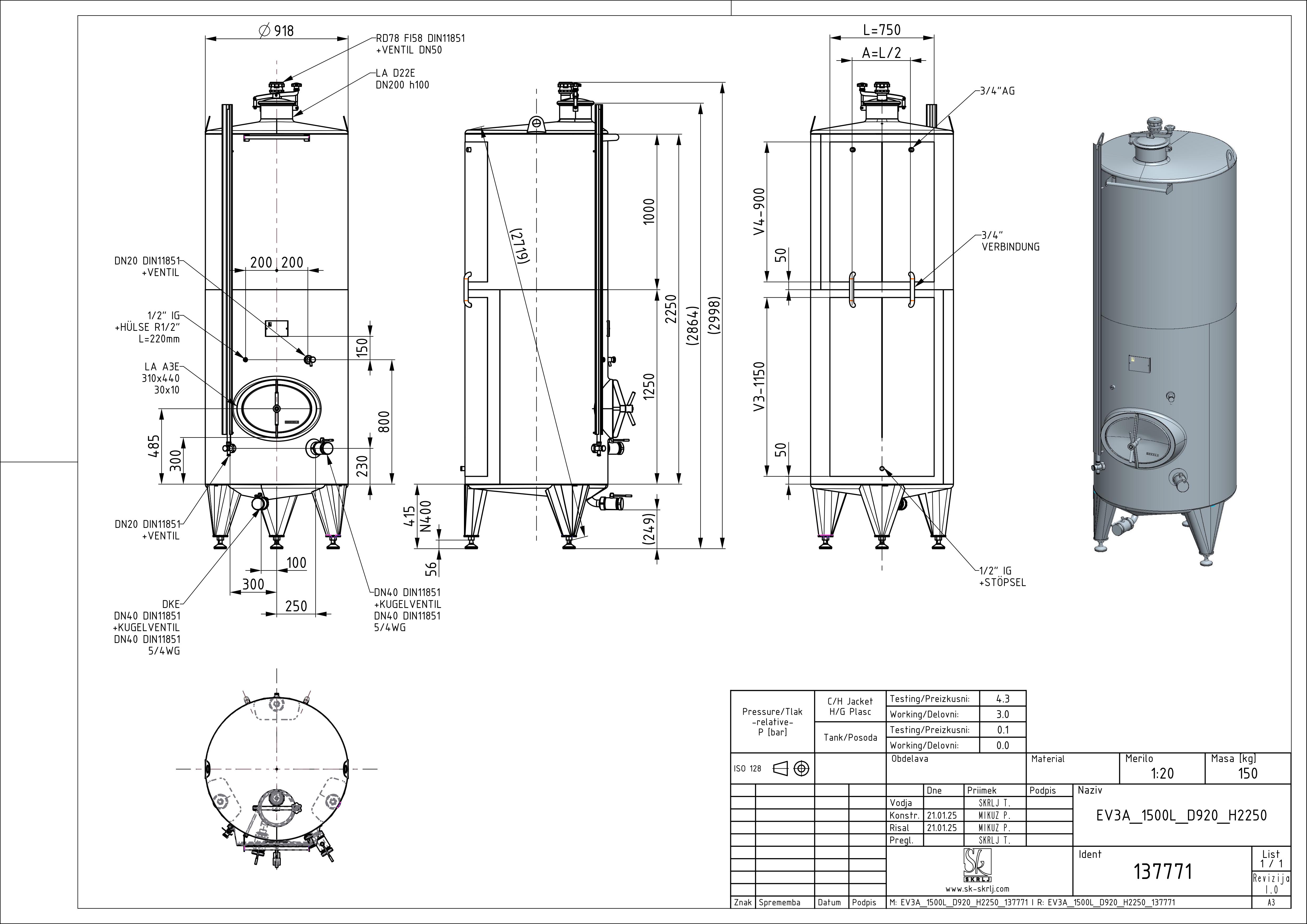

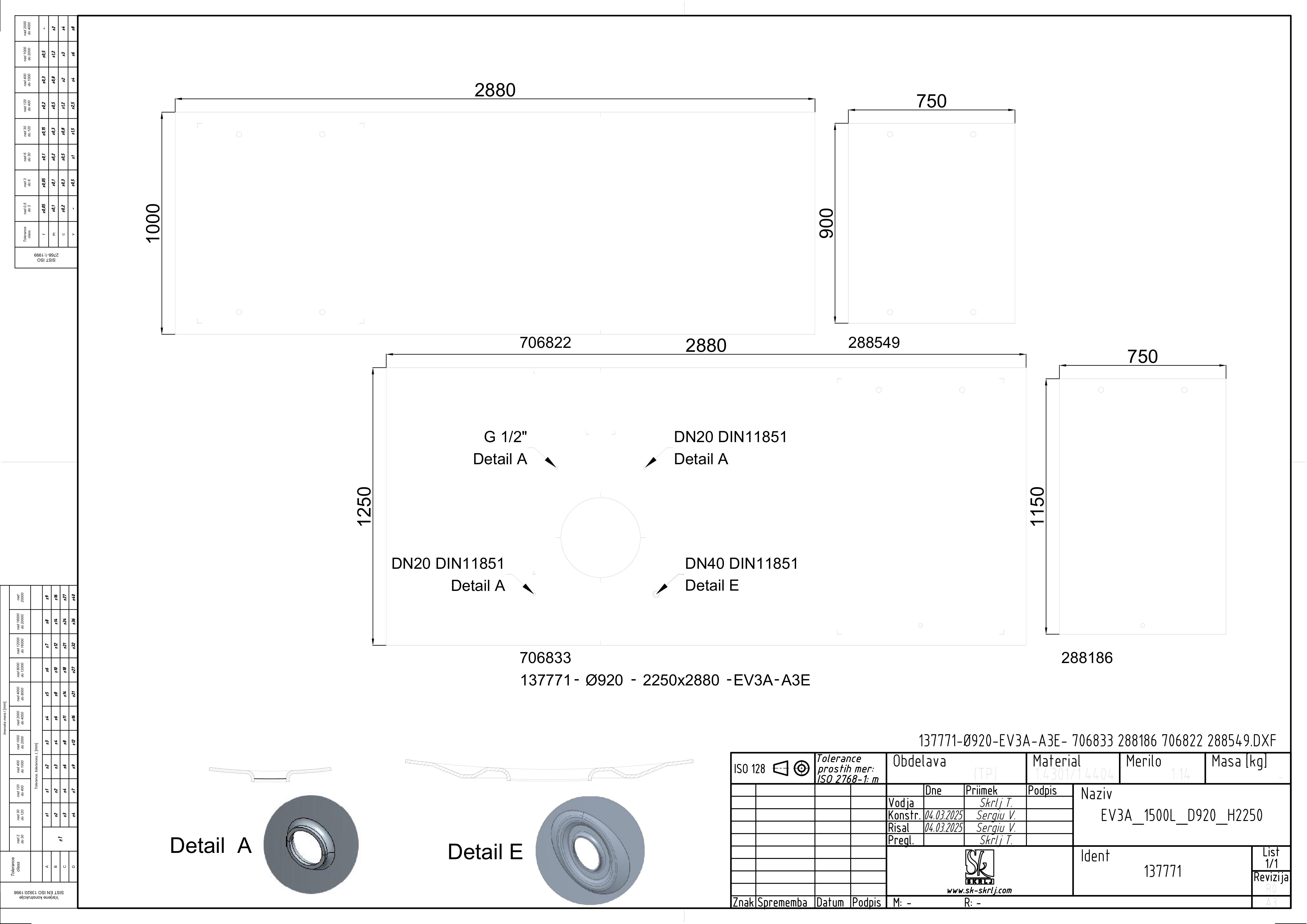

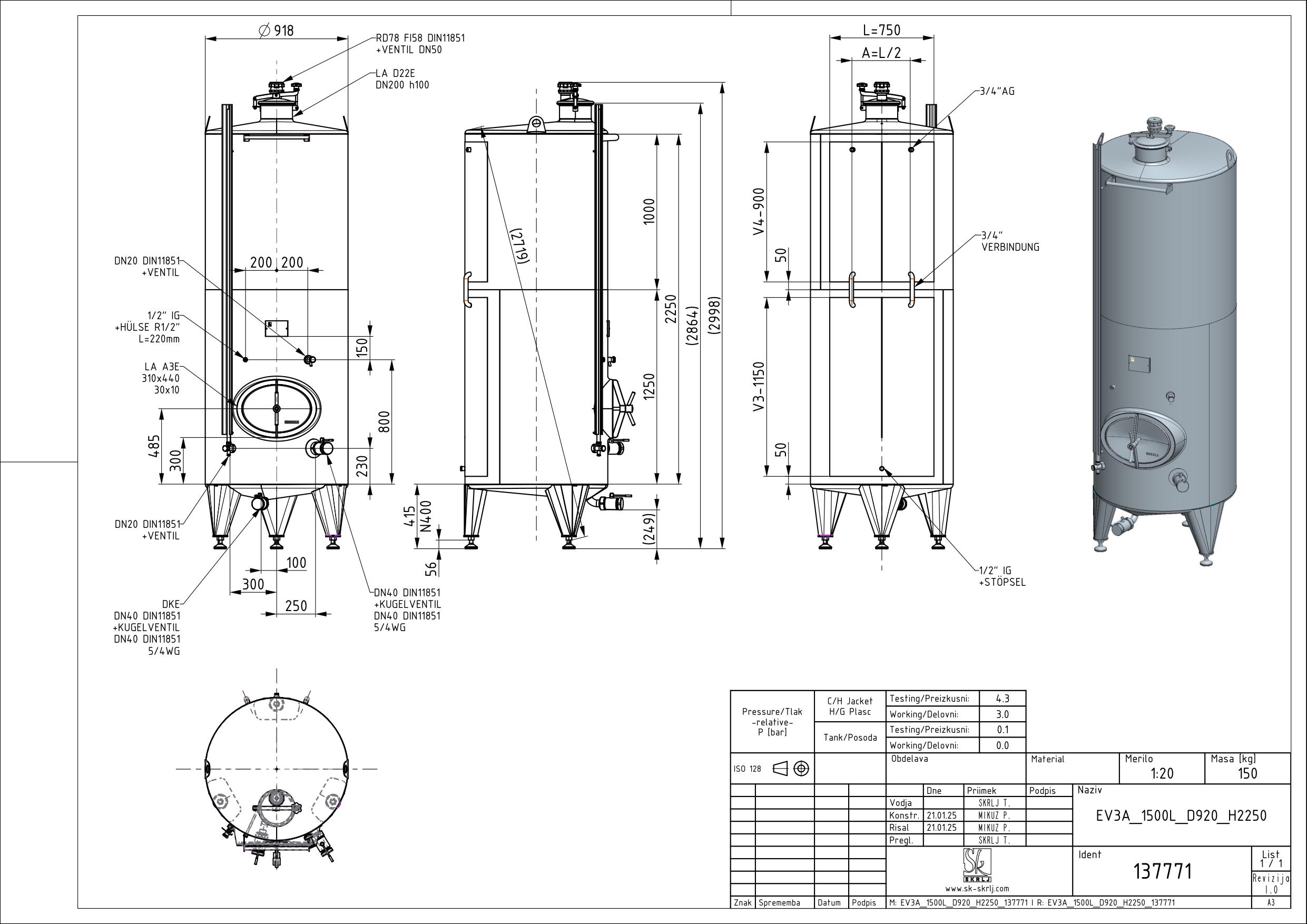

Classic storage tank with double jacket
EV3A 1500 D920 H2250 0/ATM
Material: 137771
Nominal volume in L: 1500
Geometrical volume [l]: 1563
Internal diameter in mm: 920
Jacket height H in mm: 2250
Total height Z in mm: 3100
Type: Vertical tank KE-E-KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
