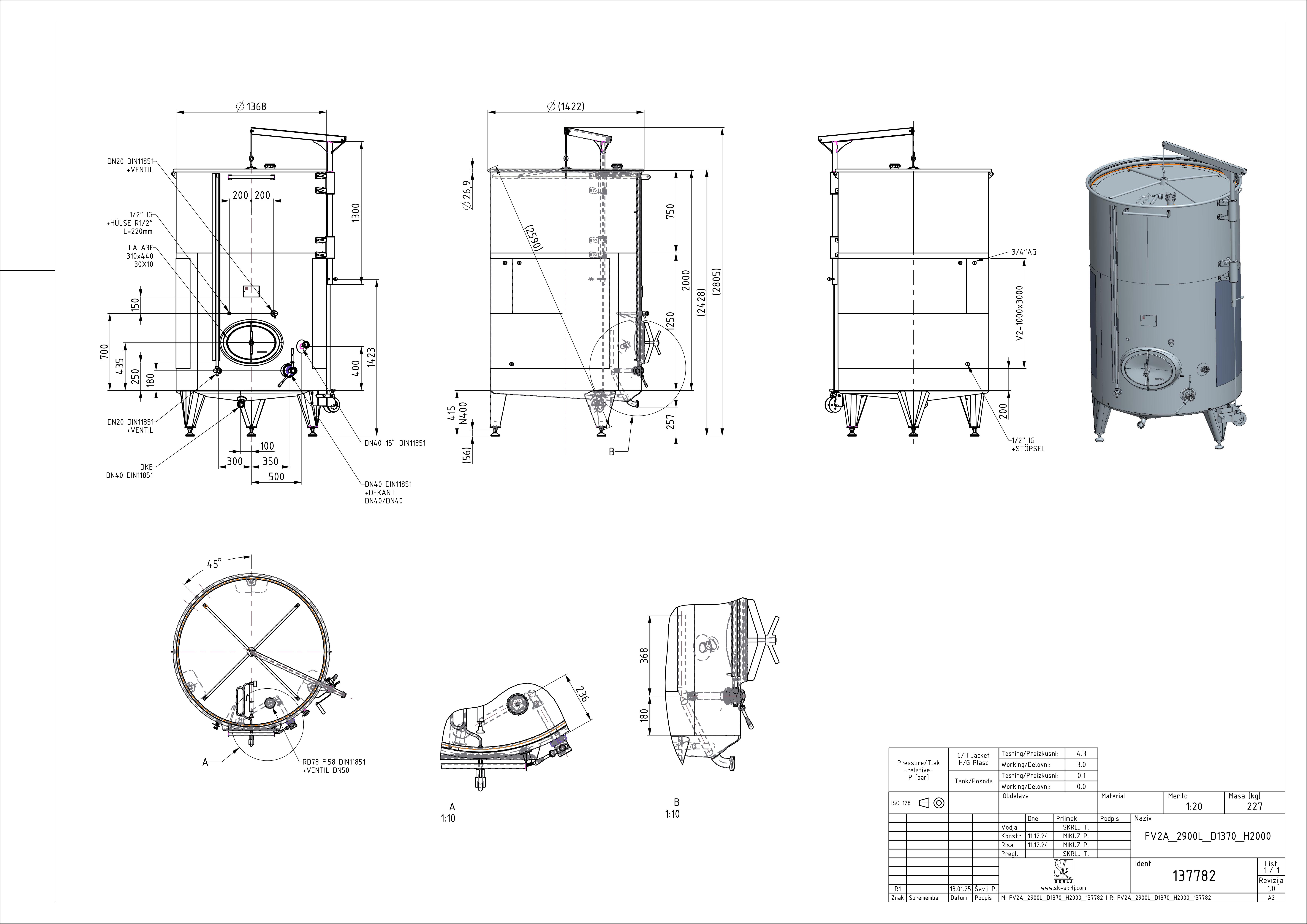

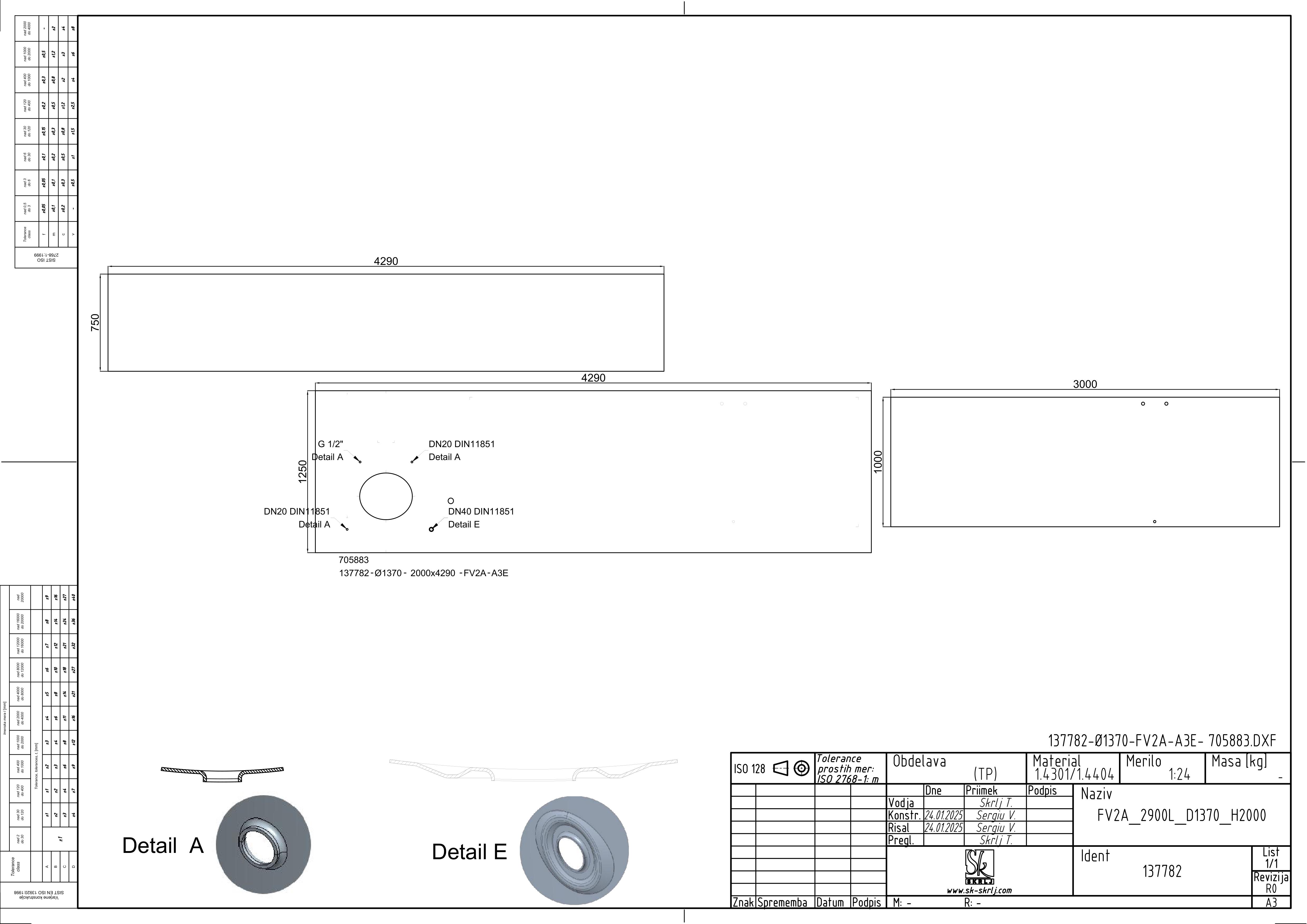

Storage tank with floating lid and double jacket
FV2A 2900 D1370 H2000 0/ATM
Material: 137782
Nominal volume in L: 2900
Geometrical volume [l]: 3025
Internal diameter in mm: 1370
Height H in mm: 2000
Height Z in mm: 2800
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
