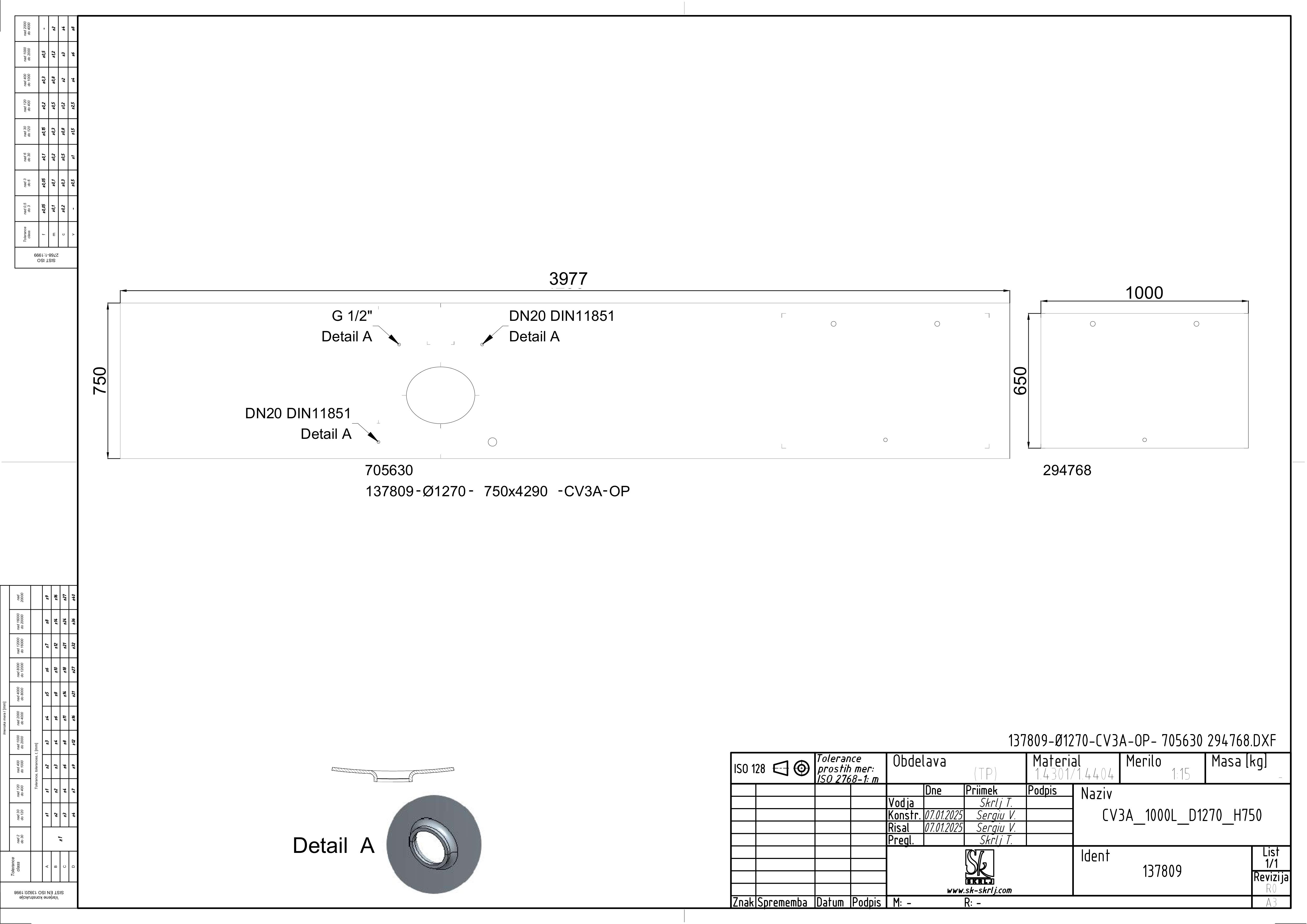

Stackable tank with double jacket
CV3A 1000 D1270 H750/ATM
Material: 137809
Nominal volume in L: 1000
Geometrical volume [l]: 1081
Internal diameter in mm: 1270
Height H in mm: 750
Height Z in mm: 1400
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
