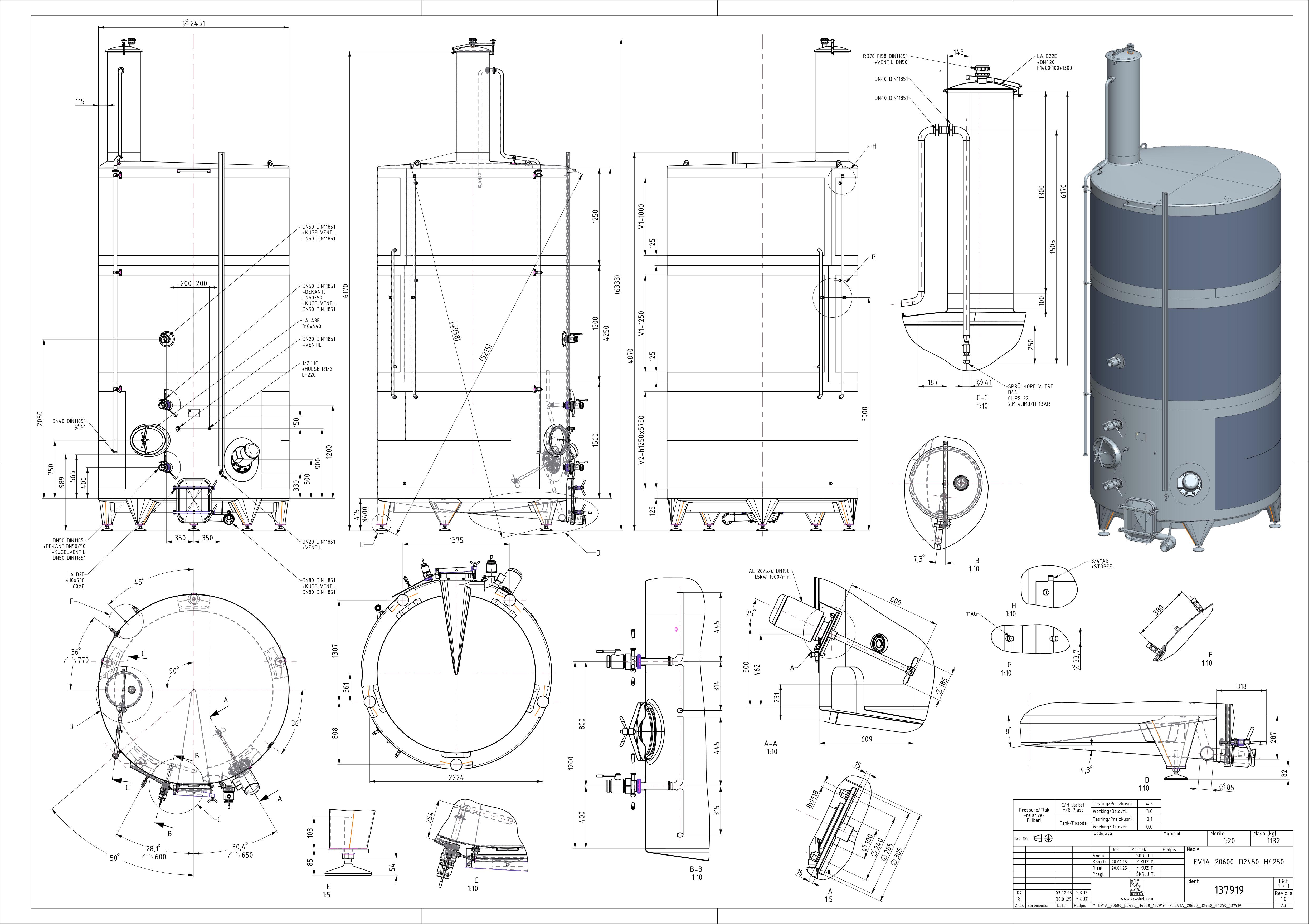

Classic storage tank with double jacket
EV1A 20600 D2450 H4250 0/ATM
Material: 137919
Nominal volume in L: 20600
Geometrical volume [l]: 20686
Internal diameter in mm: 2450
Height H in mm: 4250
Height Z in mm: 4800
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
