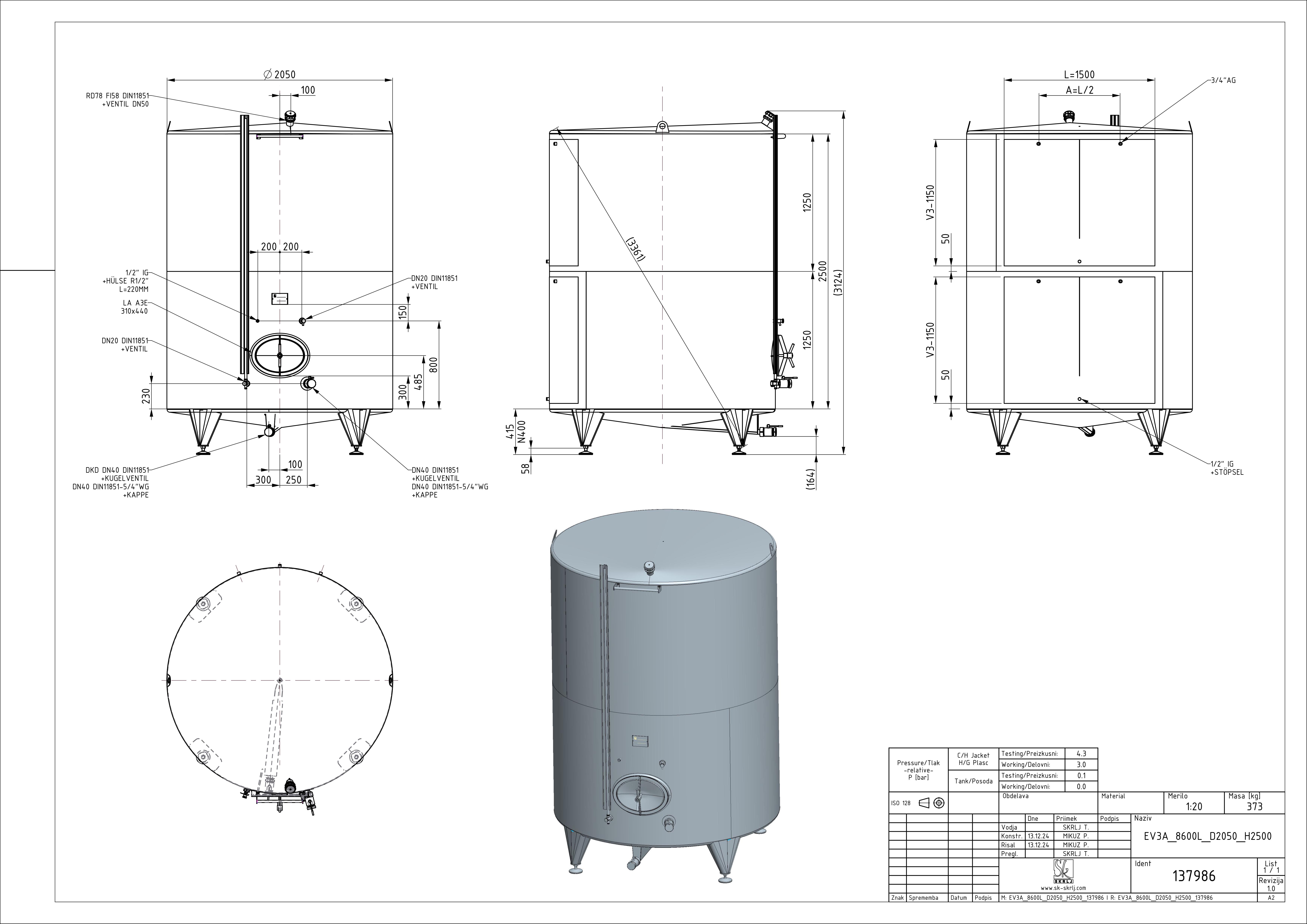

Classic storage tank with double jacket
EV3A 8600 D2050 H2500 0/ATM
Material: 137986
Nominal volume in L: 8600
Geometrical volume [l]: 8664
Internal diameter in mm: 2050
Jacket height H in mm: 2500
Total height Z in mm: 3150
Type: Vertical tank - bottom KC - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
