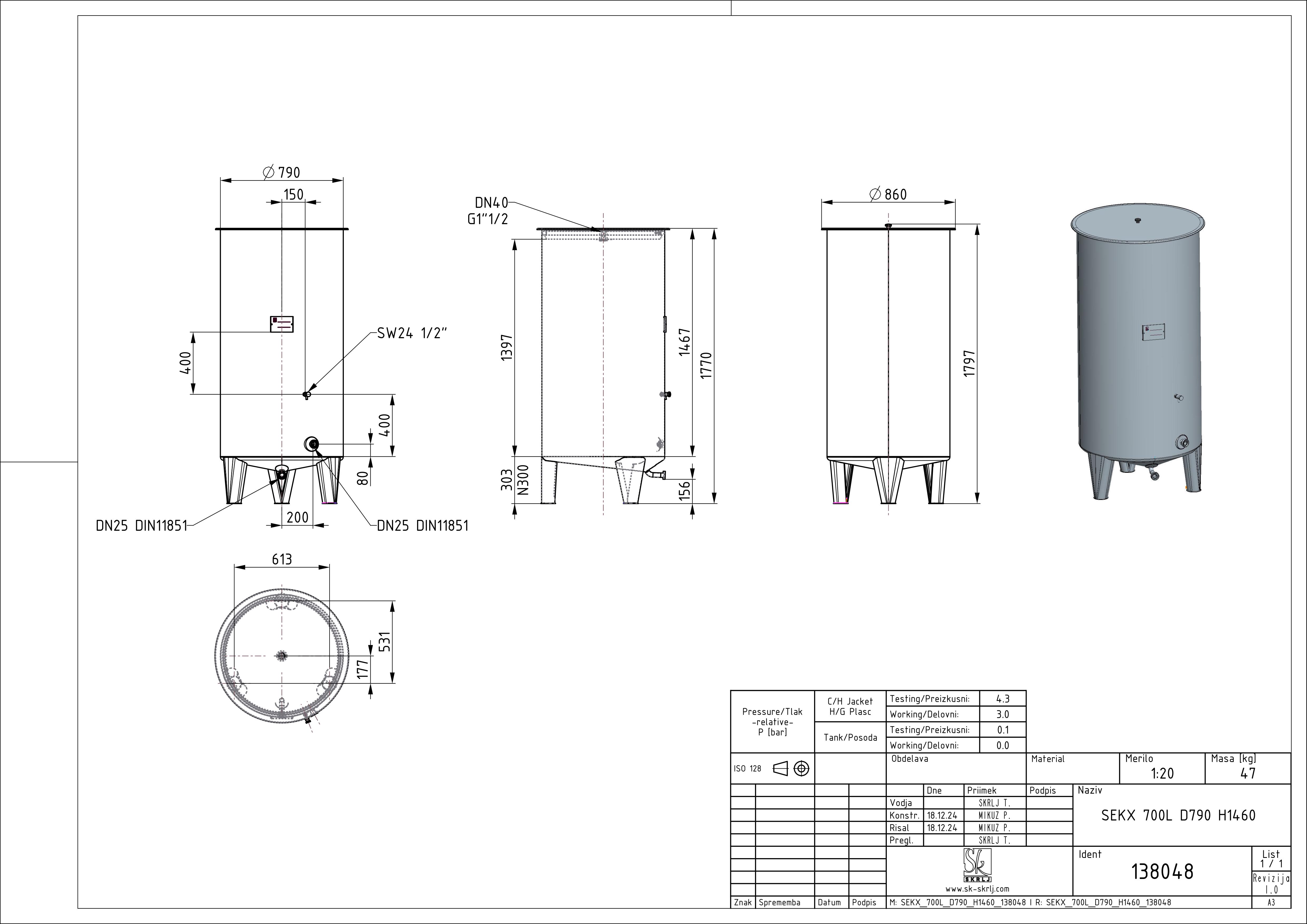

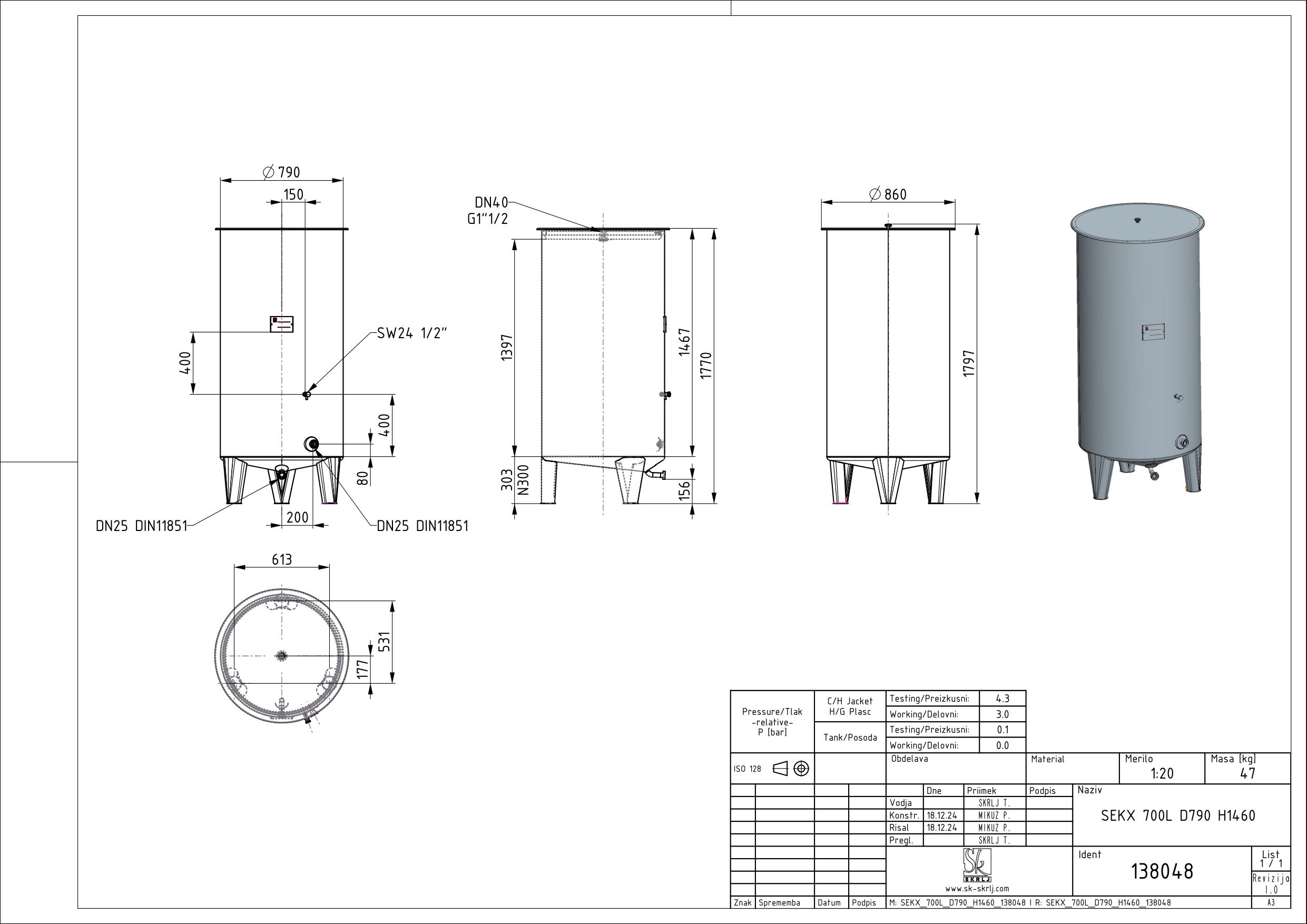

Storage tank with floating lid
SEKX 750 D790 H1460 0/ATM
Material: 138048
Nominal volume in L: 750
Geometrical volume [l]: 741
Internal diameter in mm: 790
Jacket height H in mm: 1460
Total height Z in mm: 1800
Type: Vertical tank - bottom KE - jacket E - lid VP
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
