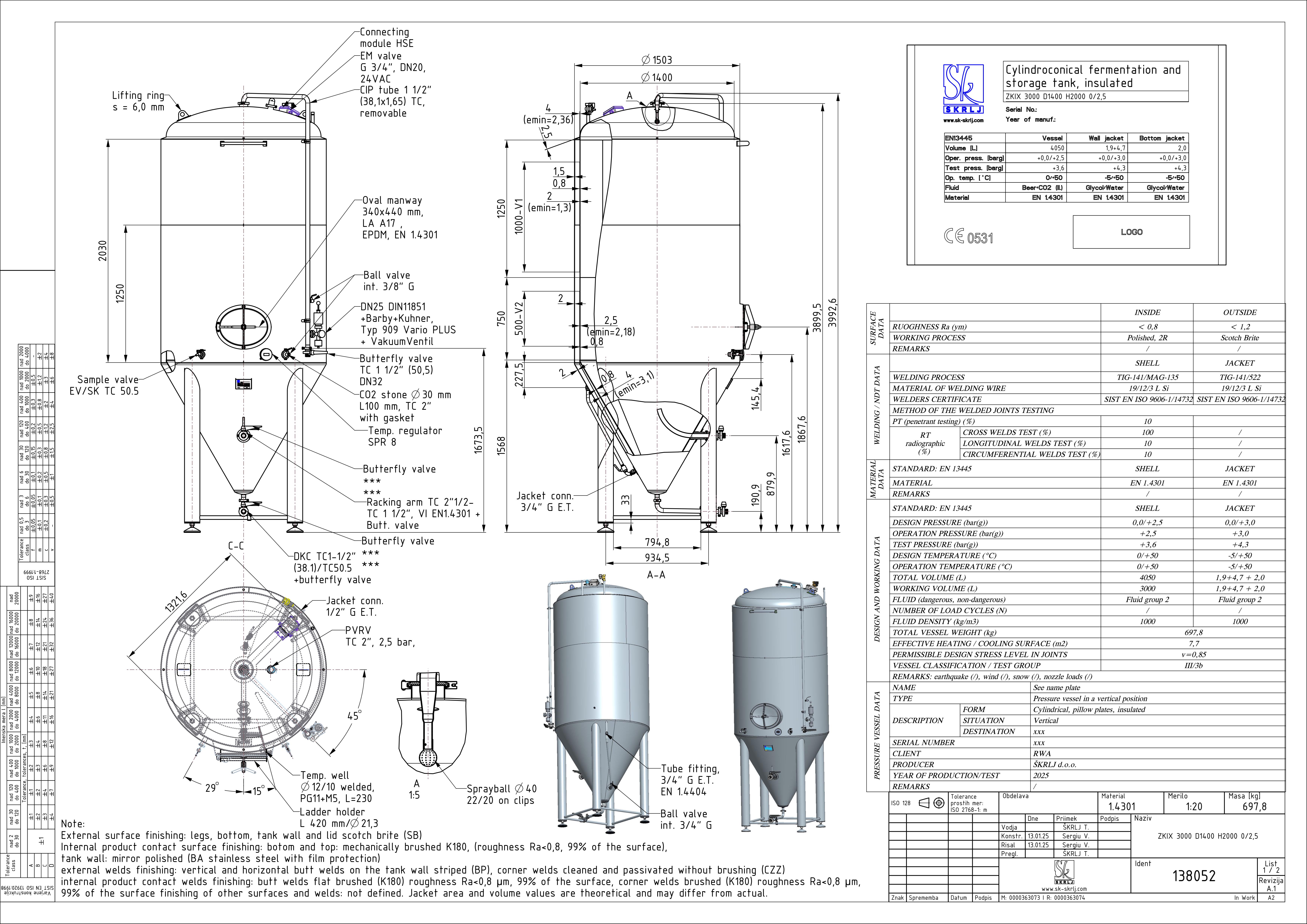

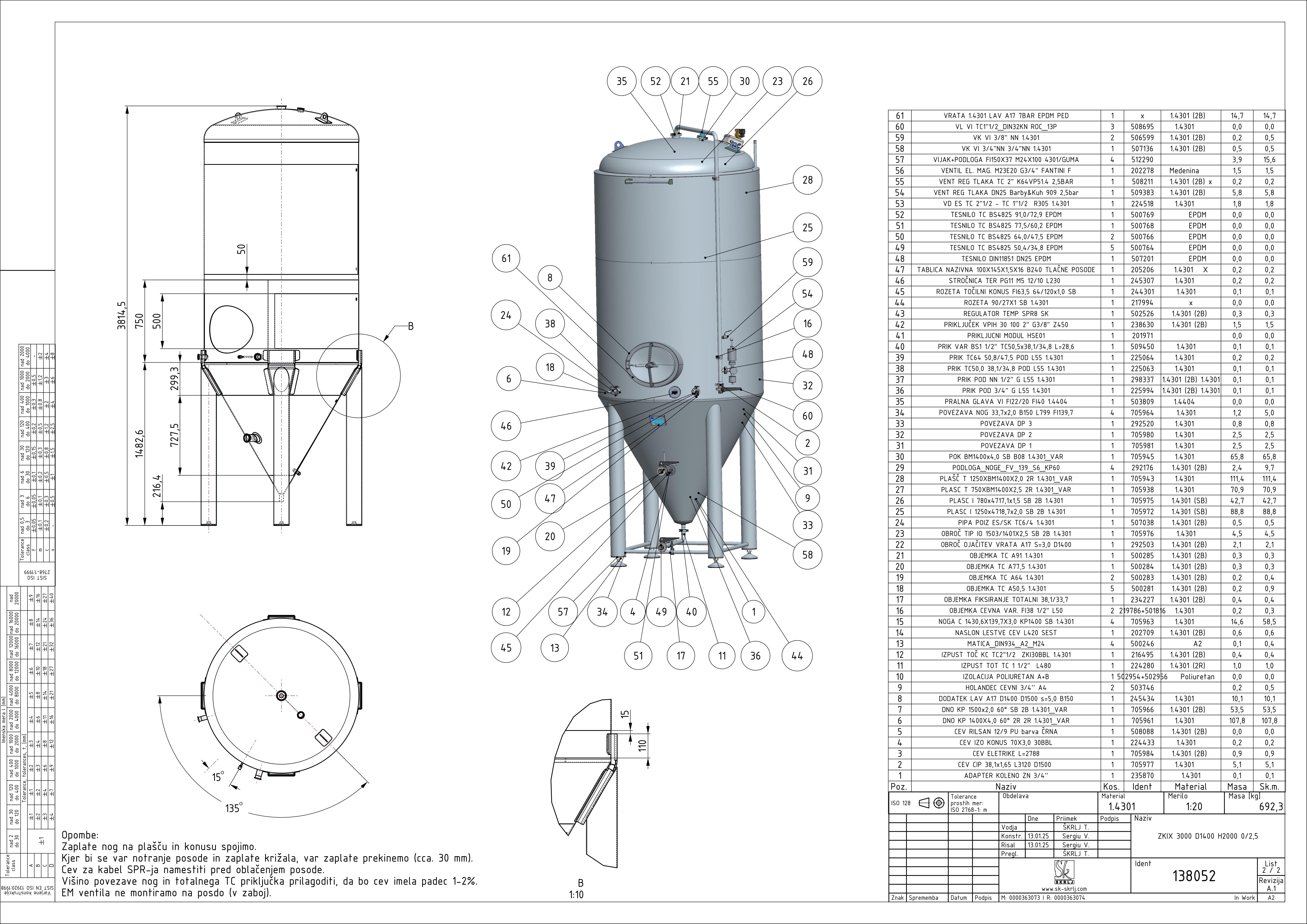

Cylindroconical fermentation and storage tank, insulated
ZKIX 3000 D1400 H2000 0/2,5
Material: 138052
Nominal volume in L: 3000
Geometrical volume [l]: 3997
Internal diameter in mm: 1400
External diameter [mm]: 1500
Jacket height H in mm: 2000
Type: Vertical tank - bottom KC60 - jacket E - lid BM
Min. operating press. [barg]: 0
Max. operating press. [barg]: 2,5
Min. design pressure in barg: 0
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
